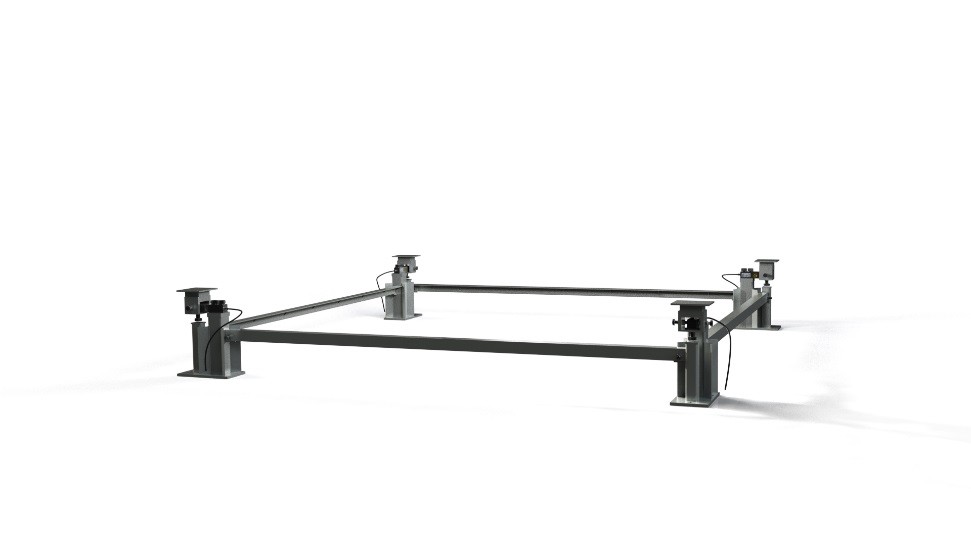

X-Mount System for Tank and Hopper Applications

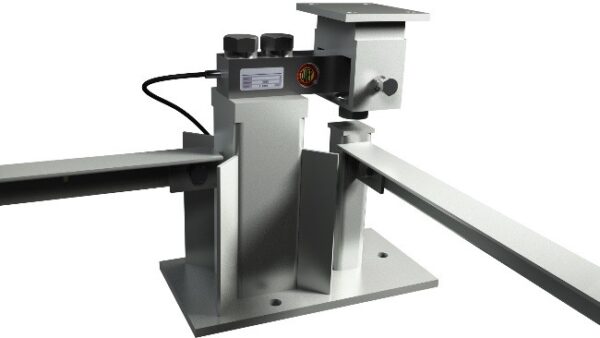

X-Mount System for Tank and Hopper Applications - Image 2

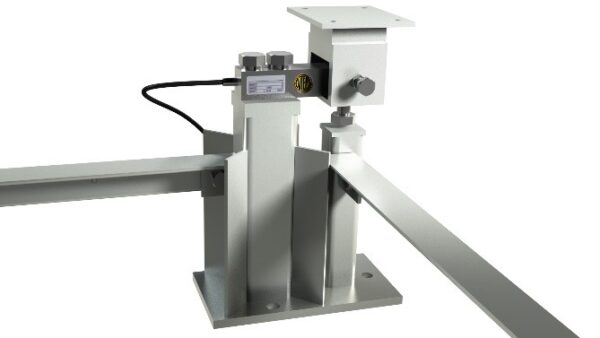

X-Mount System for Tank and Hopper Applications - Image 3

X-Mount System for Tank and Hopper Applications

The X-Mount system is a legal-for-trade tank weighing system for commercial legal-for-trade applications. X-Mount systems are designed as retrofit weighing systems for fertilizer blenders or in industrial, pharmaceutical, or chemical applications. X-Mount systems are each customized to suit your exact size requirements to fit under existing or newly installed tank, hopper, or weighing vessels.

  • Load Introduction via a rocker pin assembly, which acts directly on the neutral zone of the load cell.
  • Side, end, and torsion load effects are eliminated.
  • 100% uplift protection.
  • Adjustable side-to-side checking.
  • Exclusive threaded height adjustment for perfectly balanced loads.
  • Constructed of 304 stainless steel.
  • Customized height of X-mount to eliminate need for riser blocks.
  • Customized length and width to fit specific tank and hopper leg requirements.



SKU: 1228 Category:

Description

Key Highlights & Features

  • Capacities ranging from 1,000 lb. to 75,000 lbs
  • Designed for demanding wash-down or corrosive environments
  • Hermetically sealed loadcell rated to IP68 standards
  • High Accuracy Legal for-Trade Weighing System
  • NTEP Certified – Certificate Number 17-114
  • Technician-friendly with easy installation features

Product Description

The X-Mount system is a legal-for-trade tank weighing system for commercial legal-for-trade applications. X-Mount systems are designed as retrofit weighing systems for fertilizer blenders or in industrial, pharmaceutical, or chemical applications. X-Mount systems are each customized to suit your exact size requirements to fit under existing or newly installed tank, hopper, or weighing vessels.

  • Load Introduction via a rocker pin assembly, which acts directly on the neutral zone of the load cell.
  • Side, end, and torsion load effects are eliminated.
  • 100% uplift protection.
  • Adjustable side-to-side checking.
  • Exclusive threaded height adjustment for perfectly balanced loads.
  • Constructed of 304 stainless steel.
  • Customized height of X-mount to eliminate need for riser blocks.
  • Customized length and width to fit specific tank and hopper leg requirements.



Smart Weighing

Highly Customizable Tank Weighing

  •  Stainless Steel
  •  System can be configured for 3, or 4 legs
  •  Wide range of capacities (1,000 lbs to 72,500 lbs)

...now that's smart weighing

Product Downloads

The following files are available for download for the X-Mount System for Tank and Hopper Applications. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.

To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.

If a save dialogue box does not appear, right click on the link and select save target as.

Files

  X-Mount Brochure X-Mount Brochure

25/04/2024 - 856KB (PDF) file - XMNT-700-250-M04
  X-Mount Datasheet X-Mount Datasheet

25/04/2024 - 524KB (PDF) file - XMNT-702-200
