T20 – Low Profile Assembly for Vessel Weighing

T20 – Low Profile Assembly for Vessel Weighing

Capacities: 1t – 30t

The T20 Weighing Assembly is specifically designed as a reliable, simple, low cost solution for weighing of  tanks, silos and vessels where ‘level measurement’ is the main requirement. It offers an excellent compromise between accuracy and cost.

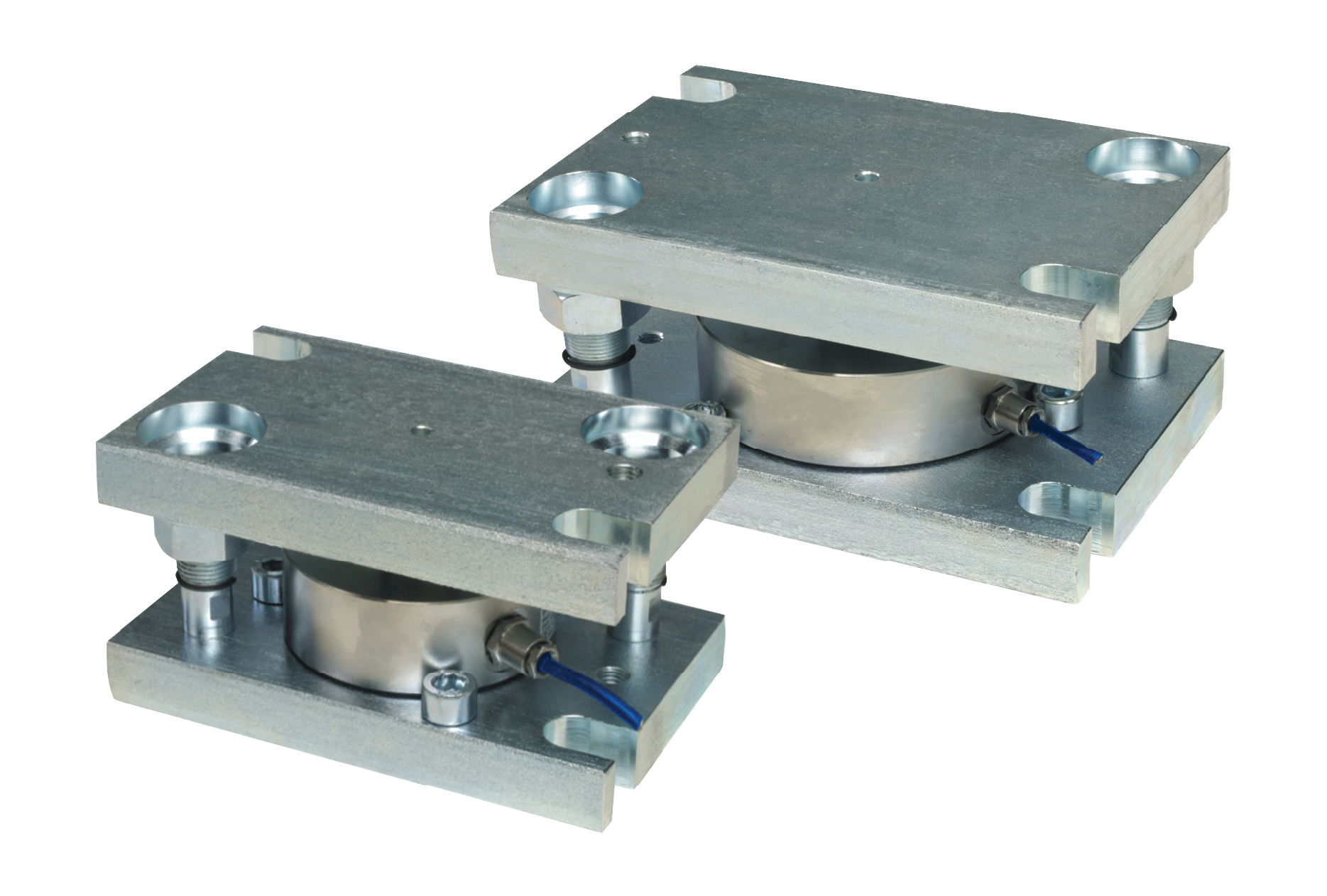

The stainless steel T20 load cell is mounted in either a zinc plated or stainless steel, compact LA20 mounting accessory that has integral jacking bolts to allow for load cell installation and removal, lift-off prevention and allowance for the angular misalignment that is often present in silos or other metal structures. The LA20 accessory incorporates a hardened alloy steel or stainless steel load bearing surface, for optimum force application to the T20 load cell.

The design is suitable for use either as a totally live system with load cells under all legs/support points of the vessel or – where cost is critical – as a dummy system with either one live and two dummy cells (total 3 cells) or two live and two dummy cells (total 4 cells).

SKU: 50124 Category:

Description

Key Highlights & Features

  • 1000d accuracy
  • Allowance for angular mis-alignment
  • Allows vessel expansion and contraction
  • Fully welded and hemetically sealed to IP68 + IP69K
  • Integral jacking facility and lift off prevention
  • Low profile, extremely compact loading assembly
  • Stainless steel compression load sensor

Product Description

Capacities: 1t - 30t

The T20 Weighing Assembly is specifically designed as a reliable, simple, low cost solution for weighing of  tanks, silos and vessels where ‘level measurement’ is the main requirement. It offers an excellent compromise between accuracy and cost.

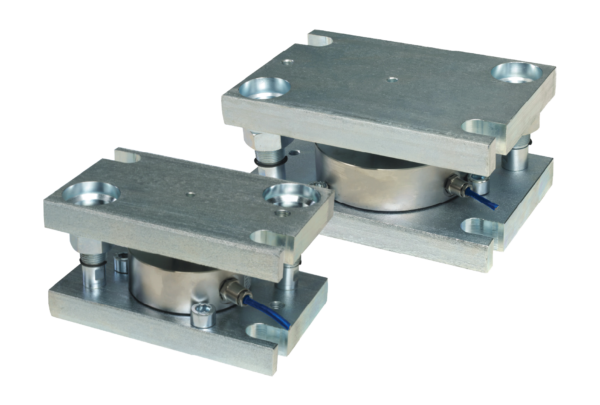

The stainless steel T20 load cell is mounted in either a zinc plated or stainless steel, compact LA20 mounting accessory that has integral jacking bolts to allow for load cell installation and removal, lift-off prevention and allowance for the angular misalignment that is often present in silos or other metal structures. The LA20 accessory incorporates a hardened alloy steel or stainless steel load bearing surface, for optimum force application to the T20 load cell.

The design is suitable for use either as a totally live system with load cells under all legs/support points of the vessel or – where cost is critical – as a dummy system with either one live and two dummy cells (total 3 cells) or two live and two dummy cells (total 4 cells).

Smart Weighing

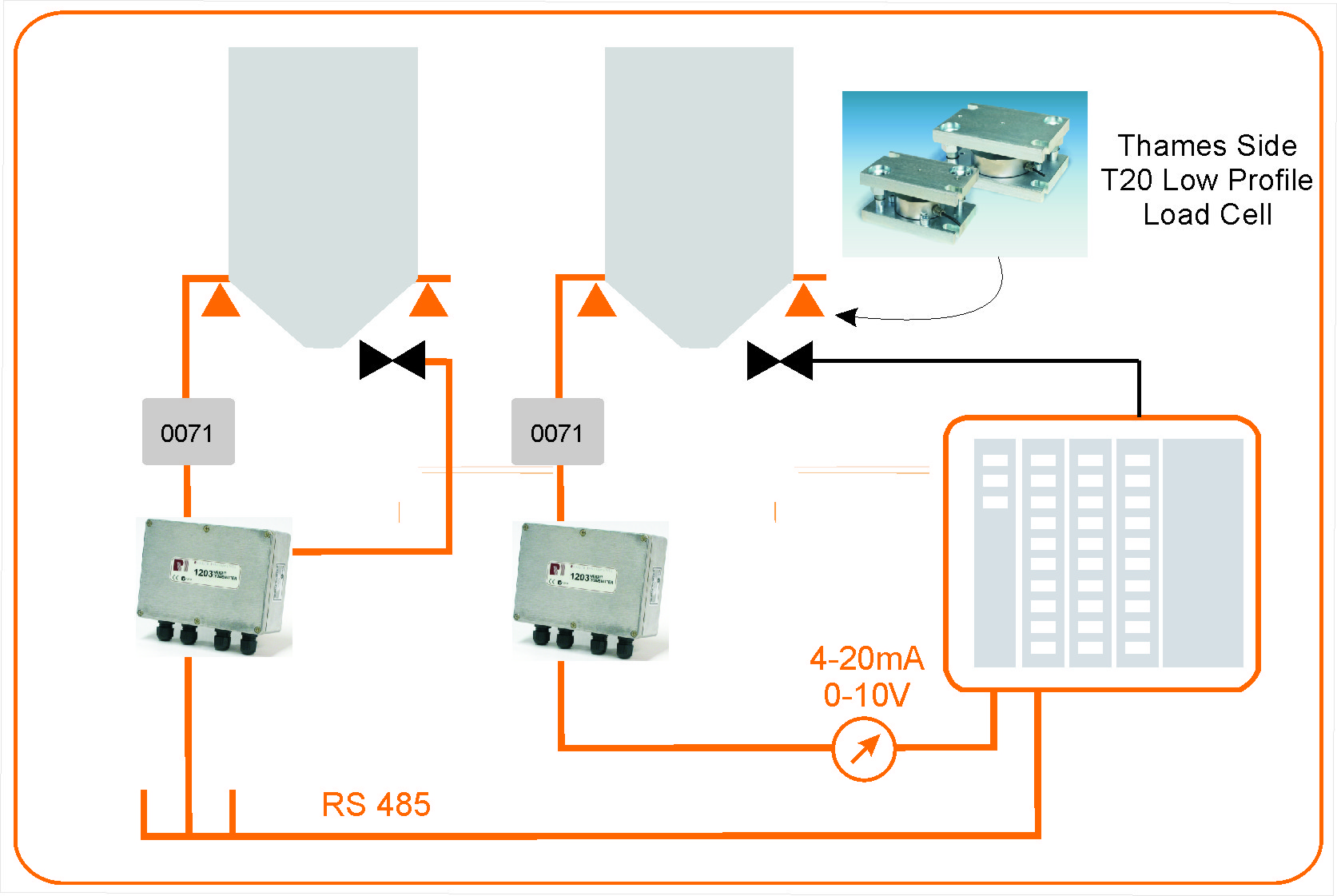

T20 with a 1203 for economical tank weighing

 Thames Side T20 low profile load cell and assembly:

  • low profile stainless steel load cell
  • stainless or zinc plated assemble

1203 Weight Transmitter:

  • economial and robust housing
  • connect back to a PLC or PC using 4-20mA Analogue, RS232 or RS485, all of which come standard.

now that's smart weighing

Product Downloads

The following files are available for download for the T20 - Low Profile Assembly for Vessel Weighing. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.

To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.

If a save dialogue box does not appear, right click on the link and select save target as.

Files

  T20 Datasheet T20 Datasheet

18/03/2022 - 737KB (PDF) file - T20 Datasheet
