R420-K481 and R423-K481

The K481 Summing Indicator is based on the R400 Series indicator hardware. It shares the same style operator interface and setup menus making it easy for both the operator and the installer. The K481 can sum both R300 Series and R400 Series indicators.

Sum Nine (9) Slave Units: The K481 can sum up to nine slave indicators from either the R300 or R400 range. These can be connected together on a multi-drop serial RS485 bus or RS232 ring network. The summing indicator polls each of the slave units summing all of the weight readings, and displays the resulting total weight.

Four (4) Subtotals: Up to 4 subtotals can be defined to add or subtract slave values. Each subtotal can be named to assist the operator and for custom printing.

Two IP65 housing types: R420 (ABS) and R423 (stainless steel) each with a high impact polycarbonate lens to protect the LCD from knocks.

Support for R400 Series Modules and Accessories: The K481 uses the R400 series Accessories and supports many of the R400 series modules: additional communications modules, button module, input/output modules and analogue module.

Applications: multiple deck weigh bridges, car balancing systems, aircraft weighing, medical bed weighing applications and shipyard centre of gravity ballast determination.

…now that’s smart weighing

SKU: 1046 Category:

Description

Key Highlights & Features

  • Built in serial ports
  • Complies to Technical Schedule S1/0/A
  • Subtotal can add or subtract slave values
  • Sum R300 indicators
  • Sum R400 indicators
  • Up to 4 subtotals
  • Up to 9 slave units

Product Description

The K481 Summing Indicator is based on the R400 Series indicator hardware. It shares the same style operator interface and setup menus making it easy for both the operator and the installer. The K481 can sum both R300 Series and R400 Series indicators.

Sum Nine (9) Slave Units: The K481 can sum up to nine slave indicators from either the R300 or R400 range. These can be connected together on a multi-drop serial RS485 bus or RS232 ring network. The summing indicator polls each of the slave units summing all of the weight readings, and displays the resulting total weight.

Four (4) Subtotals: Up to 4 subtotals can be defined to add or subtract slave values. Each subtotal can be named to assist the operator and for custom printing.

Two IP65 housing types: R420 (ABS) and R423 (stainless steel) each with a high impact polycarbonate lens to protect the LCD from knocks.

Support for R400 Series Modules and Accessories: The K481 uses the R400 series Accessories and supports many of the R400 series modules: additional communications modules, button module, input/output modules and analogue module.

Applications: multiple deck weigh bridges, car balancing systems, aircraft weighing, medical bed weighing applications and shipyard centre of gravity ballast determination.

...now that's smart weighing

Smart Weighing

Designed to support applications where balance or relative weight is important.

Up to 4 subtotals can be defined - these subtotals can add or subtract slave weight values.

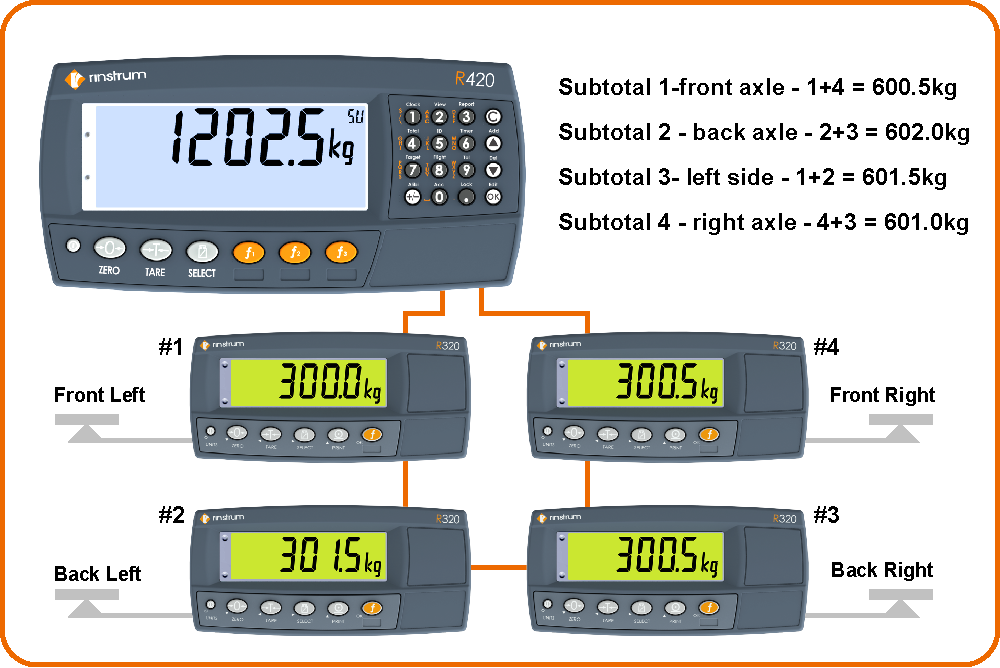

Car Balancing Scenario four subtotals are defined:

  • Front Axle = 1+4
  • Back Axle = 2+3
  • Left Side = 1+2
  • Right Side = 3+4

..now that's smart weighing.

Product Downloads

The following files are available for download for the R420-K481 and R423-K481. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.

To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.

If a save dialogue box does not appear, right click on the link and select save target as.

Files

   K481 Operators Manual K481 Operators Manual

15/10/2018 - 3MB (PDF) file - R400-624-111

   K481 Reference Manual K481 Reference Manual

15/10/2018 - 7MB (PDF) file - R400-623-140

  Application Note K481 Car Balancing Application Note K481 Car Balancing

15/10/2018 - 463KB (PDF) file - R400-712-100

  Application Note K481 Multi Deck Bridge Application Note K481 Multi Deck Bridge

15/10/2018 - 775KB (PDF) file - R400-711-100

  Brochure R420 Brochure R420

15/10/2018 - 1MB (PDF) file - R400-764-100

  Brochure R423 Brochure R423

15/10/2018 - 1MB (PDF) file - R400-765-100

  Indicator Function Comparison Matrix Indicator Function Comparison Matrix

12/11/2018 - 193KB (PDF) file - SALES-749-280

  K481 Quick Start Manual K481 Quick Start Manual

15/10/2018 - 513KB (PDF) file - R400-625-120

  R400 K481 Software R400 K481 Software

01/11/2018 - 499KB (ZIP) file - R400-525-113

  R400 K481 Summing Software V2.2+ R400 K481 Summing Software V2.2+

01/11/2018 - 515KB (ZIP) file - R400-531-232

  R400 Series K481 Data Sheet R400 Series K481 Data Sheet

15/11/2018 - 431KB (PDF) file - R400-702-433-M08

Reviews

There are no reviews yet.

Be the first to review “R420-K481 and R423-K481”
