R420, R423 and R427 – K404 Firmware

The K404 is designed specifically for truck weighing. It allows for a range of operational scenarios all in one setup, from weigh-in/weigh-out to stored truck ids. The dedicated Truck ID button and Print button simplify the operator interface. Additionally the alpha-numeric keypad allows for easy entry of tare weight and Truck IDs. With 250 Truck IDs available it is suitable for applications with truck fleets of up to 250.

The following operational scenarios can all be handled on the one setup:

  • Print the weight of the truck on the scale
  • Weigh a truck in a single pass using its tare weight
  • Weigh a known truck with a stored Truck ID and preset tare and accumulate the statistics on that truck ID.
  • Two pass weighing with a weigh in followed by a weigh out. The ticket will show time/date weigh-in, weigh-out and net weights.
  • Automatic temporary Truck ID to simplify weigh-in/weigh-out for fast weighing throughput. The temporary Truck ID is removed once the weigh-out is complete.

R400 Indicators are ideal for weigh bridges:

  • Isolated communication modules for excellent protection against lightning
  • All accessory modules, including the power supply, can be swapped without recalibration.
  • Indicator configuration and setup can be reused and easily uploaded using the opto-link on the front panel.
  • Pre-calibration using mV/V saving time on full calibration
SKU: 1063 Category:

Description

Key Highlights & Features

  • 250 Truck IDs (Products)
  • Alpha-numeric Truck ID names
  • Drive up to 16x350ohm load cells
  • Preset Tare and accumulation data on each Truck ID
  • Programmable printing
  • Simple two button operation
  • Single and two pass weighing

Product Description

The K404 is designed specifically for truck weighing. It allows for a range of operational scenarios all in one setup, from weigh-in/weigh-out to stored truck ids. The dedicated Truck ID button and Print button simplify the operator interface. Additionally the alpha-numeric keypad allows for easy entry of tare weight and Truck IDs. With 250 Truck IDs available it is suitable for applications with truck fleets of up to 250.

The following operational scenarios can all be handled on the one setup:

  • Print the weight of the truck on the scale
  • Weigh a truck in a single pass using its tare weight
  • Weigh a known truck with a stored Truck ID and preset tare and accumulate the statistics on that truck ID.
  • Two pass weighing with a weigh in followed by a weigh out. The ticket will show time/date weigh-in, weigh-out and net weights.
  • Automatic temporary Truck ID to simplify weigh-in/weigh-out for fast weighing throughput. The temporary Truck ID is removed once the weigh-out is complete.

R400 Indicators are ideal for weigh bridges:

  • Isolated communication modules for excellent protection against lightning
  • All accessory modules, including the power supply, can be swapped without recalibration.
  • Indicator configuration and setup can be reused and easily uploaded using the opto-link on the front panel.
  • Pre-calibration using mV/V saving time on full calibration

Smart Weighing

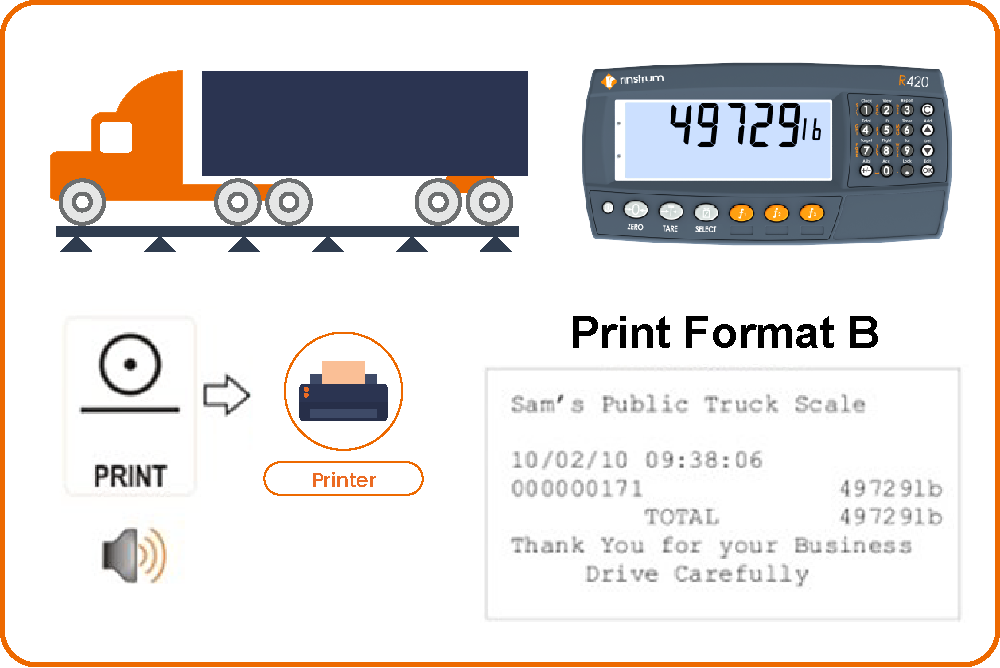

Dedicated Truck Weighing Interface

The K404 operation builds on years of experience working with specialist truck scale manufactures to streamline weigh bridge operation and simplify the operator experience.
  •   Simple two button operation Truck ID and Print
  •  Automatic temporary truck ID assigned if permanent ID isn't required
  • Single pass or two pass weighing with same set up.

..now that's smart weighing.

Product Downloads

The following files are available for download for the R420, R423 and R427 - K404 Firmware. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.

To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.

If a save dialogue box does not appear, right click on the link and select save target as.

Files

  Brochure R420 Brochure R420

15/10/2018 - 1MB (PDF) file - R400-764-100

  Indicator Function Comparison Matrix Indicator Function Comparison Matrix

12/11/2018 - 193KB (PDF) file - SALES-749-280

  Operator Manual Operator Manual

15/10/2018 - 3MB (PDF) file - R400-647-100

  Quick Start Manual Quick Start Manual

15/10/2018 - 609KB (PDF) file - R400-648-100

  R400 Series – K404 Truck Weighing – Data Sheet R400 Series – K404 Truck Weighing – Data Sheet

10/09/2019 - 741KB (PDF) file - R400-702-440-M05

  R420 K404 software R420 K404 software

02/01/2019 - 515KB (ZIP) file - R400-533-231

  R423, R427 Brochure R423, R427 Brochure

11/09/2019 - 1MB (PDF) file - R400-765-111-M04

  Reference Manual Reference Manual

13/12/2018 - 8MB (PDF) file - R400-646-113
