R420, R423 and R427 – K402 Firmware

The K402 adds multiple-product configuration to the K401, making it ideal for applications where there are a variety of products that have fixed attributes that need to be recalled.

Powerful product configuration allows for parameters to be stored for each product. For each product the following can be stored:

  • set point target (up to 8 per product)
  • piece weight
  • units conversions
  • full accumulation data

Products can be recalled easily by the operator by using the product name – either select from the most recently used 10 products or use an alphanumeric product search via the keypad. Product selection via an external thumb-wheel is also supported.

Counting is made easy with either the piece weight is entered or determined through a sample. This piece weight can then be stored against the product id.

Multi-segment display assists the operator for piece weight counting by displaying the number of pieces on the primary line and the piece weight on the secondary line.

SKU: 1010 Category:

Description

Key Highlights & Features

  • 250 Product storage
  • Counting with piece weight entry
  • Custom printing
  • Custom unit switching
  • Reporting
  • Set pointing configured on a product basis

Product Description

The K402 adds multiple-product configuration to the K401, making it ideal for applications where there are a variety of products that have fixed attributes that need to be recalled.

Powerful product configuration allows for parameters to be stored for each product. For each product the following can be stored:

  • set point target (up to 8 per product)
  • piece weight
  • units conversions
  • full accumulation data

Products can be recalled easily by the operator by using the product name - either select from the most recently used 10 products or use an alphanumeric product search via the keypad. Product selection via an external thumb-wheel is also supported.

Counting is made easy with either the piece weight is entered or determined through a sample. This piece weight can then be stored against the product id.

Multi-segment display assists the operator for piece weight counting by displaying the number of pieces on the primary line and the piece weight on the secondary line.

Smart Weighing

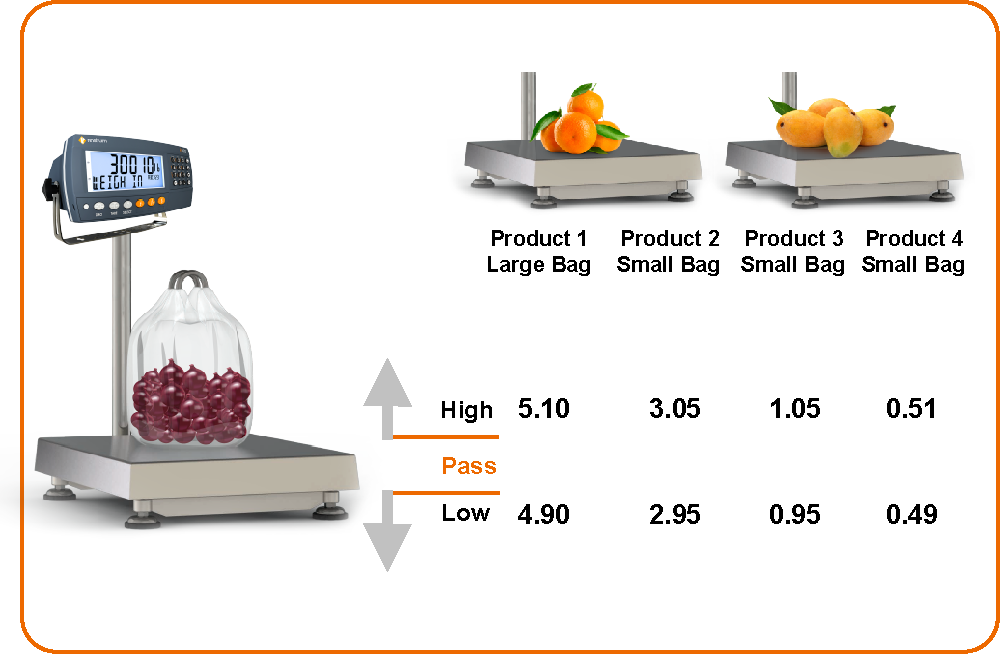

Powerful Product Configuration
  • Database of up to 250 complete sets of product parameters
  • Combine with logic set points for pass band where the weight is between two targets
  • Combine with custom printing functionality to print product subtotals and product names
  • Select products using the keyboard or use external inputs from switch contacts (eg. thumb wheel)

 ..now that\'s smart weighing.

Product Downloads

The following files are available for download for the R420, R423 and R427 - K402 Firmware. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.

To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.

If a save dialogue box does not appear, right click on the link and select save target as.

Files

  Application Note Custom Print K402/K401 Application Note Custom Print K402/K401

15/10/2018 - 299KB (PDF) file - R400-716-200

  Application Note K402 Single Deck Weigh Bridge Application Note K402 Single Deck Weigh Bridge

15/10/2018 - 230KB (PDF) file - R400-714-100

  Brochure R420 Brochure R420

15/10/2018 - 1MB (PDF) file - R400-764-100

  Indicator Function Comparison Matrix Indicator Function Comparison Matrix

12/11/2018 - 193KB (PDF) file - SALES-749-280

  R400 Series – K402 – Data Sheet R400 Series – K402 – Data Sheet

10/09/2019 - 692KB (PDF) file - R400-702-440-M04

  R420 K402 software R420 K402 software

15/10/2018 - 511KB (ZIP) file - R400-503-150

  R420 K402 software V2.2+ R420 K402 software V2.2+

29/08/2019 - 535KB (ZIP) file - R400-522-267

  R423, R427 Brochure R423, R427 Brochure

11/09/2019 - 1MB (PDF) file - R400-765-110-M04

  Reference Manual Reference Manual

13/12/2018 - 12MB (PDF) file - R400-600-230
