The K401 is a general purpose indicator suitable for weigh bridges, general trade weighing, multiple indicator weighing systems and process control. The Scale Entry/Exist features make the K401 ideal for unmanned weigh bridges.

Programmable printing for customized dockets and reports can support two separate printers
  • Comprehensive print tokens allow for all instrument data to be printed in a variety of formats
  • Custom print strings can be assigned to multiple instrument events, for example long and short press of a print key.
Custom Unit Switching allows for complete flexibility
  • programme for standard weight units (kg, lb, t etc) or
  • define alternative weighing units for your application (litres or force for example)
Flexible set point configuration for improved system integration. A set point can be individually configured to instrument status or weight target triggers. Each set point can be:
  • Independently configured for a given function
  • Associated with a given output
  • Configured for high or low logic
  • Defined to use a given weight source – Gross, Net, Alternate Units or Piece count

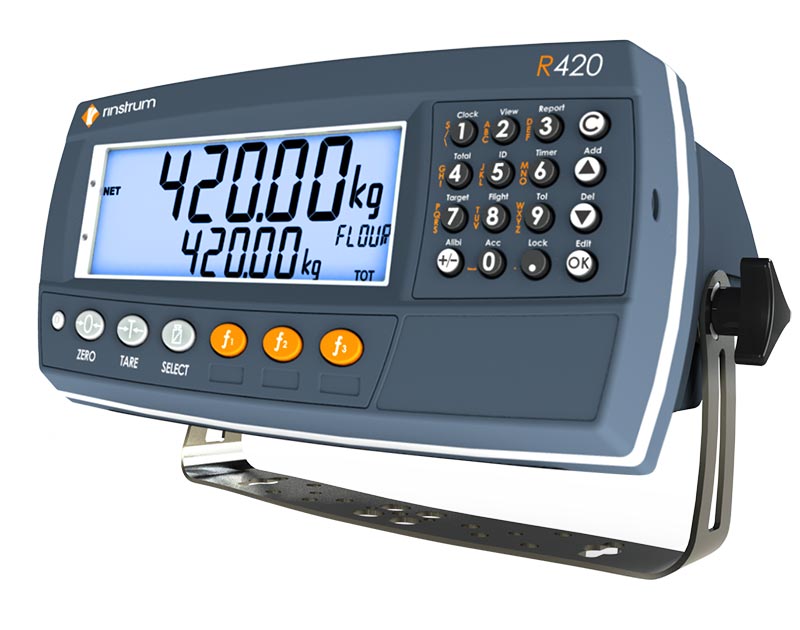

The large multi-line display assists the operator by displaying current weight and total weight and product name.



SKU: 50085 Category:

Description

Key Highlights & Features

  • Counting with piece weight entry
  • Custom printing
  • Custom unit switching
  • PLC integration
  • Reporting
  • Set pointing

Product Description

The K401 is a general purpose indicator suitable for weigh bridges, general trade weighing, multiple indicator weighing systems and process control. The Scale Entry/Exist features make the K401 ideal for unmanned weigh bridges.

Programmable printing for customized dockets and reports can support two separate printers
  • Comprehensive print tokens allow for all instrument data to be printed in a variety of formats
  • Custom print strings can be assigned to multiple instrument events, for example long and short press of a print key.
Custom Unit Switching allows for complete flexibility
  • programme for standard weight units (kg, lb, t etc) or
  • define alternative weighing units for your application (litres or force for example)
Flexible set point configuration for improved system integration. A set point can be individually configured to instrument status or weight target triggers. Each set point can be:
  • Independently configured for a given function
  • Associated with a given output
  • Configured for high or low logic
  • Defined to use a given weight source - Gross, Net, Alternate Units or Piece count
The large multi-line display assists the operator by displaying current weight and total weight and product name.



Smart Weighing

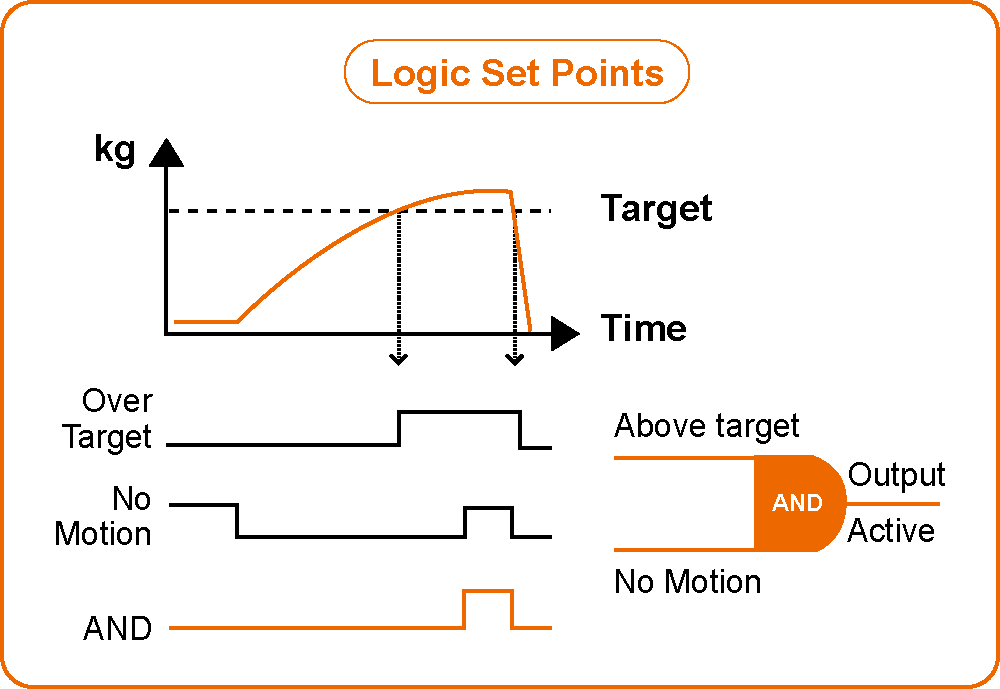

R400 Logic set points are based on the status of the inputs and the defined mask that is used to match IO1-IO24 for the logic set points.

  •  AND logic set point active when all inputs in mask are on.
  • OR logic set point active when any inputs in mask are on.
  • XOR logic set point active when only one input in mask is on.
For applications that require a combination of multiple conditions eg.
  •  An output that is only to be active when weight is above target and stable.
  •  Pass band: weigh is between two targets

...now that's smart weighing!

Product Downloads

The following files are available for download for the R420, R423 and R427 - K401 Firmware. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.

To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.

If a save dialogue box does not appear, right click on the link and select save target as.

Files

  Application Note Custom Print K402/K401 Application Note Custom Print K402/K401

15/10/2018 - 299KB (PDF) file - R400-716-200
  Application Note R42x-K401 Single Deck Weigh Bridge Application Note R42x-K401 Single Deck Weigh Bridge

29/04/2021 - 413KB (PDF) file - R400-714-200
  Indicator Function Comparison Matrix - Rest of World Version Indicator Function Comparison Matrix - Rest of World Version

13/08/2024 - 437KB (PDF) file - SALES-749-294-M01
  Indicator Function Comparison Matrix - US Version Indicator Function Comparison Matrix - US Version

13/08/2024 - 387KB (PDF) file - SALES-749-294-M02
  Operator Manual Operator Manual

15/10/2018 - 5MB (PDF) file - R400-601-180
  Quick Start Manual Quick Start Manual

15/10/2018 - 467KB (PDF) file - R400-602-181
  R400 K401 Software for V1 Hardware R400 K401 Software for V1 Hardware

01/30/2021 - 511KB (ZIP) file - R400-513-150-M02
  R400 K401 Software for V2 Hardware R400 K401 Software for V2 Hardware

14/10/2024 - 535KB (ZIP) file - R400-526-273-M02
  R400 Series Brochure - R420 R400 Series Brochure - R420

13/08/2024 - 2MB (PDF) file - R400-764-251-M02
  R400 Series Brochure - R423/ R427 R400 Series Brochure - R423/ R427

13/08/2024 - 2MB (PDF) file - R400-765-251-M02
  R400 Series Data Sheet - K401 R400 Series Data Sheet - K401

14/08/2024 - 594KB (PDF) file - R400-702-450-M01-K401
  Reference Manual Reference Manual

13/12/2018 - 12MB (PDF) file - R400-600-230
