R325 Luggage Weighing Indicator

The R300 series of indicators builds on over 15 years of design experience to create an ideal solution for baggage handling applications, the R325 features:

  • Slim line panel mounting on the counter
  • Dedicated luggage functions including number of bags and total weight summing.
  • Combined with D323 remote display for complete luggage handling systems

The dedicated luggage-weighing functionality allows for easy monitoring of both the total weight summing and the number of bags to ensure preset bag numbers and weight limits are not exceeded.

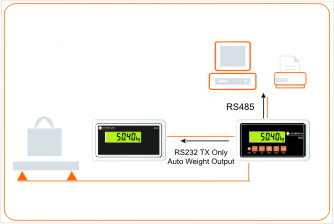

This luggage information can be transmitted to a remote display (D323) for passenger viewing. Printing or computer network communications are provided via the RS485 port.

Dedicated key pad functions increase input capabilities and decreases the chance of operator error. Pre-determined bag and total weight limits prevent excess luggage weights being accepted by the operator.

Features include:

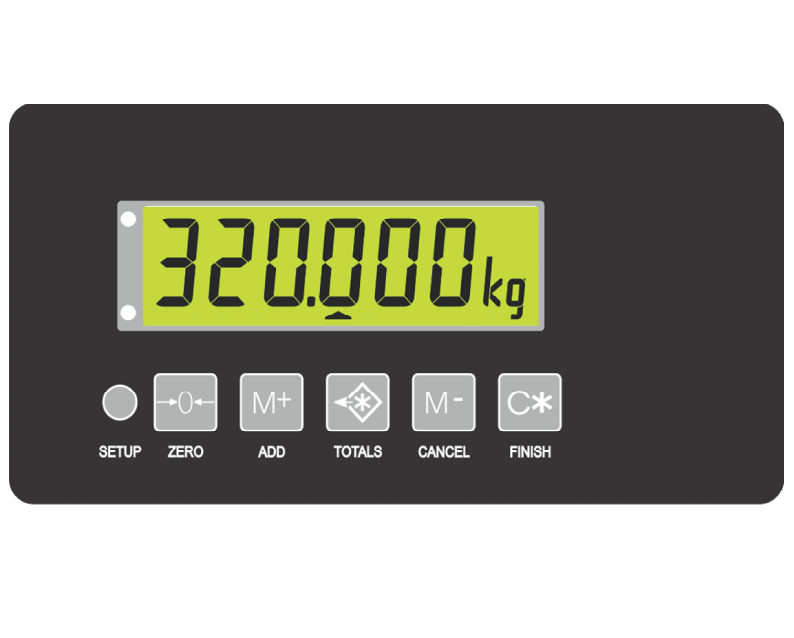

  • Function Keys: Add/Totals/Cancel/Finish
  • Totalising
  • Configurable Printing
  • Built in serial communications (RS232/RS485) to a remote display and PC or printer.
  • Set point function

Opto-link magnetically coupled link on front fascia for easy access in situ for updates/setup of the indicator, saving the installer time and effort.

IP65 rated housings: Dust and water tight, increasing reliability and indicator life time.

SKU: 1089 Category:

Description

Key Highlights & Features

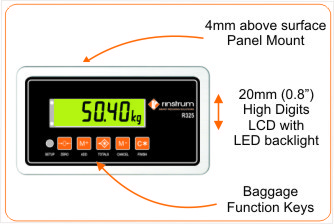

  • 20mm (0.8in) LCD display with LED backlight
  • 7 to 24VDC power supply
  • rinLINK connector
  • Stainless Steel Panel Mount
  • Trade Approved Australia/Europe

Product Description

The R300 series of indicators builds on over 15 years of design experience to create an ideal solution for baggage handling applications, the R325 features:

  • Slim line panel mounting on the counter
  • Dedicated luggage functions including number of bags and total weight summing.
  • Combined with D323 remote display for complete luggage handling systems

The dedicated luggage-weighing functionality allows for easy monitoring of both the total weight summing and the number of bags to ensure preset bag numbers and weight limits are not exceeded.
This luggage information can be transmitted to a remote display (D323) for passenger viewing. Printing or computer network communications are provided via the RS485 port.

Dedicated key pad functions increase input capabilities and decreases the chance of operator error. Pre-determined bag and total weight limits prevent excess luggage weights being accepted by the operator.

Features include:

  • Function Keys: Add/Totals/Cancel/Finish
  • Totalising
  • Configurable Printing
  • Built in serial communications (RS232/RS485) to a remote display and PC or printer.
  • Set point function

Opto-link magnetically coupled link on front fascia for easy access in situ for updates/setup of the indicator, saving the installer time and effort.

IP65 rated housings: Dust and water tight, increasing reliability and indicator life time.

Smart Weighing

  • Slim line panel mounting indicator and remote display
  • Dedicated luggage functions including number of bags and total weight summing.
  • Built in communications.
  • Simple operator interface with dedicated key functions
  • Engineered and built to last

  ..now that's smart weighing

Product Downloads

The following files are available for download for the R325 Luggage Weighing Indicator. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.

To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.

If a save dialogue box does not appear, right click on the link and select save target as.

Files

  Data sheet R325 Luggage Data sheet R325 Luggage

12/11/2018 - 60KB (PDF) file - R300-746-100

  R325 Software R325 Software

12/11/2018 - 414KB (ZIP) file - A325-500-300

  Reference Manual Luggage Weigher Reference Manual Luggage Weigher

12/11/2018 - 2MB (PDF) file - R300-640-103
