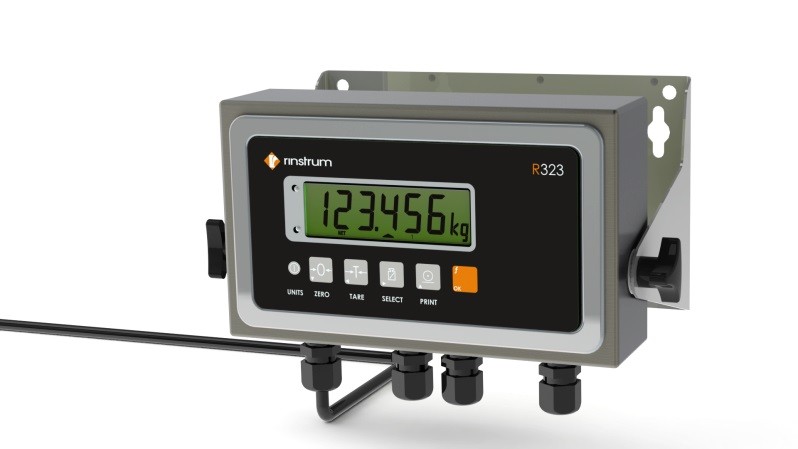

R323 Classic Stainless Steel Indicators

R323 Classic Stainless Steel Indicators

The R300 series of indicators builds on over 15 years of design experience to create a series of cost effective reliable products that are ideal for use in mobile applications such as forklifts, platforms, inside truck cabs, crane scales and OEM applications. The R323 classic is available in AC and battery versions.

– Wide DC operation (7-24V) to suit a variety of onboard OEM applications. Eliminates the need for third party power supplies saving on system complexity and cost.

– Long life rechargeable battery options ideal for mobile installations allowing for operator flexibility.

– rinLINK magnetically coupled link on front fascia for easy access in situ for updates/setup of the indicator, saving the installer time and effort.

– IP65 rated housing: Dust and water tight, increasing reliability and indicator life time.

– Trade approved in Australia, Europe and USA. Products are export ready with approved componentry.

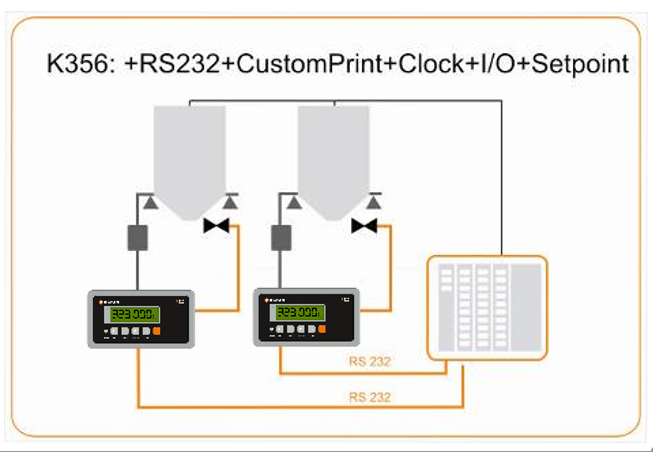

The R323 supports a range of firmware options from most  basic functionality (K342) through to full  set points functionality and custom printing at the top end (K356).

K356 Cross Grades: Certain features are specifically available in the cross graded versions of K356 firmware, see table below for feature set. These can be downloaded below and it will not require a passcode.

Firmware Version K342 K344 K346 K354 K356 K356-C1 K356-C2 K356-C3 K356-C4
Print (Serial RS232) Basic Advanced K356 Cross Grades
Counting C S
Manual Hold S S S C S S S
Peak Hold C S S
totalization S S S S S S
Medical Tare C S
Ring Network S S S S S S S S
Bluetooth Accessory A A A A A A A A
Remote Input 1 1 1 1 1 1
Clock Calendar S S S S S S
Set Point Outputs 2 2 2 2
Units lb/ kg Switching S S S S S S S S S
Units lb/ kg/ oz/ g Switching S S S S S S S S S
Gravity Compensation S S S S
Linearisation S S S
Animal Weighing C S
Quick Calibration S S S S S S S S S
S – Standard Accessory A – Optional Accessory ^ – Basic Over/ Under Setpoints ^^ – Advanced Set Points
C – Cross Grade C1 – K356-PEAK C2 – K356-LIVE C3 – K356-COUNT
C4 – K356-MED
SKU: 50125 Category:

Description

Key Highlights & Features

  • 20mm (0.8in) LCD display with LED backlight
  • AC, DC, Battery options
  • IP65 rated housing
  • rinLINK connector
  • Stainless Steel housing
  • Trade Approved Australia/Europe/USA

Product Description

The R300 series of indicators builds on over 15 years of design experience to create a series of cost effective reliable products that are ideal for use in mobile applications such as forklifts, platforms, inside truck cabs, crane scales and OEM applications. The R323 classic is available in AC and battery versions.

- Wide DC operation (7-24V) to suit a variety of onboard OEM applications. Eliminates the need for third party power supplies saving on system complexity and cost.

- Long life rechargeable battery options ideal for mobile installations allowing for operator flexibility.

- rinLINK magnetically coupled link on front fascia for easy access in situ for updates/setup of the indicator, saving the installer time and effort.

- IP65 rated housing: Dust and water tight, increasing reliability and indicator life time.

- Trade approved in Australia, Europe and USA. Products are export ready with approved componentry.

The R323 supports a range of firmware options from most  basic functionality (K342) through to full  set points functionality and custom printing at the top end (K356).

K356 Cross Grades: Certain features are specifically available in the cross graded versions of K356 firmware, see table below for feature set. These can be downloaded below and it will not require a passcode.

Firmware Version K342 K344 K346 K354 K356 K356-C1 K356-C2 K356-C3 K356-C4
Print (Serial RS232) - Basic Advanced K356 Cross Grades
Counting - - - - C - - S -
Manual Hold S S S - C S S - S
Peak Hold - - - - C S - - S
totalization - - - S S S S S S
Medical Tare - - - - C - - S -
Ring Network - S S S S S S S S
Bluetooth Accessory - A A A A A A A A
Remote Input - - - 1 1 1 1 1 1
Clock Calendar - - - S S S S S S
Set Point Outputs - - 2 2 2 2 - - -
Units lb/ kg Switching S S S S S S S S S
Units lb/ kg/ oz/ g Switching S S S S S S S S S
Gravity Compensation - - - S S - - S S
Linearisation S S S - - - - - -
Animal Weighing - - - - C - S - -
Quick Calibration S S S S S S S S S
S - Standard Accessory A - Optional Accessory ^ - Basic Over/ Under Setpoints ^^ - Advanced Set Points
C – Cross Grade C1 – K356-PEAK C2 – K356-LIVE C3 – K356-COUNT
C4 – K356-MED

Smart Weighing

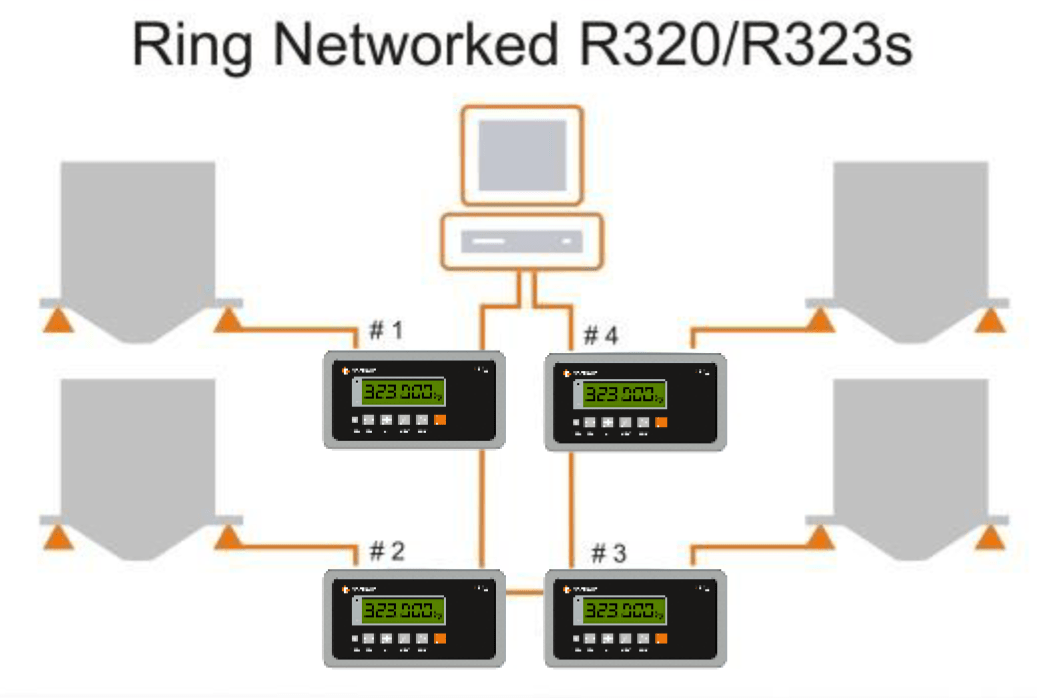

Ring networking

  • Connect up to 31 indicators in a ring network
  •  Save on cabling
  •  Single interface back to the master PC

...now that's smart weighing

Product Downloads

The following files are available for download for the R323 Classic Stainless Steel Indicators. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.

To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.

If a save dialogue box does not appear, right click on the link and select save target as.

Files

   R320 K342 Basic Software R320 K342 Basic Software

05/12/2022 - 413KB (ZIP) file - R300-546-451

   R320 K346 Basic Software R320 K346 Basic Software

27/02/2023 - 414KB (ZIP) file - R300-548-451

  Application Note - Indicator to Remote Display Application Note - Indicator to Remote Display

18/09/2018 - 210KB (PDF) file - R300-725-200-M01

  Application Note: Animal Weighing - Live Weigh Feature (R300/X320) Application Note: Animal Weighing - Live Weigh Feature (R300/X320)

18/09/2018 - 134KB (PDF) file - R300-716-200

  Communications Manual Communications Manual

02/25/2021 - 723KB (PDF) file - R300-627-321-M02

  Data Sheet R323 Classic Indicator Data Sheet R323 Classic Indicator

24/02/2023 - 371KB (PDF) file - R300-737-320

  Indicator Function Comparison Matrix Indicator Function Comparison Matrix

24/02/2023 - 0 (PDF) file - SALES-749-292

  One page quick-cal sheet One page quick-cal sheet

17/02/2019 - 258KB (PDF) file - R300-686-100

  Operator Manual Operator Manual

18/09/2018 - 356KB (PDF) file - R300-619-211-M02

  PLP Firmware Feature Summary PLP Firmware Feature Summary

16/02/2023 - 293KB (PDF) file - R300-762-100

  R300 and X320 V4 Livestock Weighing R300 and X320 V4 Livestock Weighing

18/09/2018 - 271KB (PDF) file - R300-752-100

  R300 HW1.2 PLP Firmware Change Procedure R300 HW1.2 PLP Firmware Change Procedure

05/12/2022 - 182KB (PDF) file - R300-890-101

  R300 NiMH Battery Charger Reference Manual R300 NiMH Battery Charger Reference Manual

18/09/2018 - 497KB (PDF) file - R300-672-111

  R300 Series Calibration Sheet R300 Series Calibration Sheet

18/09/2018 - 198KB (PDF) file - R300-681-110

  R300 X320 V3 to V4 to PLP Release Note R300 X320 V3 to V4 to PLP Release Note

16/02/2023 - 370KB (PDF) file - R300-750-200

  R320 K344 Basic Software R320 K344 Basic Software

27/02/2023 - 414KB (ZIP) file - R300-547-451

  R320 K354 Software R320 K354 Software

27/02/2023 - 414KB (ZIP) file - R300-549-452

  R320 K356 Software R320 K356 Software

27/02/2023 - 414KB (ZIP) file - R300-550-451

  R320 PLP K356-Count R320 PLP K356-Count

27/02/2023 - 414KB (ZIP) file - R300-574-451

  R320 PLP K356-Live R320 PLP K356-Live

27/02/2023 - 414KB (ZIP) file - R300-573-451

  R320 PLP K356-Med R320 PLP K356-Med

27/02/2023 - 414KB (ZIP) file - R300-575-451

  R320 PLP K356-Peak R320 PLP K356-Peak

27/02/2023 - 414KB (ZIP) file - R300-572-451

  R323 Classic Brochure R323 Classic Brochure

09/03/2023 - 576KB (PDF) file - R300-720-203-M04

  Reference Manual PLP Reference Manual PLP

05/01/2023 - 3MB (PDF) file - R300-682-120

  Reference Manual V4 Reference Manual V4

24/07/2020 - 3MB (PDF) file - R300-682-119
