X320 IP68/IP69K Washdown Indicator

X320 IP68/IP69K Washdown Indicator

The X320 combines innovation in industrial design and engineering excellence to create an instrument that is ideal for use in food processing, automotive, chemical or pharmaceutical applications or applications that require reliable operation in harsh environmental conditions. The X320 indicator builds on Rinstrum’s already successful R320 indicator.

Constructed of a high tech plastic alloy that is:

  • Food grade
  • Chemical resistant
  • Temperature resistant
  • Impact resistant
Double “o” ring seal which provides superior performance over traditional stainless steel enclosures.

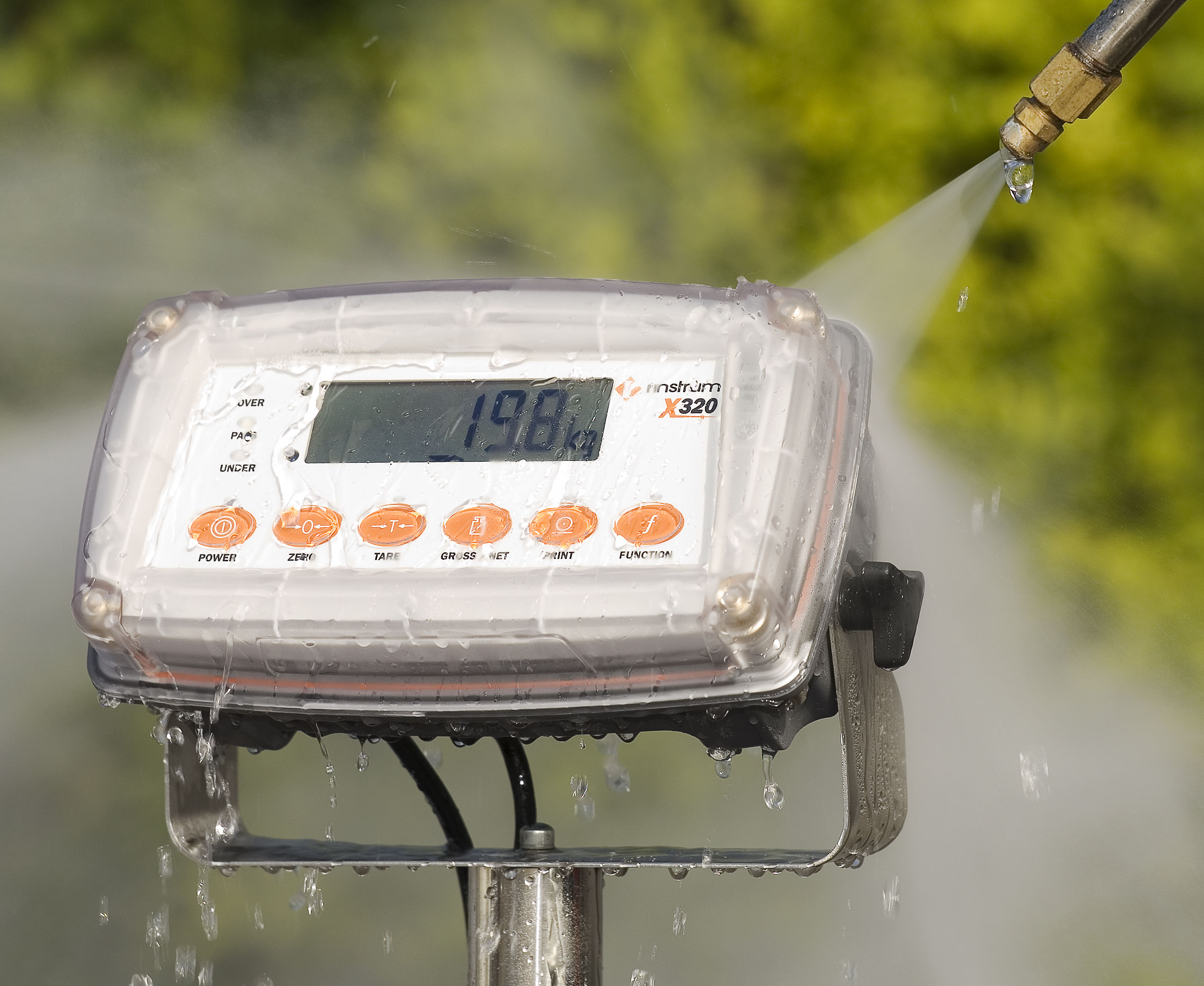

IP69K rating: the industry’s highest environmental protection rating – designed to withstand cleaning with high pressure water jets (1400psi) at high temperatures (up to 80oC) from multiple angles.

Built-in check weigh function  with 3 coloured high intensity LEDs

Isolated outputs – Over, Under, Pass. High side driver up to 400mA, allowing direct connection to PLCs and external actuators to be driven directly

Customiseable – Programmable function key and configurable printing

K376 Cross Grade: Certain features are specifically available in the cross graded versions of K376 firmware, see table below for feature set. Cross grade firmware can be downloaded off the website and does not require a passcode.

Firmware Version K376 K376-LIVE
Print (Serial RS232) Advanced
Counting -*
Manual Hold C S
Peak Hold -*
Totalization S S
Basic Check Weighing S
Products 1
Ring Network S S
Bluetooth Accessory A A
Set Point Output 3
Units lb/ kg Switching S S
Units lb/ kg/ oz/ g Switching S
Units on Power key or Function key S S
Gravity Compensation S
Linearisation -*
Animal Weighing C S
Quick Calibration S S



S – Standard Accessory A – Optional Accessory ^ – Basic Over/ Under Setpoints ^^ – Advanced Set Points
C – Cross Grade * Contact us if you need this feature
SKU: 1003 Category:

Description

Key Highlights & Features

  • 3 band check weighing
  • AC, DC and rechargeable NiMH battery options
  • Built in check weigh display
  • Built-in RS232 communications port
  • IP68 and IP69K rated
  • Tough enclosure - impact resistant composite alloy housing
  • Trade Approved Australia/Europe/USA

Product Description

The X320 combines innovation in industrial design and engineering excellence to create an instrument that is ideal for use in food processing, automotive, chemical or pharmaceutical applications or applications that require reliable operation in harsh environmental conditions. The X320 indicator builds on Rinstrum's already successful R320 indicator.

Constructed of a high tech plastic alloy that is:

  • Food grade
  • Chemical resistant
  • Temperature resistant
  • Impact resistant
Double "o" ring seal which provides superior performance over traditional stainless steel enclosures.

IP69K rating: the industry's highest environmental protection rating - designed to withstand cleaning with high pressure water jets (1400psi) at high temperatures (up to 80oC) from multiple angles.

Built-in check weigh function  with 3 coloured high intensity LEDs

Isolated outputs - Over, Under, Pass. High side driver up to 400mA, allowing direct connection to PLCs and external actuators to be driven directly

Customiseable - Programmable function key and configurable printing

K376 Cross Grade: Certain features are specifically available in the cross graded versions of K376 firmware, see table below for feature set. Cross grade firmware can be downloaded off the website and does not require a passcode.

Firmware Version K376 K376-LIVE
Print (Serial RS232) Advanced
Counting -* -
Manual Hold C S
Peak Hold -* -
Totalization S S
Basic Check Weighing S -
Products 1 -
Ring Network S S
Bluetooth Accessory A A
Set Point Output 3 -
Units lb/ kg Switching S S
Units lb/ kg/ oz/ g Switching S -
Units on Power key or Function key S S
Gravity Compensation S -
Linearisation -* -
Animal Weighing C S
Quick Calibration S S



S - Standard Accessory A - Optional Accessory ^ - Basic Over/ Under Setpoints ^^ - Advanced Set Points
C – Cross Grade * Contact us if you need this feature

Smart Weighing

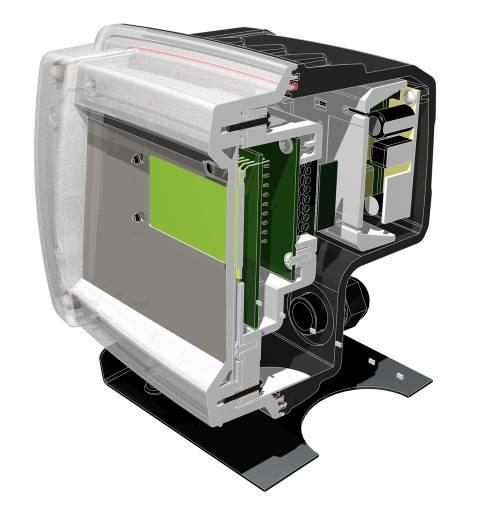

What makes this housing exceptional?

The design - sealed and tough

  • Double O ring to seal the outer housing
  • Single piece front panel to protect the display and avoid leaks

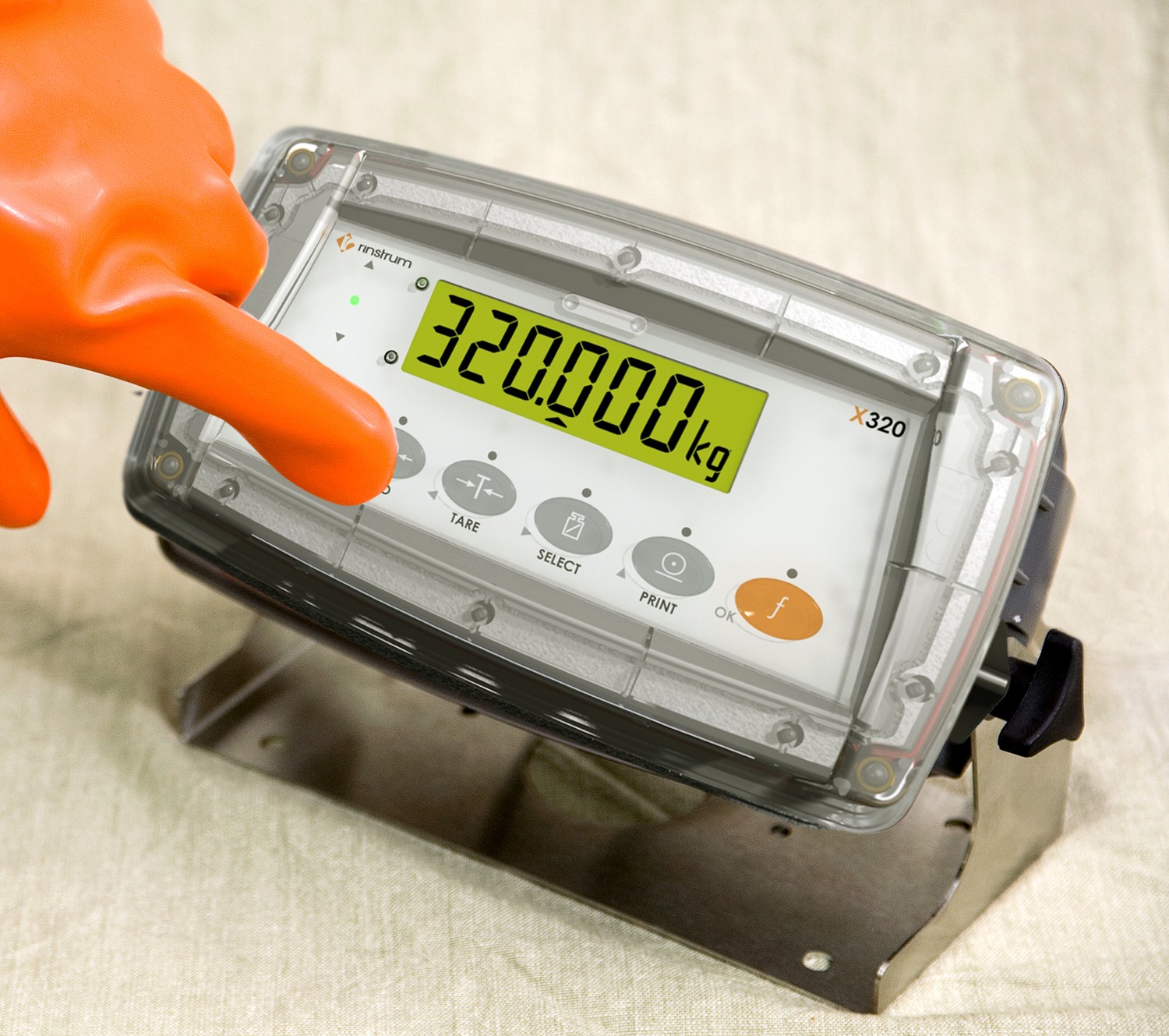

  • Capacitive keys with no moving parts
  • No glued membrane to fail
  • No traditional keypad to damage
  • No external parts using adhesive
  • Sturdy design with enhanced wall strength
The material - high tech composite alloy

 ..now that's smart weighing

Product Downloads

The following files are available for download for the X320 IP68/IP69K Washdown Indicator. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.

To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.

If a save dialogue box does not appear, right click on the link and select save target as.

Files

  Brochure Brochure

09/03/2023 - 917KB (PDF) file - X300-713-102-M04.pdf

  Data Sheet: X320 Data Sheet: X320

02/03/2023 - 587KB (PDF) file - X300-700-411.pdf

  Indicator Function Comparison Matrix Indicator Function Comparison Matrix

29/04/2024 - 437KB (PDF) file - SALES-749-294-M01

  K376-Live-V4.50 K376-Live-V4.50

24/02/2023 - 414KB (ZIP) file - X300-515-450-M02

  K376-V4.51 K376-V4.51

27/02/2023 - 414KB (ZIP) file - X300-505-451

  X320 (K376) Reference Manual X320 (K376) Reference Manual

05/01/2023 - 2MB (PDF) file - X300-652-118

  X320 Battery Options X320 Battery Options

01/08/2023 - 1MB (PDF) file - X300-714-100

  X320 Poster X320 Poster

22/02/2019 - 2MB (PDF) file - X300-705-200-M02
