5230 Weighbridge Indicator with Advanced Functionality

5230 Weighbridge Indicator with Advanced Functionality

The updated approval NMI S418 for the internal AC version of the 5000 series indicator has been finalised and is available in the NMI downloads.  Both the AC and the DC version are in stock in our Brisbane office.

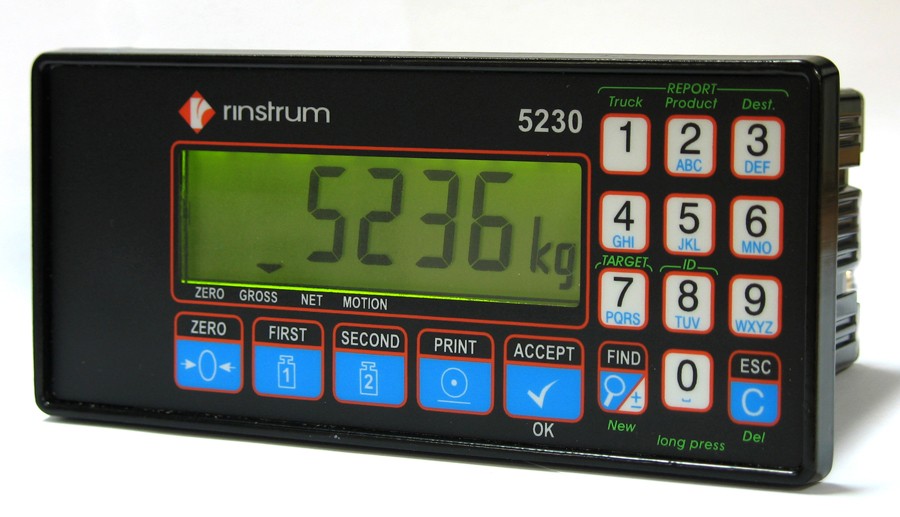

The 5230 is our specialist indicator designed as an economical solution for midsize weigh bridge operations. It supports weigh in weigh out and has dedicated 1st and 2nd function keys. Operator entry is simplified through the alphanumeric keypad and on screen prompting. There are standard printing formats available to suit each type of application.

Multiple weighings (up to 10) are available for split or axle weighing for first, second or single weights. Storage of first weights or tares against the truck ID allows for quick and easy processing of truck weighing transactions. A dual serial port is provided as standard to allow connection to a printer and remote display.

SKU: 1016 Category:

Description

Key Highlights & Features

  • 200 memory allocations

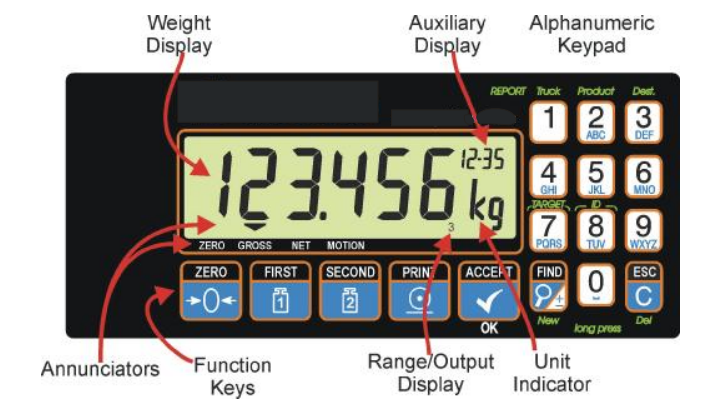

  • Alphanumeric keypad
  • Axle or Split weighing
  • Dedicated Truck-Weigh function keys
  • Drive 12 x 350 ohm load cells
  • On-scale product filling
  • Weigh IN/Weigh OUT

Product Description

The updated approval NMI S418 for the internal AC version of the 5000 series indicator has been finalised and is available in the NMI downloads.  Both the AC and the DC version are in stock in our Brisbane office.

The 5230 is our specialist indicator designed as an economical solution for midsize weigh bridge operations. It supports weigh in weigh out and has dedicated 1st and 2nd function keys. Operator entry is simplified through the alphanumeric keypad and on screen prompting. There are standard printing formats available to suit each type of application.

Multiple weighings (up to 10) are available for split or axle weighing for first, second or single weights. Storage of first weights or tares against the truck ID allows for quick and easy processing of truck weighing transactions. A dual serial port is provided as standard to allow connection to a printer and remote display.

Smart Weighing

Truck Weighing

  • Single Weighing with weigh In-Out
  • Batch Process Single Weighing (In-Out) - where fill is performed directly on the weighbridge. The product fill from a silo, for example, can be controlled via the optional outputs.
  • Multiple and Variable Axle Weighing (In-Out) - allows up to 10 axles of a vehicle to be weighed and the weights stored as the transaction.
  • 200 memory allocations - to store truck, product and destination identification
  • Material usage reporting - against truck ID and destination ID

..now that's smart weighing.

Product Downloads

The following files are available for download for the 5230 Weighbridge Indicator with Advanced Functionality. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.

To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.

If a save dialogue box does not appear, right click on the link and select save target as.

Files

  5230 Brochure 5230 Brochure

11/09/2019 - 122KB (PDF) file - 5200-701-120

  Applications Manual Applications Manual

11/09/2019 - 156KB (PDF) file - 5200-604-120

  Indicator Function Comparison Matrix Indicator Function Comparison Matrix

24/02/2023 - 0 (PDF) file - SALES-749-292

  Operator Manual Operator Manual

11/09/2019 - 238KB (PDF) file - 5200-602-170

  Quick Start Manual Quick Start Manual

11/09/2019 - 218KB (PDF) file - 5200-601-150
