The TBOX converts 2 or 4 analogue load cells signals to a multichannel digital signal back to a controller.  Each load cell signal is available at the controller.  The TBOX is commonly used on multi-head machines to save on cabling all analogue channels back individually.  The digital signal uses a daisy chain cabling configuration further saving on cabling complexity.

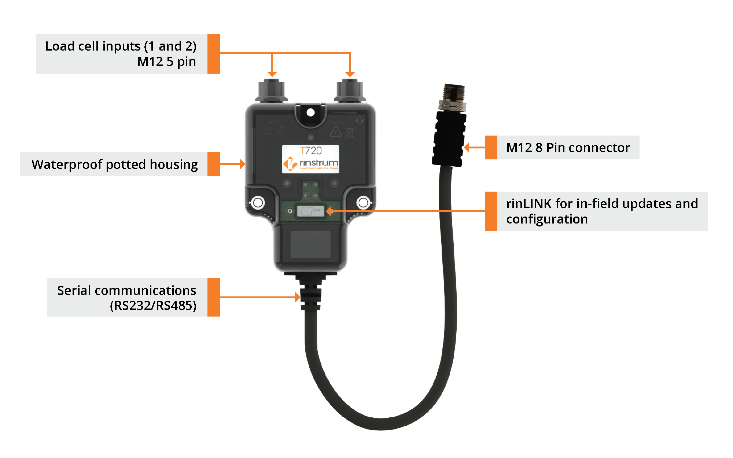

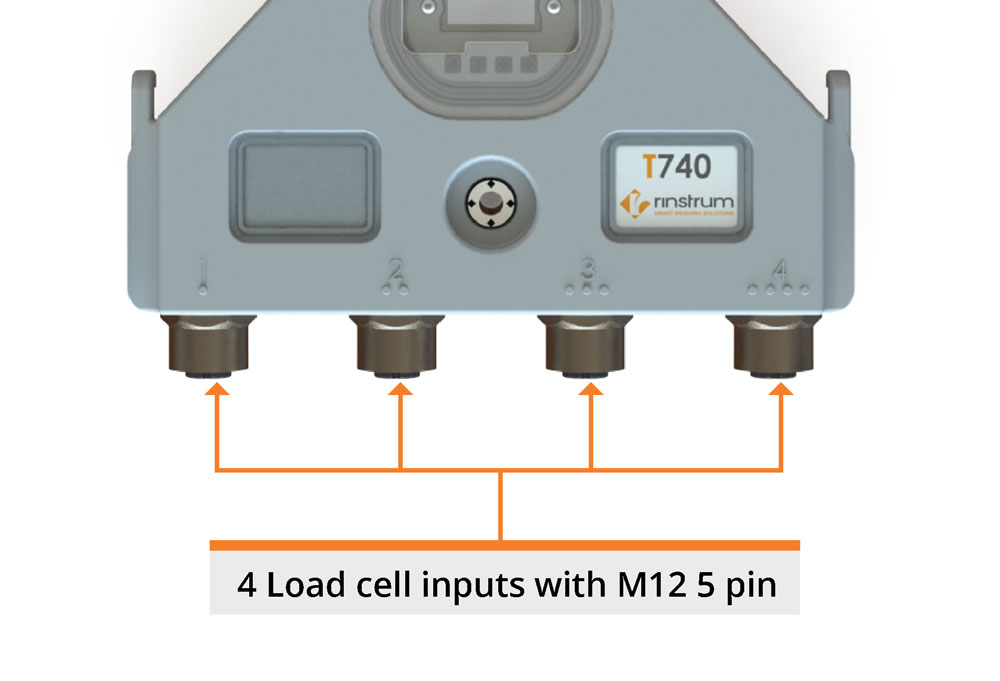

The TBOX is fitted with M12 connectors to provide easy connectivity.  The M12 connection for the loadcells is a standard 5 pin connector and the M12 digital tail uses an 8-pin standard.  Rinstrum supplies 8 pin M12 T connectors for simple ring networking with RS485. RS232 version can be used for single point applications working back to a PC or PLC.

The TBOX is ideal for machine builders with multiheaded weighing elements and is available through a design consultation.

How do you setup a TBOX?

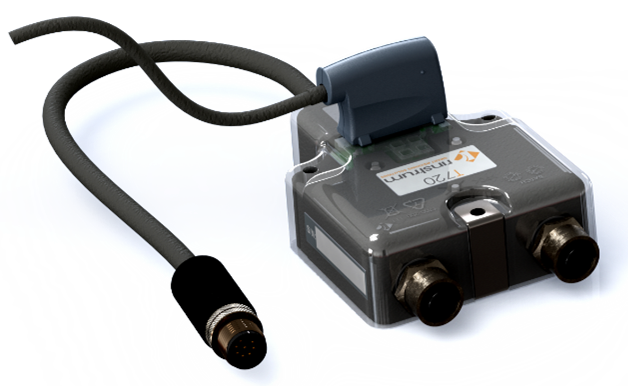

  • A Rinstrum rinLINK provides a magnetically coupled optical link on the unit, for a convenient temporary connection to a laptop
  • The serial connection allows for download of software upgrades

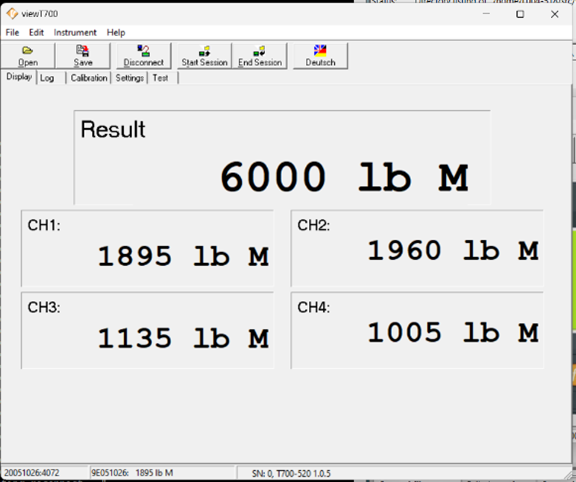

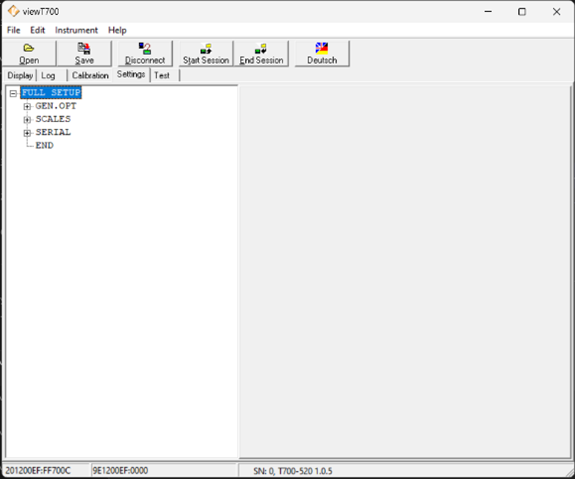

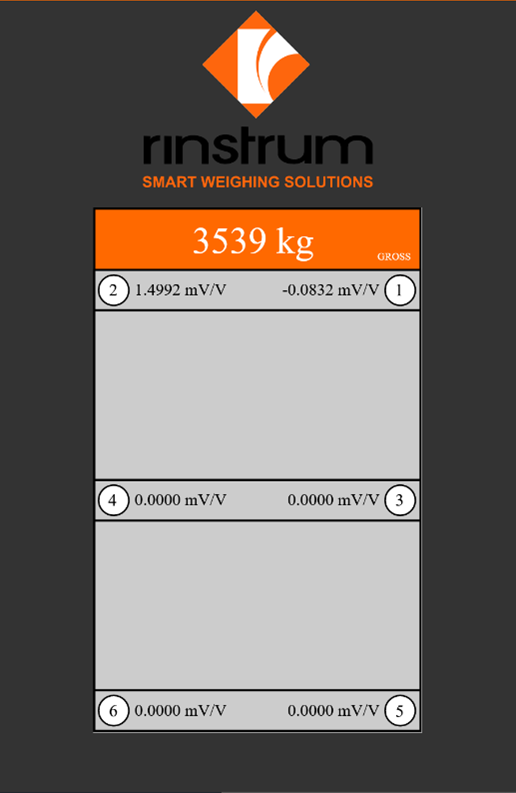

  • Running the free Viewer program on the laptop gives easy access to the setup menu tree.



How do you cable multiple RS485 TBOX together?
  • The serial connection on the TBOX uses 8 wires with an M12 connector.

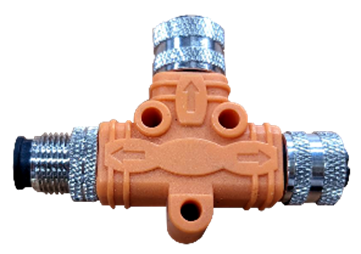

  • The RS485 digital connection can be connected in a ring configuration to reduce cabling using the T junction (MC8J1).
  • Alternately a multi drop configuration can be used if preferred or if there are limitations with the PLC (MC8J2 junction is used to support the cabling).
  • Rinstrum has a range of 8pin M12 connectors and cables.

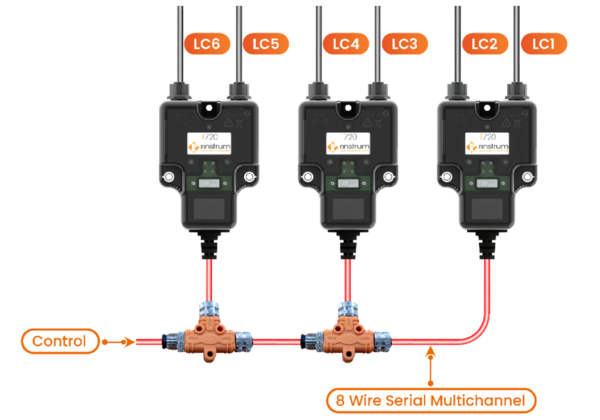

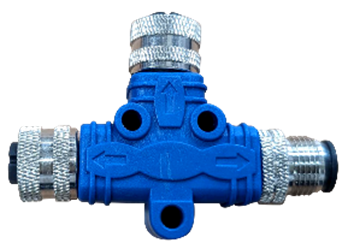

Cabling: M12 8 Wire T Connectors Daisy Chain



MC8J1









MC8J2

What type of controllers can I connect to?

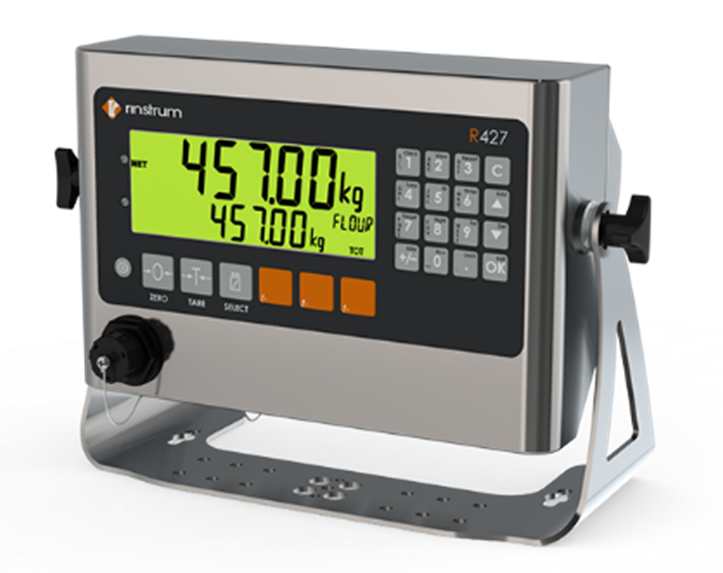

  • The Rinstrum R457 with custom Lua designed for you application
  • Customer supplied equipment capable of operating as an RS232/ RS485 master
  • Each channel of weighing data is accessed using a unique serial address

SKU: 1131-1 Category:

Description

Key Highlights & Features

  • Digital weight transmission using serial communication
  • M12 waterproof loadcell connector for outdoor usage
  • Potted waterproof housing
  • RS232 and RS485 serial options for communication

Product Description

The TBOX converts 2 or 4 analogue load cells signals to a multichannel digital signal back to a controller.  Each load cell signal is available at the controller.  The TBOX is commonly used on multi-head machines to save on cabling all analogue channels back individually.  The digital signal uses a daisy chain cabling configuration further saving on cabling complexity.

The TBOX is fitted with M12 connectors to provide easy connectivity.  The M12 connection for the loadcells is a standard 5 pin connector and the M12 digital tail uses an 8-pin standard.  Rinstrum supplies 8 pin M12 T connectors for simple ring networking with RS485. RS232 version can be used for single point applications working back to a PC or PLC.

The TBOX is ideal for machine builders with multiheaded weighing elements and is available through a design consultation.

How do you setup a TBOX?
  • A Rinstrum rinLINK provides a magnetically coupled optical link on the unit, for a convenient temporary connection to a laptop
  • The serial connection allows for download of software upgrades
  • Running the free Viewer program on the laptop gives easy access to the setup menu tree.



How do you cable multiple RS485 TBOX together?
  • The serial connection on the TBOX uses 8 wires with an M12 connector.
  • The RS485 digital connection can be connected in a ring configuration to reduce cabling using the T junction (MC8J1).
  • Alternately a multi drop configuration can be used if preferred or if there are limitations with the PLC (MC8J2 junction is used to support the cabling).
  • Rinstrum has a range of 8pin M12 connectors and cables.

Cabling: M12 8 Wire T Connectors Daisy Chain



MC8J1









MC8J2

What type of controllers can I connect to?
  • The Rinstrum R457 with custom Lua designed for you application
  • Customer supplied equipment capable of operating as an RS232/ RS485 master
  • Each channel of weighing data is accessed using a unique serial address

Smart Weighing

Configurability via a standard rinLINK allows the TBOX to be fully potted – perfect for harsh environments.



… now that’s smart weighing!
