The T6xx modules are Digital weight transmitters that use the rinWIRE interface which implements RS485 serial communication protocol to connect devices in a ring network.

Protocol uses ASCII characters with a single master POLL / RESPONSE message structure.

Each sensor regenerates the communication signals so there is no need for network termination devices to balance the network as with standard RS485.

Digital weight transmitter

     Indoor:

  • T610 modules are designed for indoor use.
  • RJ45 connectors are used for connections.

     Outdoor:

  • T620 modules are designed for outdoor use.
  • M12 connectors are used for connections.
  • Rugged potted metal housing.
  • IP68 rated.

RinWire interface converter

  • T105 Protocol Board to convert Standard RS232 to RS485.
  • With external power supply.
  • Reverse Polarity and short circuit protected.
SKU: 1131 Category:

Description

Key Highlights & Features

  • 8-way cat5 cables of POE Standard connections.
  • Digital weigh transmission using standard RS485 serial communication.
  • M12 waterproof connectors for outdoor.
  • RJ45 connectors for Indoor.
  • Supports ring, tree, star and custom network topologies.
  • Up to 31 Devices can be connected.

Product Description

The T6xx modules are Digital weight transmitters that use the rinWIRE interface which implements RS485 serial communication protocol to connect devices in a ring network.

Protocol uses ASCII characters with a single master POLL / RESPONSE message structure.

Each sensor regenerates the communication signals so there is no need for network termination devices to balance the network as with standard RS485.

Digital weight transmitter

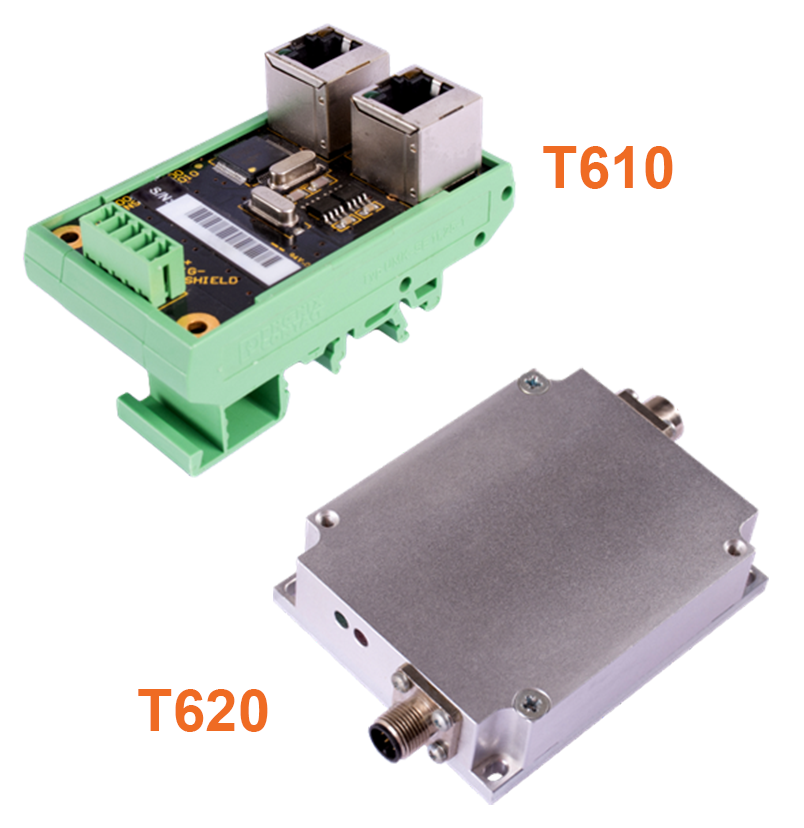

     Indoor:

  • T610 modules are designed for indoor use.
  • RJ45 connectors are used for connections.

     Outdoor:

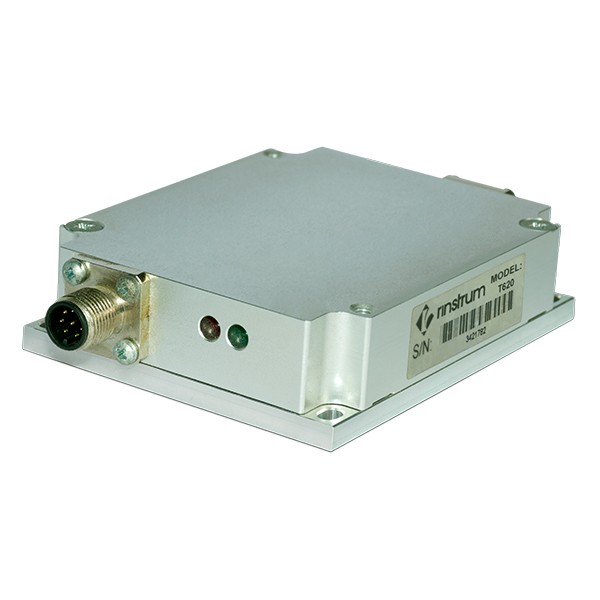

  • T620 modules are designed for outdoor use.
  • M12 connectors are used for connections.
  • Rugged potted metal housing.
  • IP68 rated.

RinWire interface converter

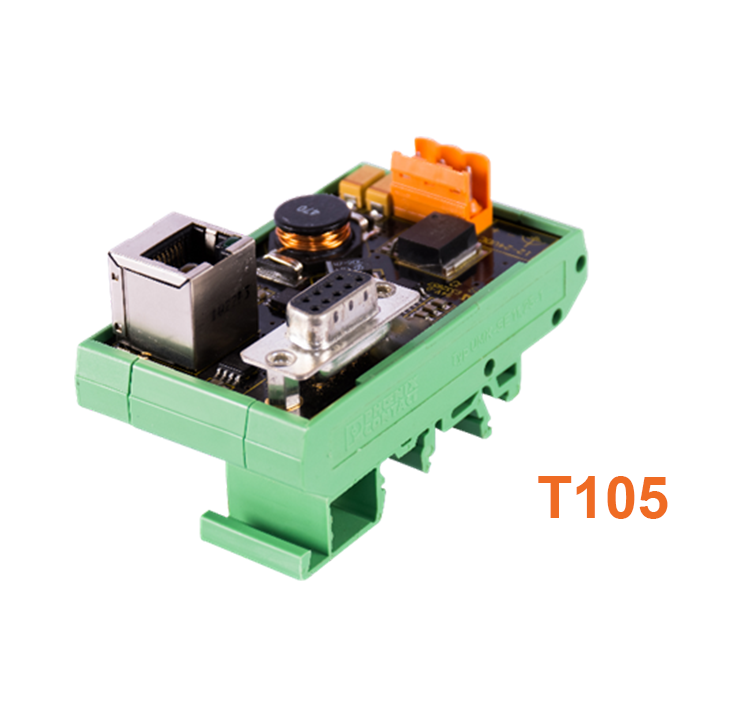

  • T105 Protocol Board to convert Standard RS232 to RS485.
  • With external power supply.
  • Reverse Polarity and short circuit protected.

Smart Weighing

T620/T610 more than just weight transmitters.

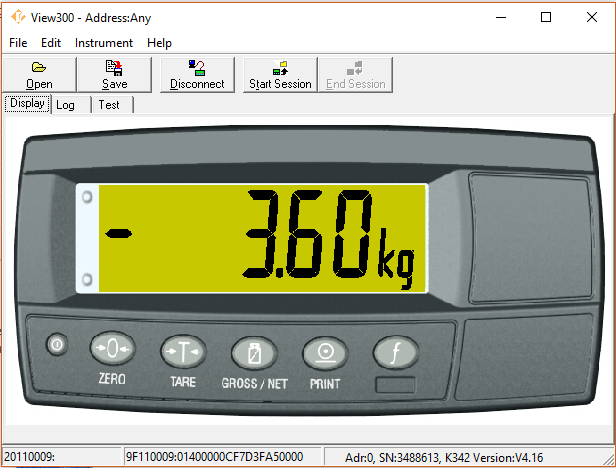

  • Connect them to RINSTRUM R300 viewer.
  • Do calibrations (mV/V Factory/Direct mv/V/ Test weight).
  • Virtual key access for Zero, Tare and Gross/Net.
  • Get weight displayed with standard weight status.

...now that's smart weighing


Product Downloads

The following files are available for download for the T Series T610, T620 and T105. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.

To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.

If a save dialogue box does not appear, right click on the link and select save target as.

Files

   Data Sheet Data Sheet

01/10/2018 - 663KB (PDF) file - T000-602-100

   rinWIRE protocol definition rinWIRE protocol definition

27/11/2018 - 60KB (PDF) file - T000-601-100

  Reference Manual Reference Manual

13/06/2017 - 1MB (PDF) file - T000-600-200
