Description
Key Highlights & Features
- Dual range 3,000 d OIML
- Stainless steel (304) frame and pan
- Trade approved NMI 6/4C/256
- X320 or R420 indicator
- XS - IP67 S/S load cell
- XT - IP68 and IP69K S/S load cell
Product Description

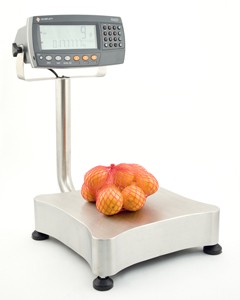

The XT and XS bases both use 304 stainless steel throughout, making them suited to food areas. The XT uses an IP69K/IP68 load cell so it is used where high pressure, high temperature wash down or submersion is required. The XS uses and IP67 rated stainless steel load cell suitable for wash down.

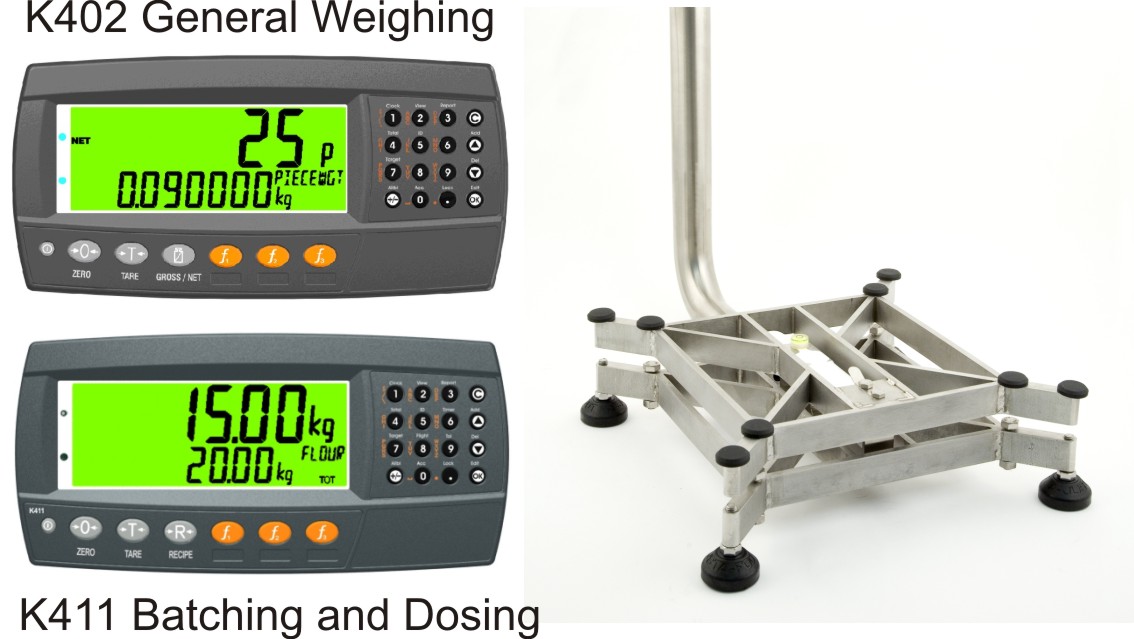

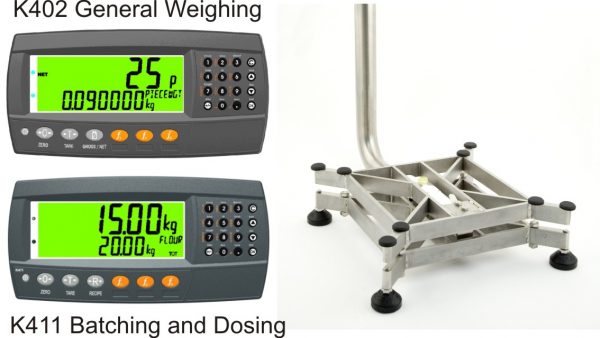

The R420 indicator can be supplied with application software depending on the installation and is suitable for IP65 rated environments. The K4xx designation specifies the software application.
The R420-K401 or K402 is idea for counting or set point applications, for example inventory, shipping and receiving and parts counting.
| Powerful product configuration | Set point targets, piece weights and units conversions can be stored for each product. |
| Custom unit switching | Programme for standard weight units (kg, lb, t etc) or customise for your application (litres or force for example) |
| Operator friendly | The large two line display (29mm and 18mm) uses logical prompts along with dedicated and programmable function keys |
| 200 Product storage* with thumb-wheel support | Up to 200 products can be stored and recalled easily by the operator using the product names you specify. Either select from the most recently used 10 products or use an alphanumeric product search via the keypad. The R420 also supports product selection via a thumb-wheel. |
| Counting | Piece counting using either entered piece weight or a sample. |
* (K401 supports 1 product)
R420-K411 is idea for simple single material filling through to complex multistage batching applications.
| Powerful batching configuration | 10 Batching stages Fill, Dump and Pulse stages 6 Materials 3 Speed Fill Fill correction using jogging or in-flight Dump to time or weight |
| Multi-line display with batching prompts | The multi-line display shows batch progress, current weight, target weights, material name along with dedicated batch status annunciators. |
| Batching operation flexibility | Batch size can be varied by either weight or proportion and the operator can set number of batches to run. |
| Up to 32 input/ outputs | The robust I/O is designed for direct connection into PLC's, or direct drive up to 400mA each with up to 32 I/O control points. |
Standard X Scale Series features:
| Built-in RS232 | Connection to printer, PC or display |
| Configurable printing | Link to a printer for customised reports, printouts and dockets. |
| Built in clock calendar | For date and time stamping |
| Three power options | AC, DC and rechargeable NiMH battery options |
| Dedicated function keys | Zero, Tare, Gross/Net |
| Pan Size -A | Dual Range Capacity | ||
| Capacity (kg) | 310 x 310mm | Range 1 | Range 2 |
| 15 | â— | 6 x 0.002 kg | 15 x 0.005 kg |
| 30 | â— | 15 x 0.005 kg | 30 x 0.01 kg |
| 60 | â— | 30 x 0.01 kg | 60 x 0.02 kg |
Smart Weighing
built to last

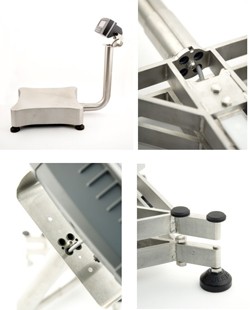

- 6mm robust frame
- Over load protection stops
- 1.2mm thick pan
- Overload recording increments every time the scale is overloaded
easy maintenance & operation
- Clear open frame Easy to keep clean.
- Removable low sided pan - Deflect splatter
- Sturdy pan construction No warping
- Ergonomic shaped pan To assist operators
- 2 Axis rotating head For best operator viewing angle
..now that's smart weighing.
Product Downloads
The following files are available for download for the Stainless Steel R420 Bench Scale. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.
To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.
If a save dialogue box does not appear, right click on the link and select save target as.
