Description
Key Highlights & Features
- 9999 Truck IDs (Products)
- Alpha-numeric Truck ID names
- Drive up to 16x350ohm load cells
- Preset Tare and accumulation data on each Truck ID
- Programmable printing
- Simple two button operation
- Single and two pass weighing
- Web interface
Product Description
The L404 is designed specifically for truck weighing. It allows for a range of operational scenarios all in one setup, from weigh-in/weigh-out to stored truck ids. The dedicated Truck ID button and Print button simplify the operator interface. Additionally, the alpha-numeric keypad allows for easy entry of tare weight and Truck IDs. With 9999 Truck IDs available it is suitable for applications with truck fleets of up to 9999.
Clicker Truck Selection
Remote display Support
2 Indicator Mode
USB/serial/Windows Printer Support
Truck, Destination and Product database (optional)
The following operational scenarios can all be handled on the one setup:
- Print the weight of the truck on the scale
- Weigh a truck in a single pass using its tare weight
- Weigh a known truck with a stored Truck ID and preset tare and accumulate the statistics on that truck ID.

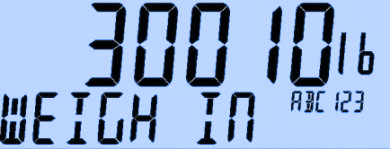

- Two pass weighing with a weigh in followed by a weigh out. The ticket will show time/date weigh-in, weigh-out and net weights.
- Automatic temporary Truck ID to simplify weigh-in/weigh-out for fast weighing throughput. The temporary Truck ID is removed once the weigh-out is complete.
R457 Indicator is ideal for weigh bridges:
- Isolated communication modules for excellent protection against lightning
- All accessory modules, including the power supply, can be swapped without recalibration.
- Indicator configuration and setup can be reused and easily uploaded using the opto-link on the front panel.
Pre-calibration using mV/V saving time on full calibration.
Weigh in Weigh out with preset tare
Smart Weighing

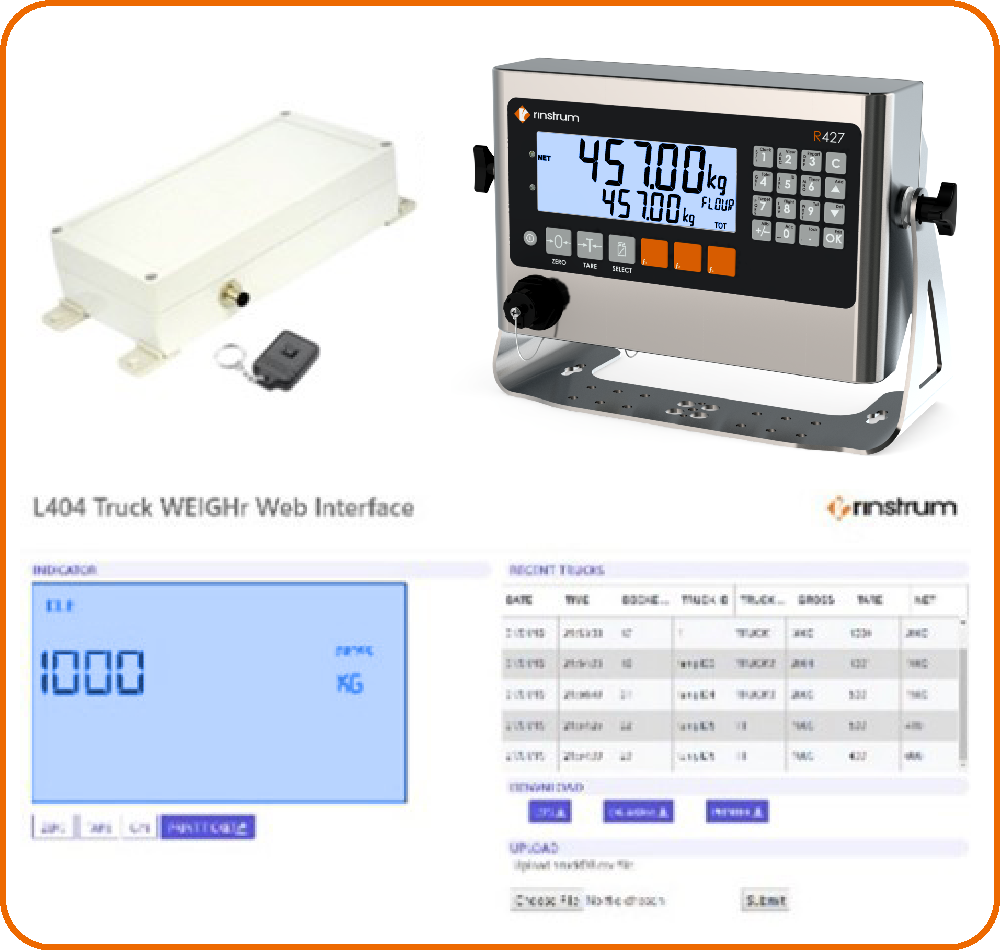

The L404 operation builds on years of experience working with specialist truck scale manufactures to streamline weigh bridge operation and simplify the operator experience.
- Easy to use 9999 truck database
- Web interface
- Remote display support
- QWERTY keyboard support
- Optional Clicker System for truck selection
...now that's smart weighing!
Product Downloads
The following files are available for download for the R457 – L404 Truck Weighing. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.
To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.
If a save dialogue box does not appear, right click on the link and select save target as.
Files
 R400 Series Brochure - R457
13/08/2024 - 2MB (PDF) file - R400-769-251-M02 |
|
| R400 Series Data Sheet- R457
15/08/2024 - 880KB (PDF) file - R400-770-150-M01 |
