Description
Key Highlights & Features
- 100,000 d @ 0.25 µV/d
- 8 I/O Standard, up to 32 I/O can be added
- Completed cabling within the unit
- Fiberglass Standard, Polycarbonate optional, other housing options*
- Internal Free Running setpoints available in addition to the Batching
- Save400 software for cloning applications
- Viewer Software for configuration and diagnostics
Product Description
The R423 Batch controller is designed specifically for filling and dosing applications. It can be used in bag filling as well as it has the option to show a bag/batch counter on the LCD. It can be used in negative filling or downweighing applications as well. The standard unit has 8 IO and 3 front panel operators with 1 mushroom E-stop. A standard 24 VDC power supply is used to power the instrument, relays and buttons. Relay outputs are set for a 24VDC control voltage however they can quickly be toggled to source 120/240 VAC to suit the desired application requirements. Color coded terminals are used to designate 24 VDC versus 120 VAC. A M4301 is utilized to drive the relays and pushbuttons. Adding a M4311 would allow expansion for additional buttons and controls.
Two cabinets are available and can be selected according to the environment with either the fiberglass rating NEMA4X or polycarbonate rated to IP66.
A typical configuration would include:

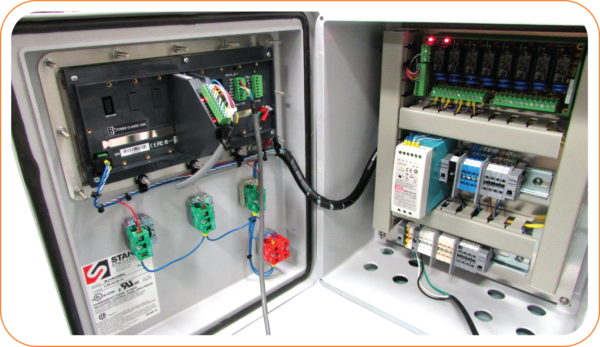

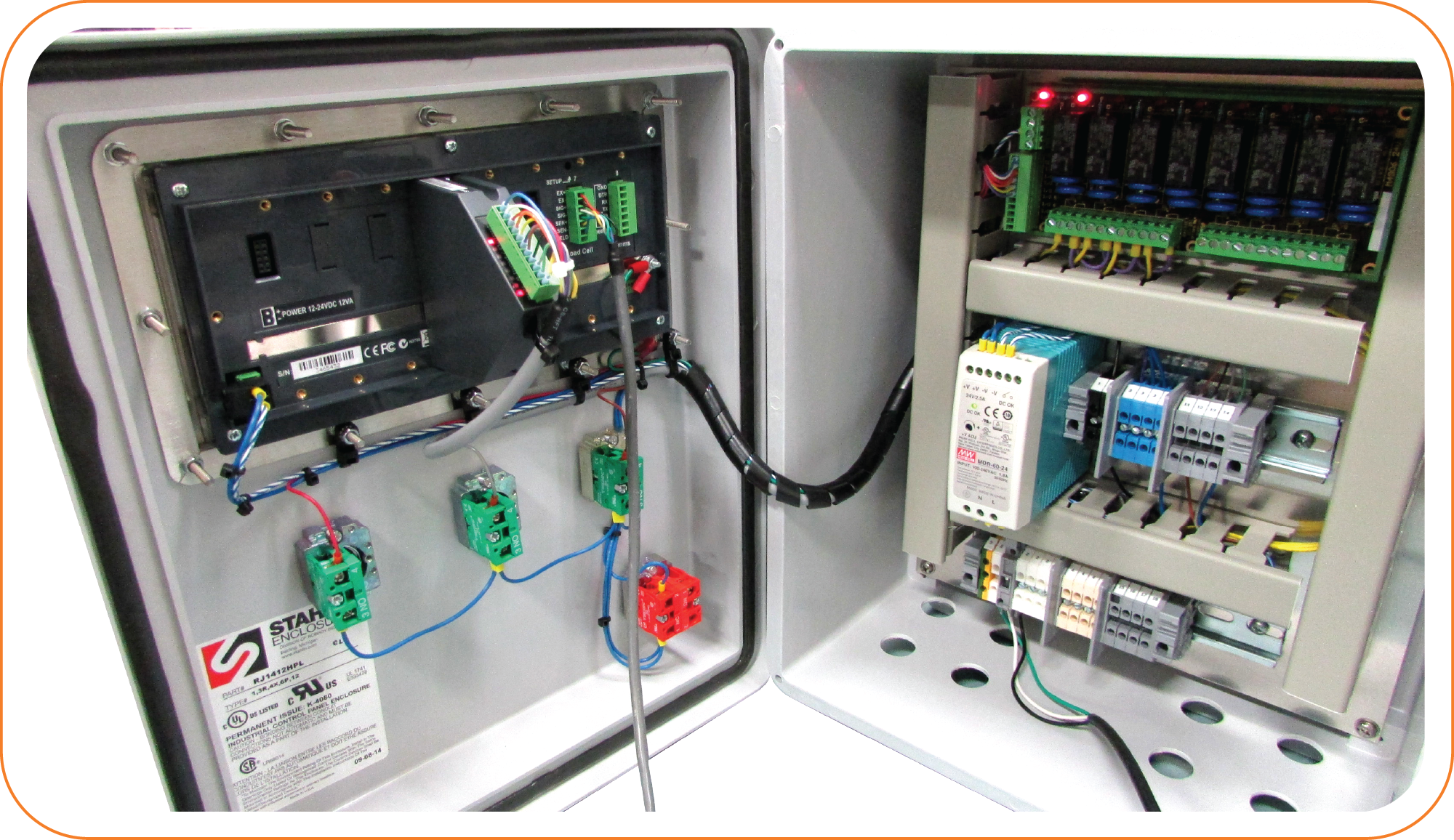

- DIN rail mounted relays that are used in conjunction with an I/O module and provide 8 relay outputs rated to 250VAC up to 8A.
- DIN rail mounted 120-240VAC Power Supply

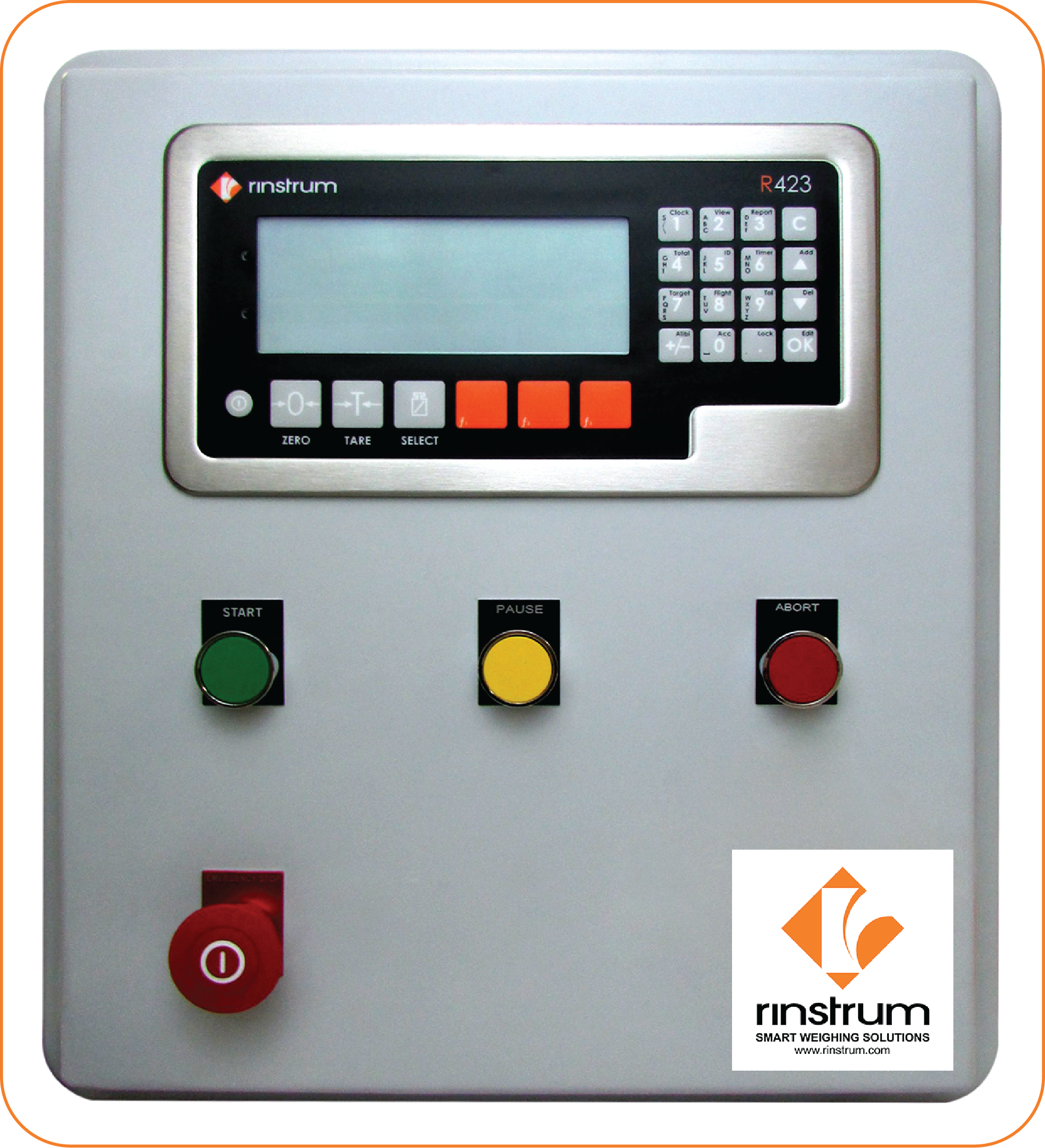

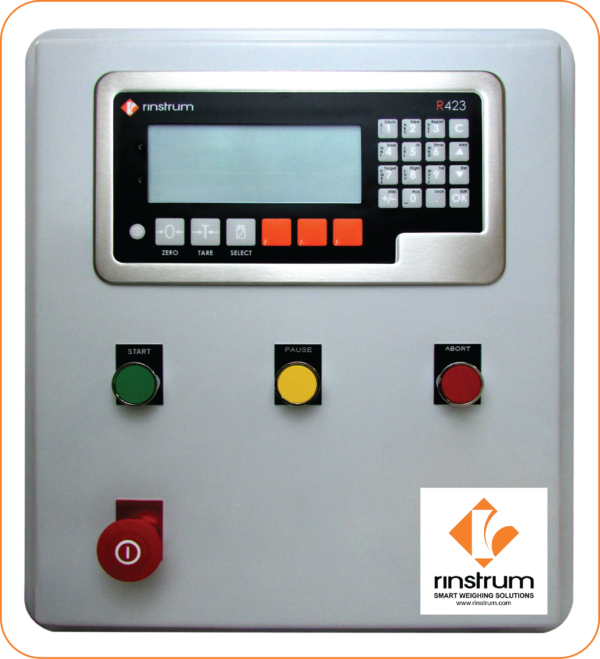

- Emergency Stop and coloured buttons configured for Start, Pause & Abort
- Cabled and with a basic configuration for the application firmware that has been selected.
Flexibility is the key with its award winning modular accessory design and the ability to utilise the ever-increasing Software Variants of the 400 Series of Indicators.
Modules include: M4301 included, M4311 optional. M4223 can be added to enhance programmability add CSV DSD and other features.
Operator friendly - large multi-segment display that uses logical prompts along with dedicated and programmable function keys.
Console Options
| Fiberglass (std) | 16 in x 14 in x 8 in (400 mm x 350 mm x 200 mm) |
| Polycarbonate | 16 x 14 x 7 (400 mm x 350 mm x 180 mm) |
| Powder coated steel* | 16 in x 14 in x 8 in (400 mm x 350 mm x 200 mm) |
| Stainless steel* | 16 in x 14 in x 8 in (400 mm x 350 mm x 200 mm) |
Please contact Rinstrum to discuss your configuration requirements.
Smart Weighing
Superior Diagnostics
R400 series indicators have a range of diagnostic tools and features that aid system commissioning and maintenance.
- Force Output and Test Input functions allow the installer to specifically test I/O to assist in site setup
- Modules can be swapped in and out without recalibration of the indicator, saving time and effort
- Status LED on each I/O, both on I/O module and Relay card.
- Overload counter to review if the scale has been overloaded.
- Viewer Software connection via RinLink to assist with additional configuration and storing applications for future development as well as supporting existing installations.
..now that’s smart weighing.
Product Downloads
The following files are available for download for the R423 Standard Batch Controller. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.
To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.
If a save dialogue box does not appear, right click on the link and select save target as.
Files
 R423 Standard Batch Controller
20/12/2023 - 425KB (PDF) file - R400-773-100 |
