R420, R423 and R427 – K491 Firmware

R420, R423 and R427 – K491 Firmware

Since 2007 Rinstrum has been supplying onboard tilt compensated weighing electronics to our customers in Europe. The R400 series indicators use specialist K491 firmware. Truck tilt is measured with an inclinometer/tilt sensor that is working in two axis. The X and Y is fed into the tilt module on the R400 indicator that calculates the compensated weight. The indicator and inclinometer solution is trade approved in Europe up to 15 degrees for pay-by-weight systems.

The R400 indicator is available in various housings, panel mount stainless or ABS or full housing stainless steel or ABS. Powered with 12-24VDC and a DSD module for data storage makes it ideal for onboard tilt solutions. The R400 can handle four, six or eight load cells that are mounted between the chassis and the body. Calibration is a simple three step process for the operator.

The K491 is a general purpose indicator that uses an accessory module to connect to a 2 axis tilt sensor that provides tilt compensation.  The K491 is ideal for specialist truck OEM’s requiring electronics for accurate load weighing solutions where the load may be on an angle.  Both the ABS R420-K491 and stainless steel R423-K491 are ideal for panel mounting in a truck cab, featuring a large display and programmable function keys.  The application is for a truck to have accurate weight readings that can compensate for uneven surfaces where a weight reading might be taken.

Simple calibration: Zero/Span calibration (at 0 angle) and tilt calibration to generate the four tilt parameters that are used to correct the reading.

Accessories:  The K491 requires a tilt module and tilt sensor.

  • Tilt Module (M4211)
  • Rinstrum tilt sensor suitable for +/-15 degree
  • The tilt sensor must be correctly mounted given the axes that are providing data
  • The K491 is compatible with a selection up to +/-15 degrees

Optional: DSD, Comms modules, I/O modules

Custom printing: dockets can be customised for the application.  The built in RS232/RS485 port can be configured for printing.

SKU: 50116 Category:

Description

Key Highlights & Features

  • 2 Axis tilt compensation
  • Built in RS232/RS485 ports
  • Communication Modules (RS232/RS485)
  • I/O Modules
  • Supports R400 series modules & accessories
  • Up to +/- 15 degree compensation
  • Up to 250 Products

Product Description

Since 2007 Rinstrum has been supplying onboard tilt compensated weighing electronics to our customers in Europe. The R400 series indicators use specialist K491 firmware. Truck tilt is measured with an inclinometer/tilt sensor that is working in two axis. The X and Y is fed into the tilt module on the R400 indicator that calculates the compensated weight. The indicator and inclinometer solution is trade approved in Europe up to 15 degrees for pay-by-weight systems.

The R400 indicator is available in various housings, panel mount stainless or ABS or full housing stainless steel or ABS. Powered with 12-24VDC and a DSD module for data storage makes it ideal for onboard tilt solutions. The R400 can handle four, six or eight load cells that are mounted between the chassis and the body. Calibration is a simple three step process for the operator.

The K491 is a general purpose indicator that uses an accessory module to connect to a 2 axis tilt sensor that provides tilt compensation.  The K491 is ideal for specialist truck OEM's requiring electronics for accurate load weighing solutions where the load may be on an angle.  Both the ABS R420-K491 and stainless steel R423-K491 are ideal for panel mounting in a truck cab, featuring a large display and programmable function keys.  The application is for a truck to have accurate weight readings that can compensate for uneven surfaces where a weight reading might be taken.

Simple calibration: Zero/Span calibration (at 0 angle) and tilt calibration to generate the four tilt parameters that are used to correct the reading.

Accessories:  The K491 requires a tilt module and tilt sensor.

  • Tilt Module (M4211)
  • Rinstrum tilt sensor suitable for +/-15 degree
  • The tilt sensor must be correctly mounted given the axes that are providing data
  • The K491 is compatible with a selection up to +/-15 degrees

Optional: DSD, Comms modules, I/O modules

Custom printing: dockets can be customised for the application.  The built in RS232/RS485 port can be configured for printing.

Smart Weighing

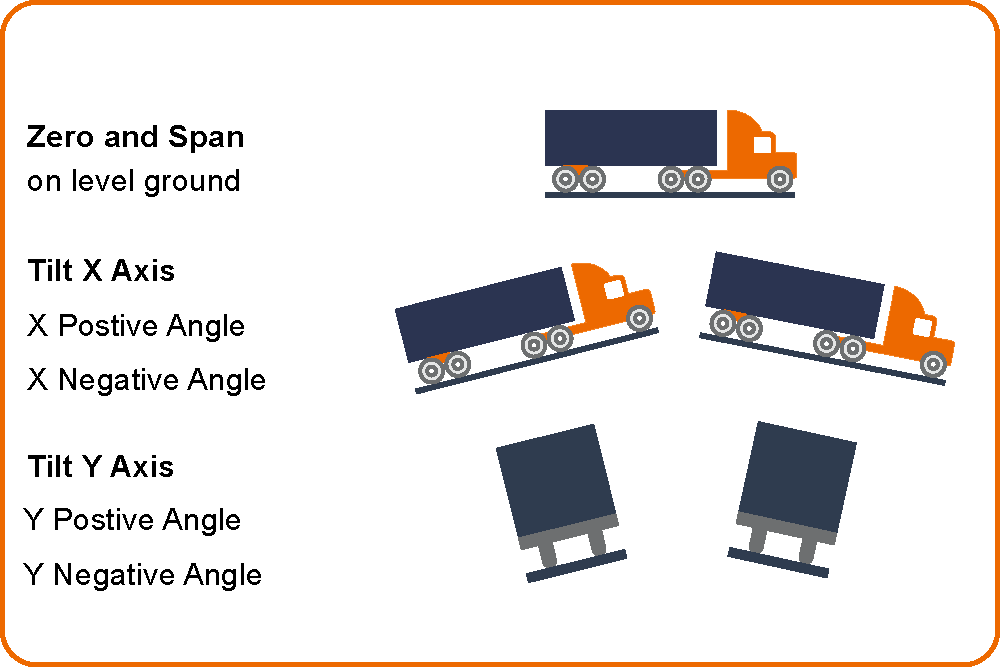

Simple three stage calibration

1.  Zero Calibration (at 0 angle)

  • Performed on level surface
  • Tilt sensor is automatically set to 0
  • Calibrates out any inaccuracies

2.  Span Calibration (at 0 angle)
3.  Tilt Calibration - this generates four tilt parameters that are used to correct the reading.

...now that's smart weighing!

Product Downloads

The following files are available for download for the R420, R423 and R427 - K491 Firmware. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.

To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.

If a save dialogue box does not appear, right click on the link and select save target as.

Files

  Application Note R42x-K491 Tilt Compensation Setup and Calibration Application Note R42x-K491 Tilt Compensation Setup and Calibration

28/02/2022 - 315KB (PDF) file - R400-730-103-M02

  Indicator Function Comparison Matrix - Rest of World Version Indicator Function Comparison Matrix - Rest of World Version

13/08/2024 - 437KB (PDF) file - SALES-749-294-M01

  Indicator Function Comparison Matrix - US Version Indicator Function Comparison Matrix - US Version

13/08/2024 - 387KB (PDF) file - SALES-749-294-M02

  M4907 Tilt Sensor M4907 Tilt Sensor

01/09/2022 - 64KB (PDF) file - M400-631-100

  R400 Series Brochure - R420 R400 Series Brochure - R420

13/08/2024 - 2MB (PDF) file - R400-764-251-M02

  R400 Series Brochure - R423/ R427 R400 Series Brochure - R423/ R427

13/08/2024 - 2MB (PDF) file - R400-765-251-M02

  R400 Series Data Sheet - K491 R400 Series Data Sheet - K491

13/08/2024 - 572KB (PDF) file - R400-702-450-M01-K491

  R420 K491 software V2.70 R420 K491 software V2.70

26/11/2021 - 540KB (ZIP) file - R400-524-270

  Reference Manual Reference Manual

13/12/2018 - 12MB (PDF) file - R400-600-230
