Description
Key Highlights & Features
- ABS housing IP65
- LED Status Indicator
- NiMH 2500mAh capacity
- Support 22VDC to 28VDC power input
Product Description
These R320 Series accessory boots are IP65 NiMH battery backs that make the R320 indicator into a rechargeable device. The features are:
- 10 x NiMH 'AA' cells, 2500mAh capacity total
- IP65 rated housings: Dust and watertight, increasing reliability and indicator lifetime.
- Power supply operation is fully automatic, requiring only the connection of a plug-pack power supply to initiate charging.

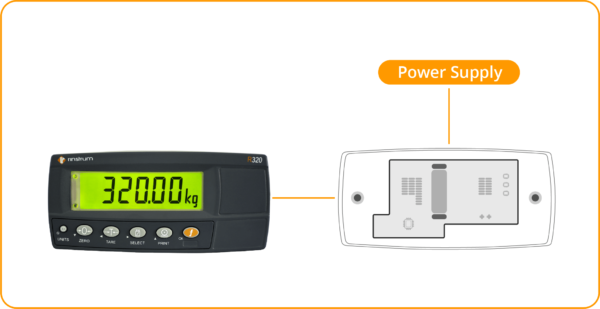

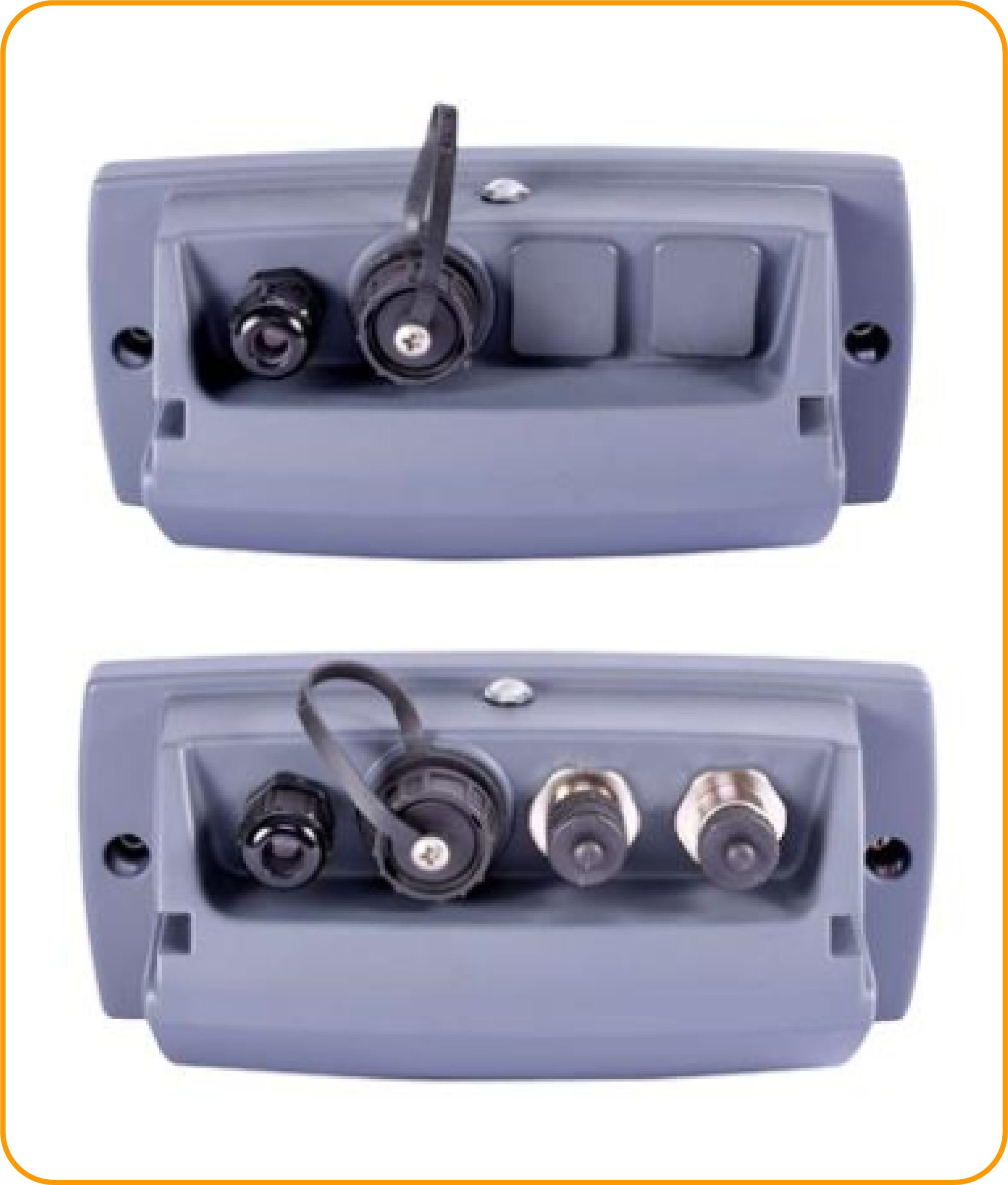

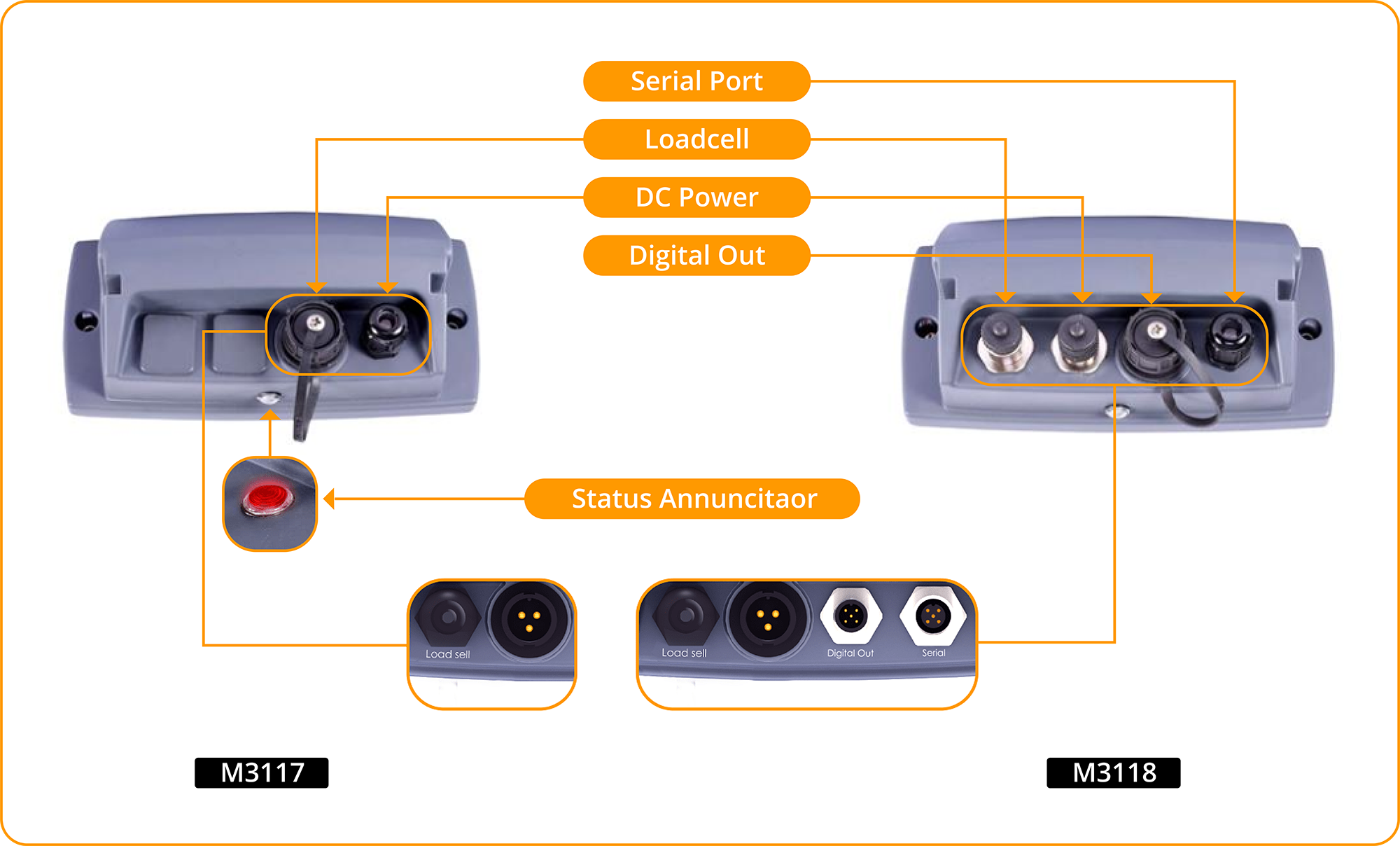

M3117 - M3003 IP65 boot with 3 pin quadrant DC power connector, fitted with 12V NiMh 2.5AH, DC Quadrant charger and PG7 loadcell gland to suit R320 or D320.
M3118 - M3118 is the same as the M3117 but is also fitted with M12 serial and I/O connectors.
The battery charger supports a dual color (Red/Green) LED annunciator to show status.
| Status Annunciator | Input Power | Output Power | Charging | Meaning |
| OFF | Not present | Battery1 | No | Battery operation |
| GREEN | Present | Input | No | Ready |
| RED | Present | Input | Yes | Charging |
| FLASHING GREEN | Present | Input | No2 | Fault3 |
Notes:
- If battery is sufficiently charged.
- It is necessary to remove then reconnect the input power before further charging will occur.
- Refer to troubleshooting section for further information.
Smart Weighing
- While the plug-pack supply is disconnected and enough battery charge remains, the charger will automatically supply the output from battery power.
- To protect the battery pack, the charger will automatically disconnect the output when the battery is below a safe level.
... now that’s smart weighing
Product Downloads
The following files are available for download for the M3117/ M3118 – IP65 Rechargeable Battery Back with Connectors. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.
To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.
If a save dialogue box does not appear, right click on the link and select save target as.
Files
 NiMH Battery Charger
29/07/2020 - 497KB (PDF) file - R300-672-111 |
|
| R300-758-101Page 1M3117/M3118–IP65 Rechargeable Battery Back with Connectors
29/10/2021 - 840KB (PDF) file - R300-758-101 |
