Key Highlights & Features

Product Description

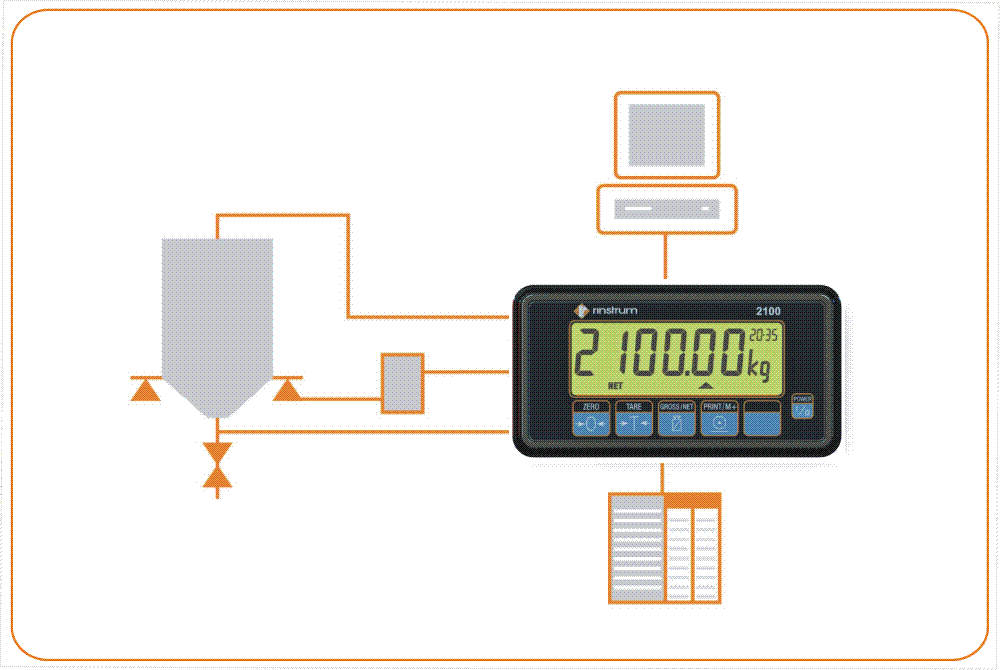

The 2100 series indicators feature a large LCD display in a compact slim line housing. The 2100 combines a practical set of applications, including filling and check weighing, with a range of power and mounting options.

Built in application support

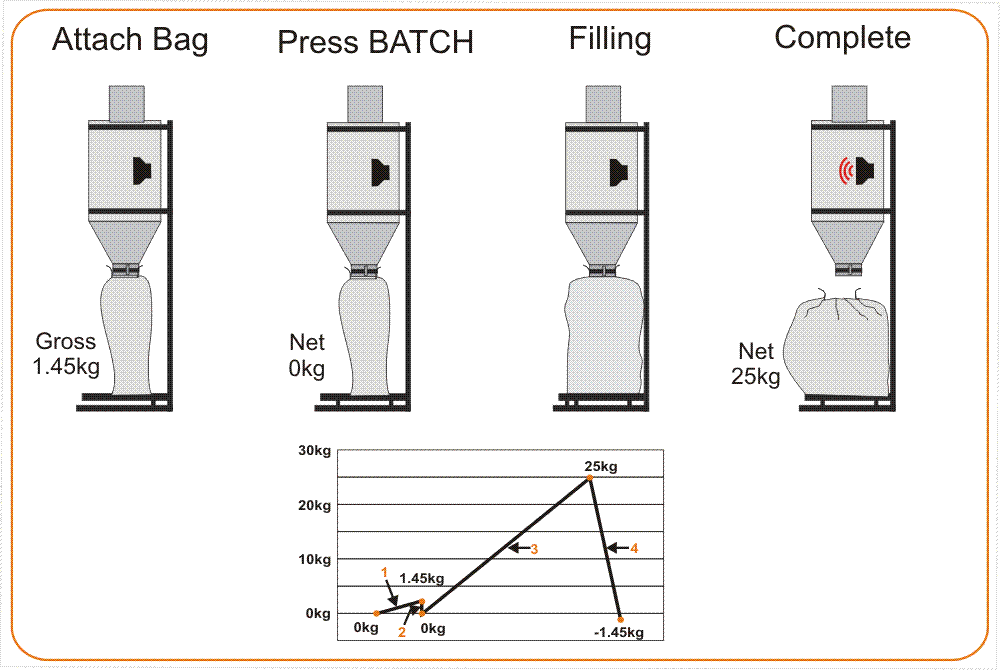

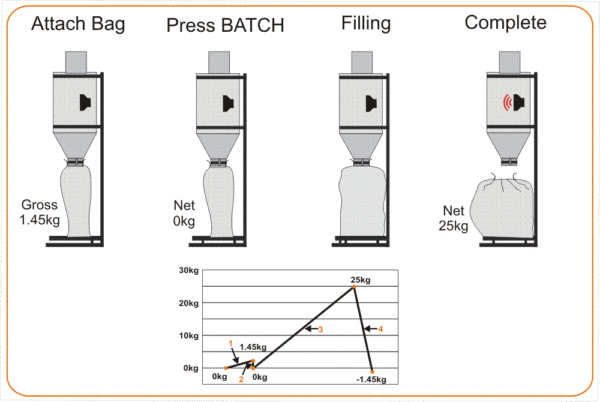

• Single material, two speed filling;
• Check weighing  low, pass and high;
• Basic printing with built in clock calendar;

Three input/outputs standard:Three (3) control points can be configured independently as either inputs or outputs.

Programmable function key: Batch control, Parts counting, Unit switching, Hold and peak hold, Live weight and Total

Suitable in various lighting conditions: The large 27mm high LCD display and LED backlighting make for improved visibility in all lighting conditions.

Flexible power options: The unit is available in four powering options, two DC variants, AC and battery.

Serial Output: The RS232 serial output is provided standard for use with a remote display, printer or connection back to a PC.

Multiple housing options, available standard as panel mount or optionally with a stainless steel housing if a desk mounted IP65 solution is required.

Only 22mm (0.9in) deep, mounts directly on a surface with small cut outs only required for cabling to pass through.

Note regarding Trade Approval:

V2.5 and lower are Trade Approved to 6,000d. As of July 2012 has been modified to V3 hardware and firmware.The 2100 V3 is not valid for trade stamping and no longer covered by NSC (S-403) nor OIML (R76) due to the excitation changing from 8V to 8.5V. V3 is non trade and cannot be stamped.
