D850 Large Remote Display

D850 Large Remote Display

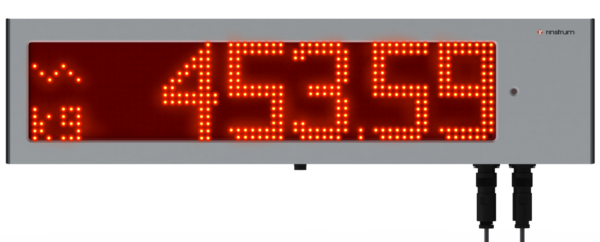

The  D850 is a super bright RED LED display that features alpha-numeric characters allowing for improved clarity in messaging. This is ideal for concrete batching plants or custom site management applications where non-weight related messages such as material names need to be displayed. The D850 supports the majority of printable ASCII characters. This displays is a part of Rinstrum’s range of large remotes that are built for industrial applications for both indoor and outdoor industrial applications.

Visibility:

  • D850 – >70m (230 feet) at 120 degrees viewing angle

Unit Switching**:

  • D850 allows for kg, lb, t and g units to show on display

Decimal Point: The decimal point will be displayed between digits as two LEDs in the D850. The decimal point does not affect number of digits displayed.

**Where unit switching and annunciators are support in the protocol
SKU: 50134 Category:

Description

Key Highlights & Features

  • Alpha numeric characters for improved readability
  • Annunicators**
  • Auto detecting setup
  • Compatibility with large range of indicator manufacturers
  • Isolated RS232/485 Serial Input or Ethernet
  • Super Bright LEDs
  • Unit switching**
  • VAC/VDC Power Options
  • Wide viewing angle

Product Description

The  D850 is a super bright RED LED display that features alpha-numeric characters allowing for improved clarity in messaging. This is ideal for concrete batching plants or custom site management applications where non-weight related messages such as material names need to be displayed. The D850 supports the majority of printable ASCII characters. This displays is a part of Rinstrum's range of large remotes that are built for industrial applications for both indoor and outdoor industrial applications.

Visibility:

  • D850 - >70m (230 feet) at 120 degrees viewing angle

Unit Switching**:

  • D850 allows for kg, lb, t and g units to show on display

Decimal Point: The decimal point will be displayed between digits as two LEDs in the D850. The decimal point does not affect number of digits displayed.

**Where unit switching and annunciators are support in the protocol

Smart Weighing

Alpha Numeric Characters for improved readability

D850 have 14 x 64 LED matrix at 14 x 8 LEDs per character allowing for the majority of printable ASCII characters to be displayed

...now that's smart weighing!

Product Downloads

The following files are available for download for the D850 Large Remote Display. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.

To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.

If a save dialogue box does not appear, right click on the link and select save target as.

Files

  D8xx D7xx Colour Poster D8xx D7xx Colour Poster

25/02/2019 - 1MB (PDF) file - D800-707-100-M02

  Remote Display Comparison Matrix Remote Display Comparison Matrix

03/05/2020 - 0 (PDF) file - SALES-723-102

  Remote Displays Brochure: D732, D841, & D850 Remote Displays Brochure: D732, D841, & D850

04/09/2024 - 2MB (PDF) file - D800-704-252-M02-EN

  Remote Displays Datasheet: D732, D841, & D850 Remote Displays Datasheet: D732, D841, & D850

27/08/2024 - 803KB (PDF) file - D800-700-351-M01

  Rinstrum Legacy Remote Display Configurator Rinstrum Legacy Remote Display Configurator

16/05/2023 - 57KB (ZIP) file - D800-505-100

  Rinstrum Remote Display Configurator Rinstrum Remote Display Configurator

08/01/2019 - 84KB (ZIP) file - D800-500-120
