D841 Super Bright LED Alpha Numeric Display

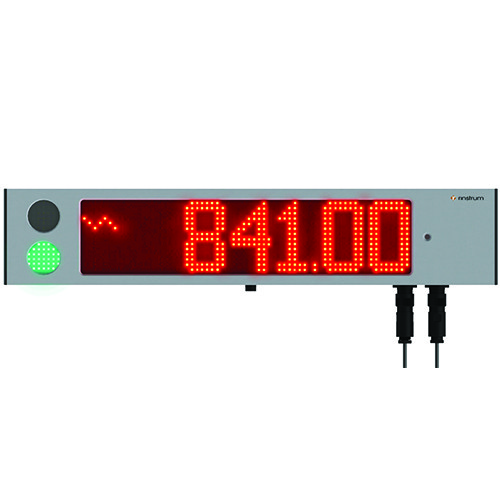

The  D841 is a super bright RED LED display that features alpha-numeric characters allowing for improved clarity in messaging. This is ideal for concrete batching plants or custom site management applications where non-weight related messages such as material names need to be displayed. The D841 supports the majority of printable ASCII characters. This displays is a part of Rinstrum’s range of large remotes that are built for industrial applications for both indoor and outdoor industrial applications.

Visibility:

  • D841 – >30m (100 feet) at 120 degrees viewing angle

Unit Switching**:

  • D841 allows for kg, lb, t and g units to show on display

Traffic Lights**: The D841 traffic lights (50mm/2 inch round red and green) can be driven from discrete inputs or directly via the communications protocol. The universal inputs will accept clean contact switches or voltages 5-24V to control the traffic lights.

Decimal Point:

The decimal point will be displayed between digits as two LEDs in the D841. The decimal point does not affect number of digits displayed.

Scrolling Messaging :

The D841 can be fitted with K802 firmware for moving messages to interface with a PC or equivalent device. With a fixed format text string length of up to 150 characters it is ideal for providing instructional messages to truck drivers or equipment operators. (K802 firmware option is factory fit only).



**Where unit switching , traffic lights and annunciators are support in the protocol

SKU: 1108 Category:

Description

Key Highlights & Features

  • Alpha numeric characters for improved readability
  • Annunicators**
  • Auto detecting setup
  • Compatibility with a wide range of indicator manufacturers
  • Isolated RS232/485 Serial Input or Ethernet
  • Super Bright LEDs
  • Unit switching support **
  • VAC/VDC Power Options
  • Wide viewing angle

Product Description

The  D841 is a super bright RED LED display that features alpha-numeric characters allowing for improved clarity in messaging. This is ideal for concrete batching plants or custom site management applications where non-weight related messages such as material names need to be displayed. The D841 supports the majority of printable ASCII characters. This displays is a part of Rinstrum's range of large remotes that are built for industrial applications for both indoor and outdoor industrial applications.

Visibility:

  • D841 - >30m (100 feet) at 120 degrees viewing angle

Unit Switching**:

  • D841 allows for kg, lb, t and g units to show on display

Traffic Lights**: The D841 traffic lights (50mm/2 inch round red and green) can be driven from discrete inputs or directly via the communications protocol. The universal inputs will accept clean contact switches or voltages 5-24V to control the traffic lights.

Decimal Point:

The decimal point will be displayed between digits as two LEDs in the D841. The decimal point does not affect number of digits displayed.

Scrolling Messaging :

The D841 can be fitted with K802 firmware for moving messages to interface with a PC or equivalent device. With a fixed format text string length of up to 150 characters it is ideal for providing instructional messages to truck drivers or equipment operators. (K802 firmware option is factory fit only).



**Where unit switching , traffic lights and annunciators are support in the protocol

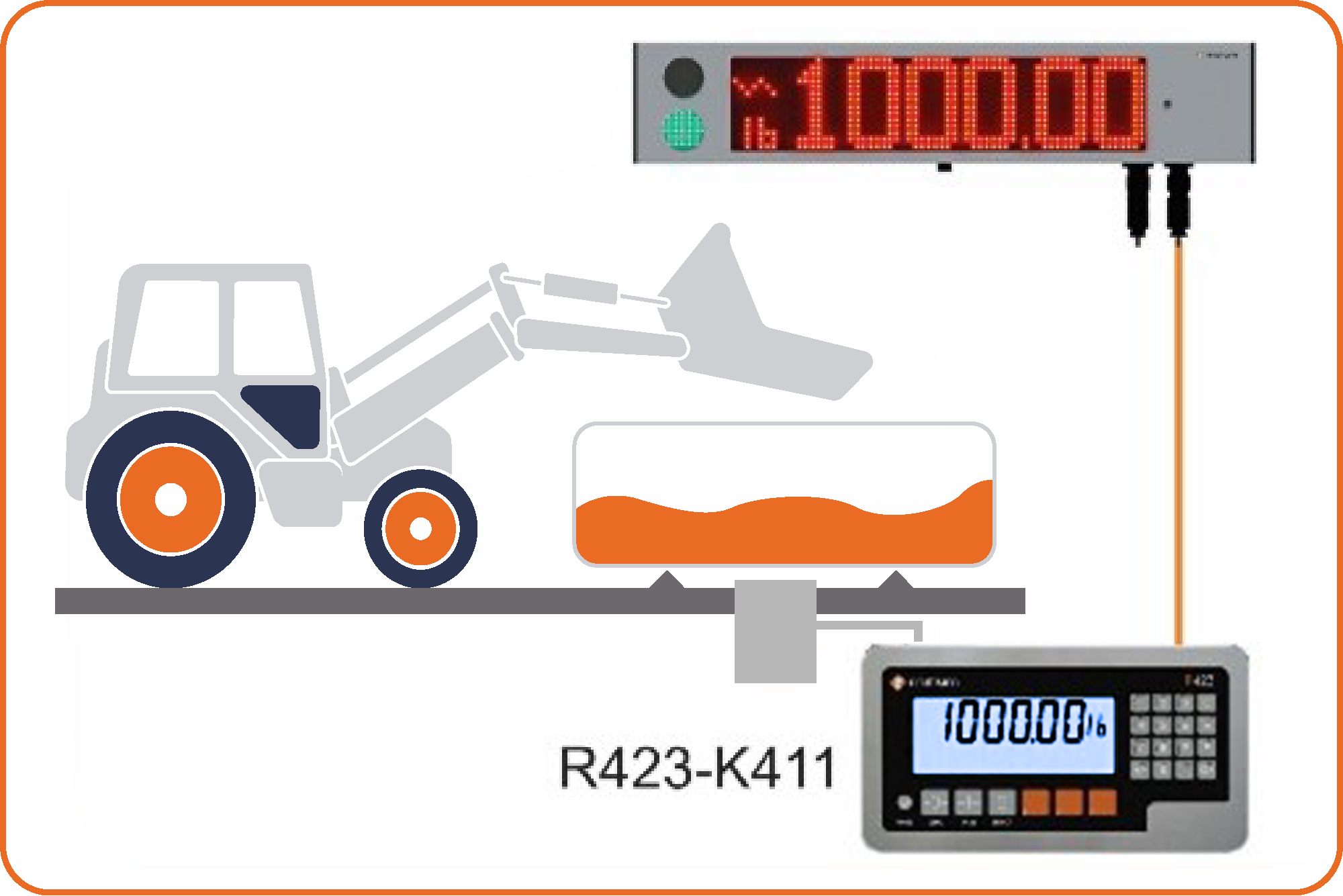

Smart Weighing

 Alpha Numeric Characters for improved readability

  • D841  14 x 64 LED matrix at 14 x 8 LED's per character allowing for the majority of printable ASCII characters to be displayed

...now that's smart weighing

Product Downloads

The following files are available for download for the D841 Super Bright LED Alpha Numeric Display. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.

To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.

If a save dialogue box does not appear, right click on the link and select save target as.

Files

  D8xx D7xx Brochure D8xx D7xx Brochure

08/01/2019 - 2MB (PDF) file - D800-704-200-M04

  D8xx D7xx Colour Poster D8xx D7xx Colour Poster

25/02/2019 - 1MB (PDF) file - D800-707-100-M02

  Data Sheet Data Sheet

08/01/2019 - 488KB (PDF) file - D800-700-310

  Remote Display Comparison Matrix Remote Display Comparison Matrix

22/03/2019 - 219KB (PDF) file - SALES-723-100

  Rinstrum Remote Display Configurator Rinstrum Remote Display Configurator

08/01/2019 - 84KB (ZIP) file - D800-500-120
