Description
Custom Software
Rinstrum first introduced Lua into our weighing technology in 2010. We have been working extensively since then developing our libraries to compliment our 30 years of trade approved firmware that is used on weighing indicators. With many 100’s of Lua applications in the field across Australia, Europe and USA we are continually enhancing our offering.
Lua allows us to build a custom solution for a single site economically and quickly. We use Lua on our R400 series and C500 series indicators through either our MAX offering or custom code development.
Customized program development:
- Inhouse custom software development using Rinstrum Lua Libs.
- Self-host API documentation of Libraries for 3rd party Developers.
- Easy software updating and Backup features.
- Device ports customizations for Office integration.
- Web-Interface for Custom operations, configurations, and data management
- Monitor, Control and Management through Network.
- Data Streaming for External Control Systems
- Transaction Reporting for External Business Systems
- Accepting Commands from External Business Systems
- Lightweight inbuilt DB or SQL support for external DB.
Application Examples:
- Dynamic Rail Scale
- Check weighing portion control using a tablet display with RFID User ID
- Mobile batching with weighing control via web page
- Interface to third party control with touch screen
- Remote weighing with accumulation target and auto email notification
- Trade approved onboard weighing with Price Computing in French

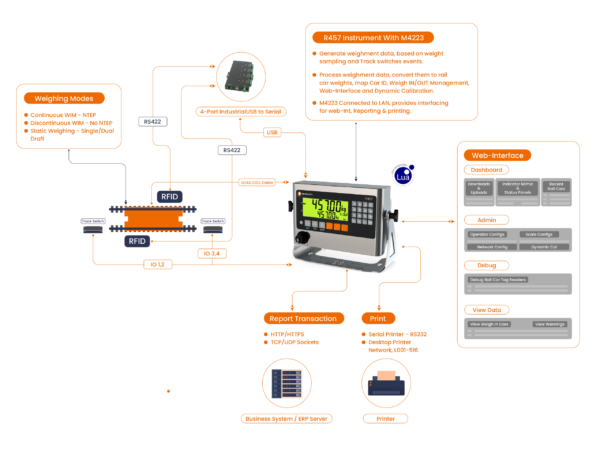

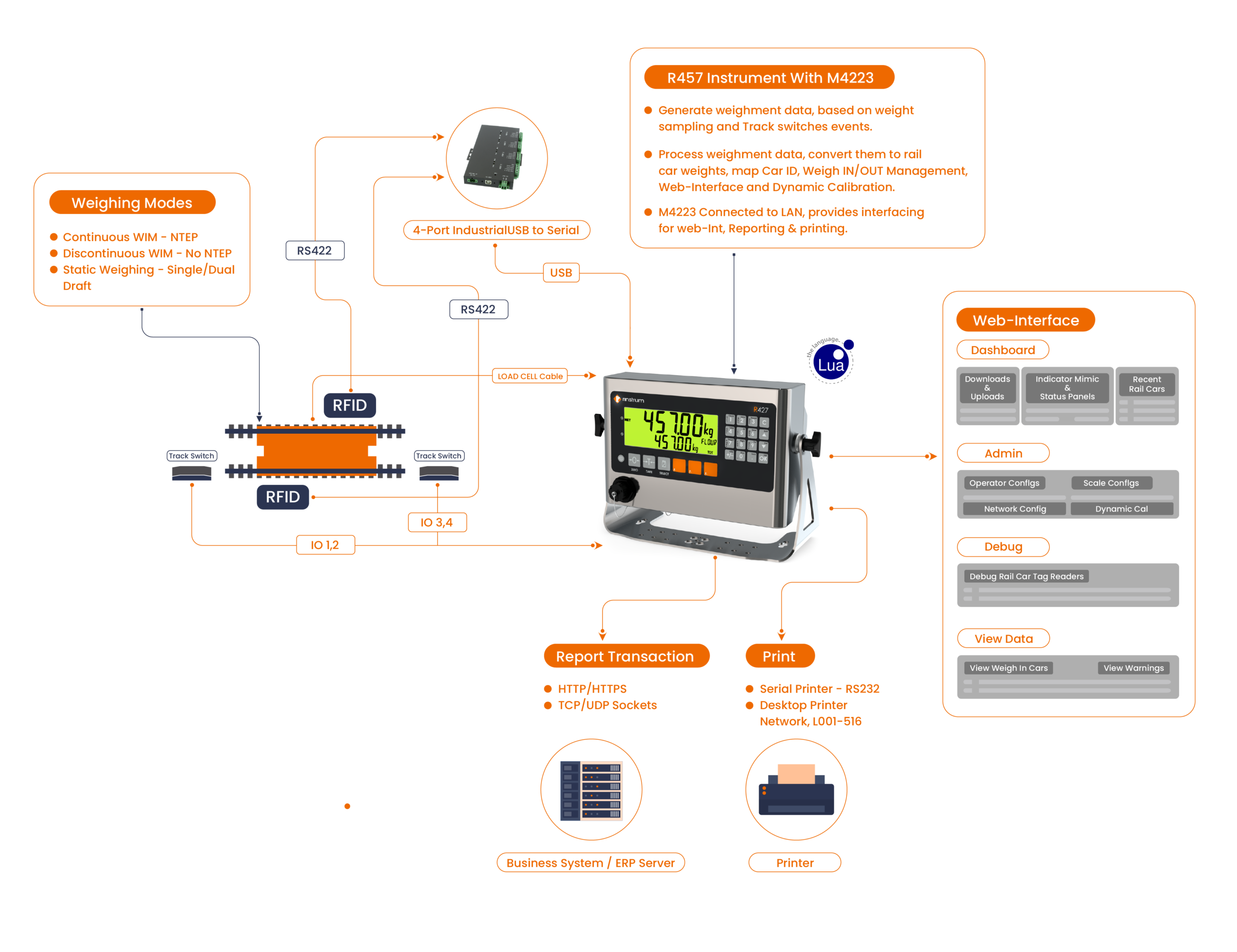

Dynamic Rail Scale
Building on our axleWEIGHr, Rinstrum developed an application to capture rolling carriage weights.
Features:
- Custom interactive web page to display speed, weight and status
- Weigh in motion at 3-5 MPH
- Custom web page for admin
- RFID for carriage identification
Platform: R457 Programmed in Lua

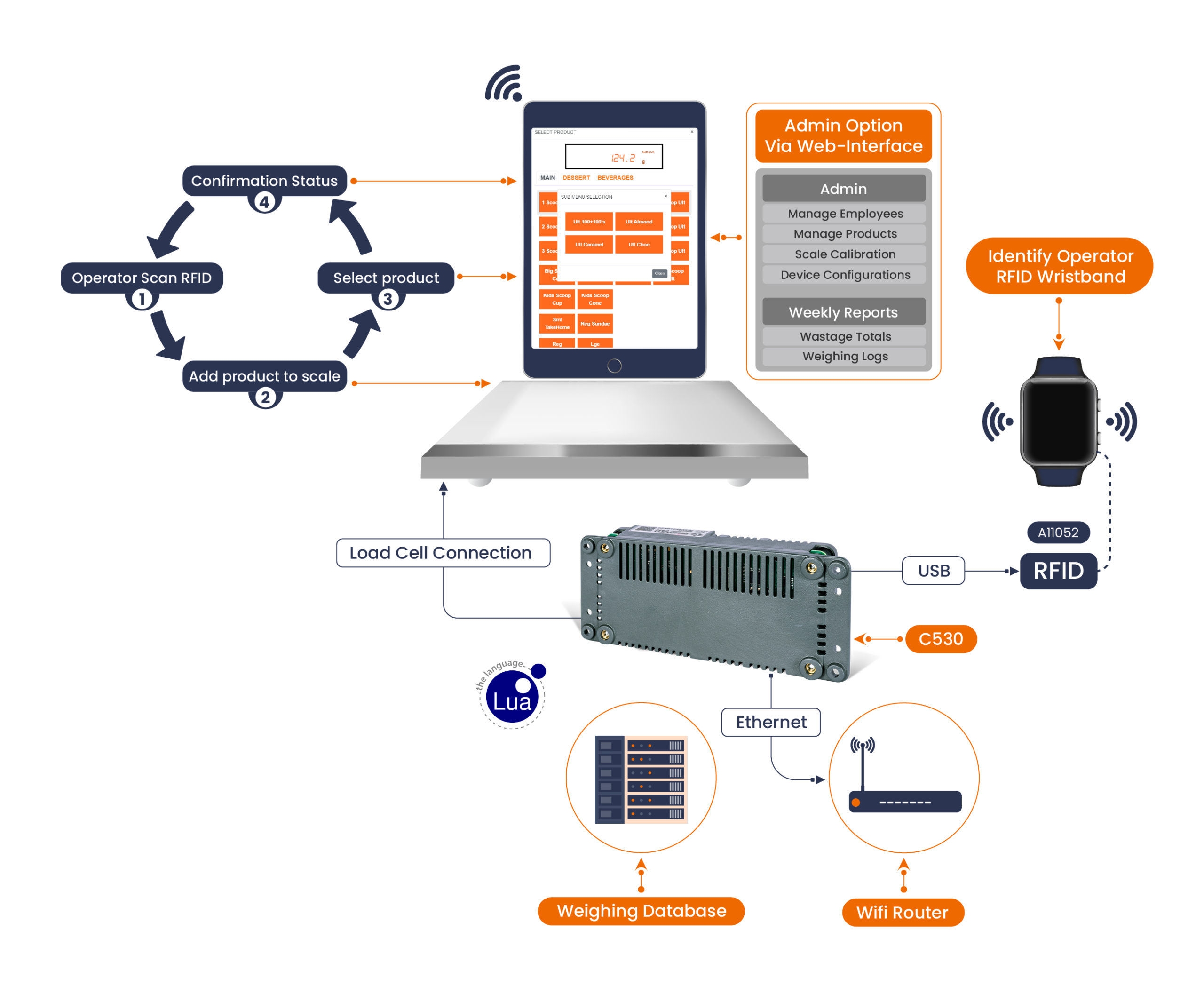

Check weighing portion control using a tablet display with RFID User ID
This application uses a tablet with a custom interface to manage check weighing of product at point of sale for portion management.
Features:
- Custom interactive tablet interface to display weight
- Wi-fi connection between tablet and indicator
- RFID for Operator ID
- Logging in csv file and USB download
Platform: C530 weight transmitter programmed in Lua

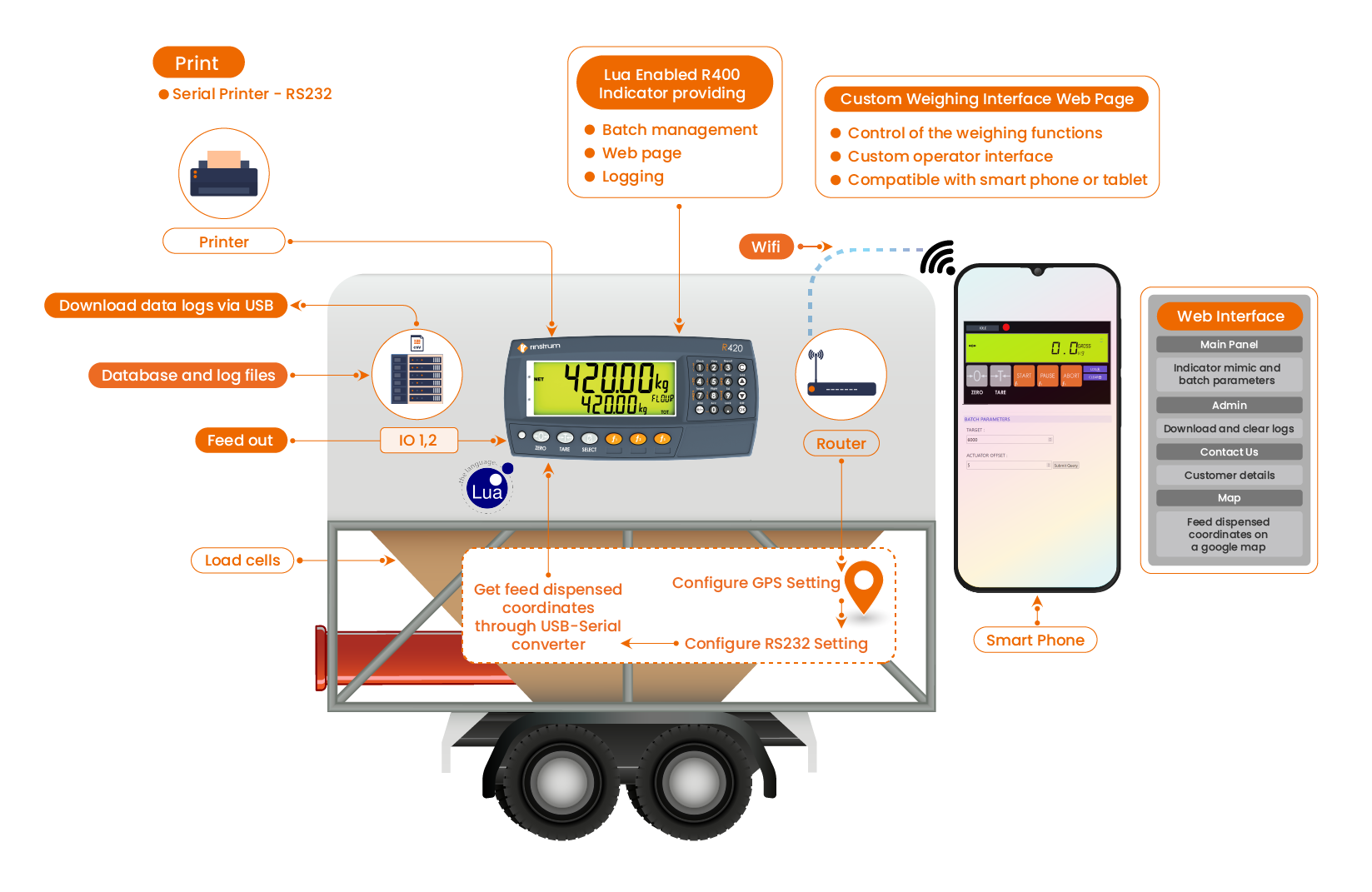

Mobile batching with weighing control via web page
This application provides a custom web interface for the operator to control batch out of product on a trailer.
- Wifi between phone and indicator
- Lua enabled indicator controlling batch out of the product
Full log of batching download via USB

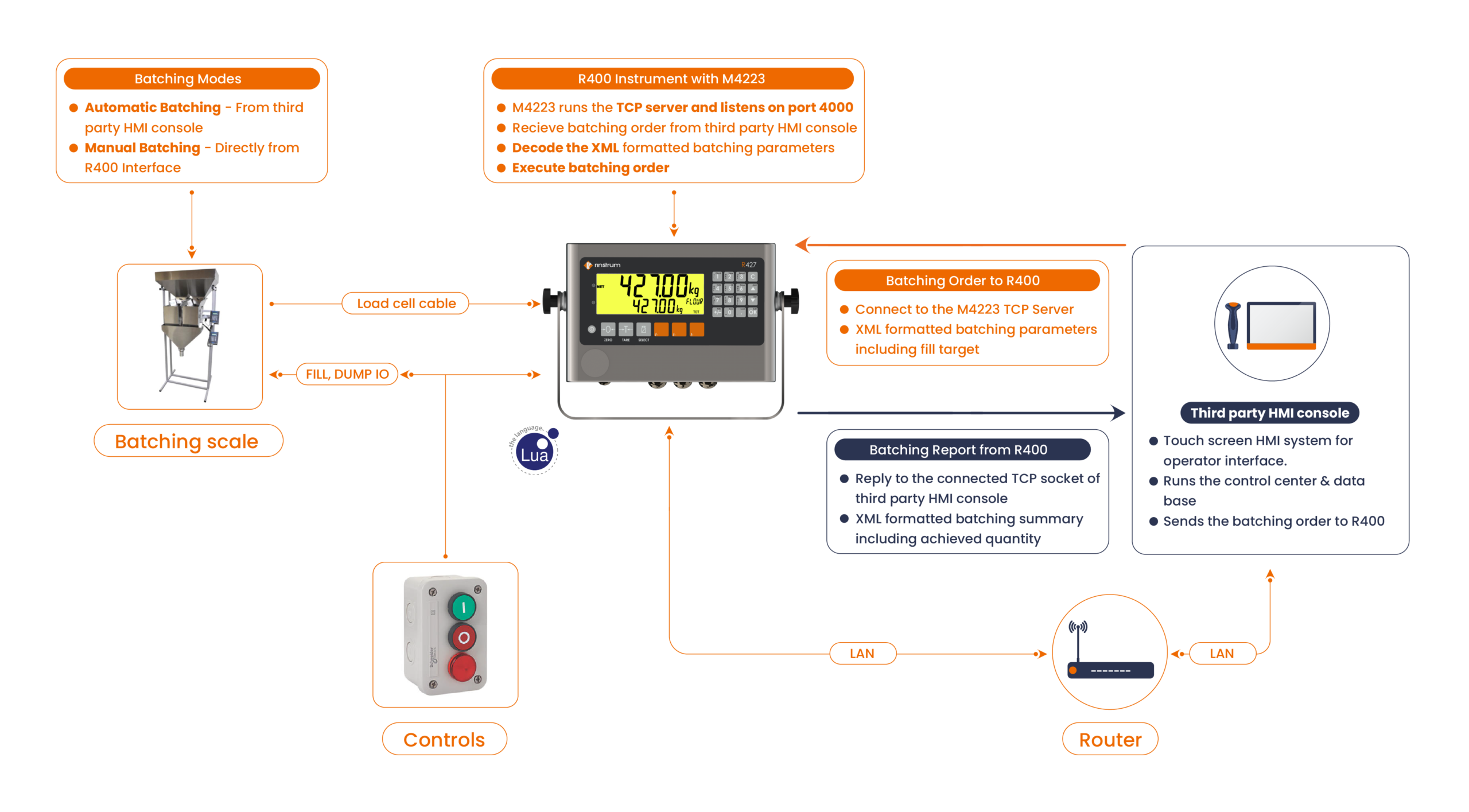

Interface to third party control with touch screen
This application works with third party system using multiple scales with an indicator on each. The touch screens provide the user interface.
- R457 controls batching and managed inputs and outputs, and task execution
TCP Sockets are used for communication, formatted as XML back to third party terminal

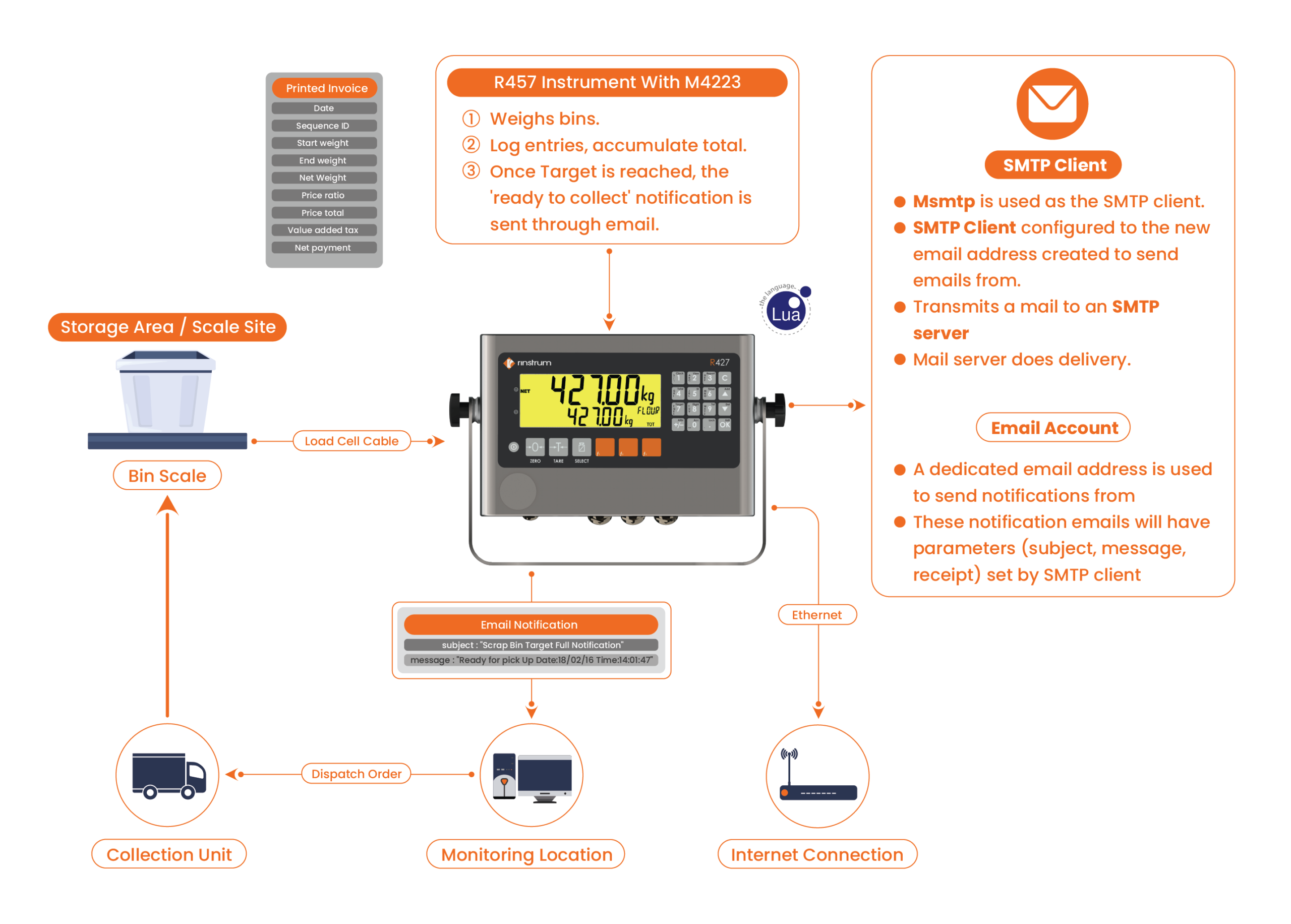

Remote weighing with accumulation target and auto email notification
Rinstrum developed an application to track bin weights, log the accumulated weight and notifying a user via email once the target is reached. Feature:
- Once the target reached and ready for collection a notification email is sent
- Target and tare set through indicator
- msmtp is used as the SMTP client.
Platform:
R457 Programmed in Lua

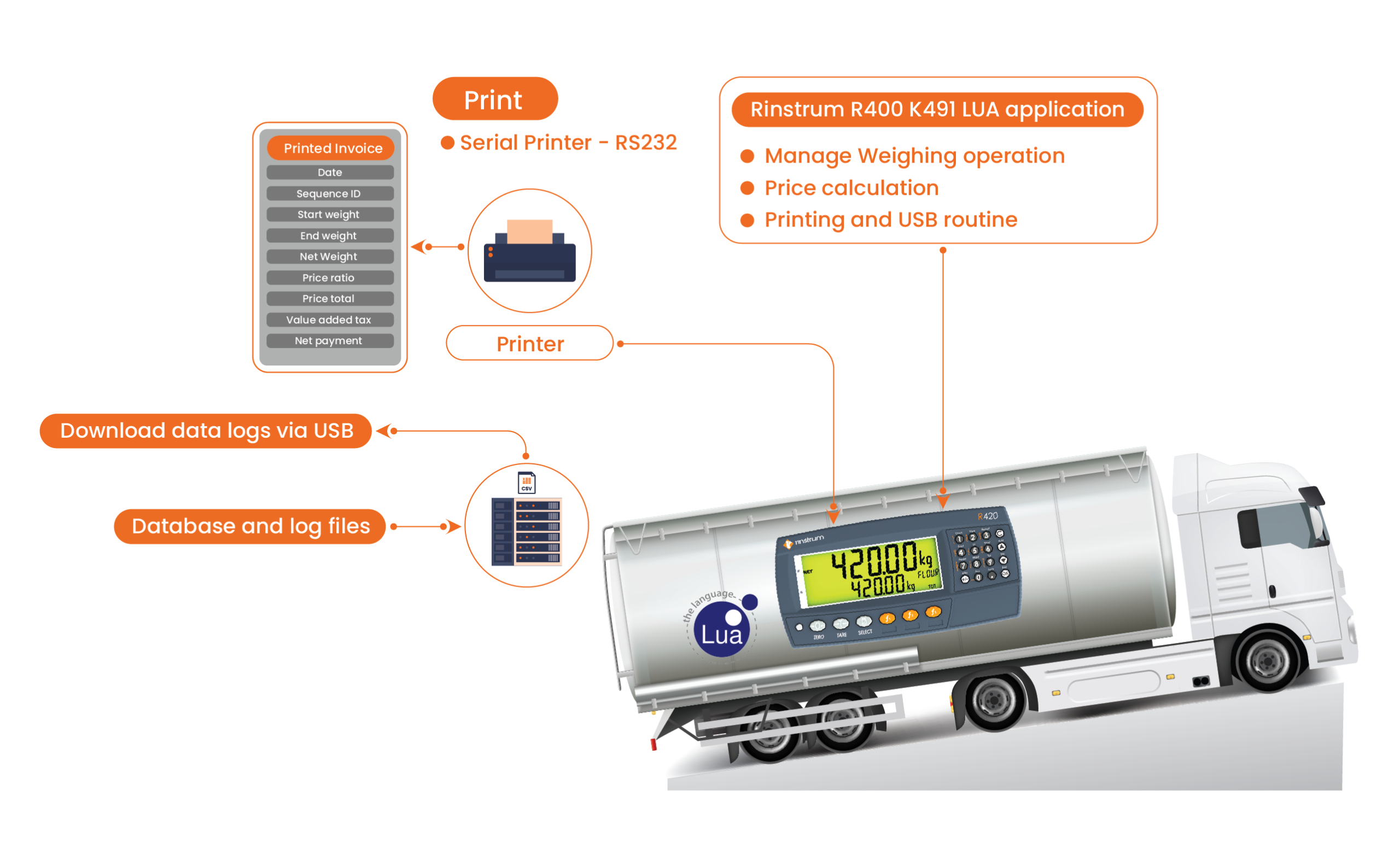

Trade approved onboard weighing with Price Computing in French
The K491 onboard weighing indicator was enhanced through Lua to include price computing and associated custom docket printed in French. Features:
- Price computing for price calculation and VAT
- French custom docket
Platform:
R457 K491 and programmed in Lua
