countR Scale

countR Scale

Rinstrum countR Scales feature our renowned rugged XG stainless steel base fitted with either a R420 or R427 indicator pre-configured for counting applications. countR bench scales are designed for years of easy operator use with an open frame making it easy to clean but also easy to find those dropped items under the pan. The top frame also has mounting points for a user supplied roller conveyor and the pan is robust enough to support ball transfer rollers. Fast response high accuracy loadcell and electronics to measure the smallest parts and pieces with accuracy.

A large multi-line backlight display can be tilted and rotated to the side is necessary, alpha numerical keypad to reduce user keyboard errors and even support for multi languages. The stainless column provides ergonomics plus it keeps the display away from falling parts or keyboard away from being covered by boxes or containers. countR can store up to 250 products with average piece weights being able to be viewed and updated, preset tare functionality, product count and weight totalising, custom printing with date and time and up to 6 user defined fields. 3 preconfigured setpoints available for checking over and under piece count or for use with a RYG light stack. As with all of our R420 and R427’s there is the optional LUA databasing functionality, optional USB scanner input and ethernet network connectivity, datalogging to ensure accountability and additional I/O if necessary and to future proof your purchase.

Built to last
  •  Quality IP65 aluminium load cell
  • 300 x 300mm (12 in x 12 in) pan CR3030
  •  300 x 400mm (12 in x 16 in) pan CR3040
  •  Maximum Capacity and readability.
    • AU – CR3030 30kg x 0.001kg (66lbs x 0.002lbs)
    • US – CR3030 45kg x 0.001kg (100lbs x 0.002lbs)
    • US – CR3040 68kg x 0.002kg (150lbs x 0.005lbs)
  • 304 stainless tubular steel frames
  • Overload protection stops.
  • Replaceable Keypads
  • Overload recording increments every time the scale is overloaded.
  • Future proof with LUA and USB and Ethernet options.
  • 2 Year Warranty
Easy maintenance & operation
  • Clear open frame – Easy to keep clean and find parts under the pan.
  • Sturdy pan construction – No warping
  •  2 Axis rotating head – For best operator viewing angle.
  • Has ability to mount on roller conveyor or ball transfers.
  • Language support for Spanish, French, German and Polish.

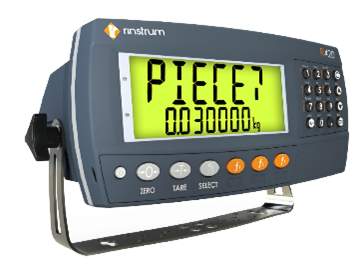

R420
  • ABS housing
  • AC/DC/Battery Power Options
  • Operator friendly with multiline display and alpha numeric keypad
  • Lua programmability option
  • USB Host Port, Ethernet Port option

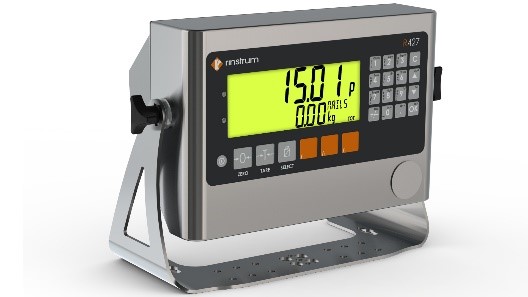

R427
  •  Stainless steel housing
  • AC/DC/Battery Power Options
  • Operator friendly with multiline display and alpha numeric keypad
  •  Lua programmability option
  • USB Host Port, Ethernet Port option
Multi-Segment Display



SKU: 1090 Category:

Description

Key Highlights & Features

  • 5-point overload protection
  • Adjustable feet with levelling bubble
  • Built in AC power supply and line cord
  • Ethernet and database functionality optional
  • IP 65 Aluminium Load Cell
  • Pre-configured for counting 250 products
  • Printer and scanners optional
  • R420 ABS or R427 Stainless steel indicator.
  • Stainless steel frame pan and column

Product Description

Rinstrum countR Scales feature our renowned rugged XG stainless steel base fitted with either a R420 or R427 indicator pre-configured for counting applications. countR bench scales are designed for years of easy operator use with an open frame making it easy to clean but also easy to find those dropped items under the pan. The top frame also has mounting points for a user supplied roller conveyor and the pan is robust enough to support ball transfer rollers. Fast response high accuracy loadcell and electronics to measure the smallest parts and pieces with accuracy.

A large multi-line backlight display can be tilted and rotated to the side is necessary, alpha numerical keypad to reduce user keyboard errors and even support for multi languages. The stainless column provides ergonomics plus it keeps the display away from falling parts or keyboard away from being covered by boxes or containers. countR can store up to 250 products with average piece weights being able to be viewed and updated, preset tare functionality, product count and weight totalising, custom printing with date and time and up to 6 user defined fields. 3 preconfigured setpoints available for checking over and under piece count or for use with a RYG light stack. As with all of our R420 and R427’s there is the optional LUA databasing functionality, optional USB scanner input and ethernet network connectivity, datalogging to ensure accountability and additional I/O if necessary and to future proof your purchase.

Built to last
  •  Quality IP65 aluminium load cell
  • 300 x 300mm (12 in x 12 in) pan CR3030
  •  300 x 400mm (12 in x 16 in) pan CR3040
  •  Maximum Capacity and readability.
    • AU - CR3030 30kg x 0.001kg (66lbs x 0.002lbs)
    • US - CR3030 45kg x 0.001kg (100lbs x 0.002lbs)
    • US - CR3040 68kg x 0.002kg (150lbs x 0.005lbs)
  • 304 stainless tubular steel frames
  • Overload protection stops.
  • Replaceable Keypads
  • Overload recording increments every time the scale is overloaded.
  • Future proof with LUA and USB and Ethernet options.
  • 2 Year Warranty
Easy maintenance & operation
  • Clear open frame – Easy to keep clean and find parts under the pan.
  • Sturdy pan construction – No warping
  •  2 Axis rotating head – For best operator viewing angle.
  • Has ability to mount on roller conveyor or ball transfers.
  • Language support for Spanish, French, German and Polish.
R420
  • ABS housing
  • AC/DC/Battery Power Options
  • Operator friendly with multiline display and alpha numeric keypad
  • Lua programmability option
  • USB Host Port, Ethernet Port option
R427
  •  Stainless steel housing
  • AC/DC/Battery Power Options
  • Operator friendly with multiline display and alpha numeric keypad
  •  Lua programmability option
  • USB Host Port, Ethernet Port option
Multi-Segment Display



Smart Weighing

A scale pre-configured for Counting with check weighing functionality.

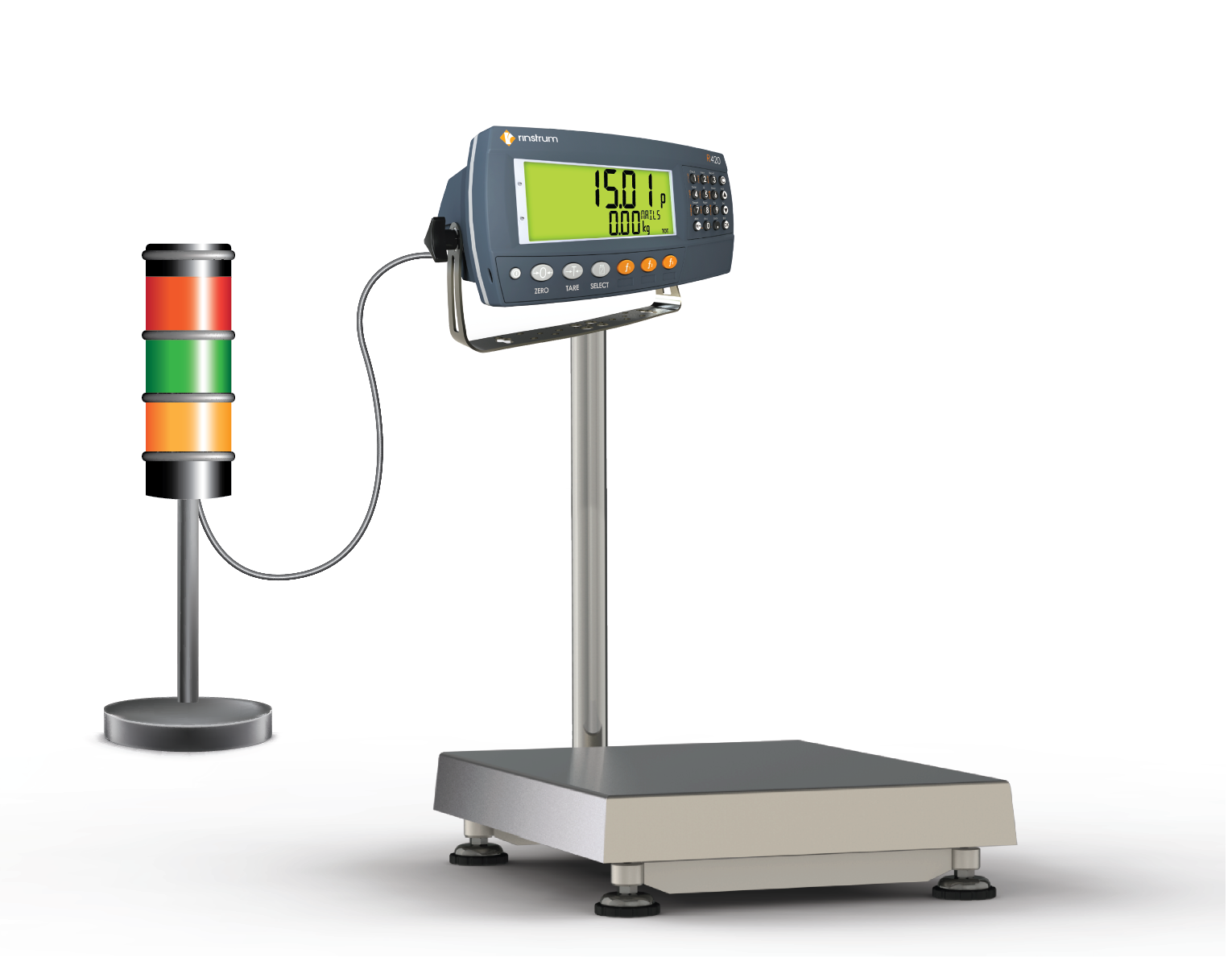

countR scales are pre-configured for counting applications. The in-built check weighing function can be used to define two set points to indicate when the product count is reached to a certain value. Optional stack light can be connected to the scale easily for the indication of the check weighing.

...now that’s smart weighing

Product Downloads

The following files are available for download for the countR Scale. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.

To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.

If a save dialogue box does not appear, right click on the link and select save target as.

Files

  countR Scale - Brochure countR Scale - Brochure

12/08/2022 - 399KB (PDF) file - X00G-702-102-M04

  countR Scale - Data Sheet countR Scale - Data Sheet

12/08/2022 - 311KB (PDF) file - X00G-701-103

  countR scales - Reference Manual countR scales - Reference Manual

01/03/2021 - 4MB (PDF) file - X00G-601-101
