Description
Key Highlights & Features
- 10,000d @ 0.5 uV/d
- 16 x 350Ω load cells
- 8 set points (option)
- AC and DC versions
- Embedded web server
- Ethernet and USB host and slave standard
- Lua programmable option
- MODBUS TCP/IP, ASCII, RTU
Product Description
C500 Series is Rinstrum's latest panel mounted industrial process controller equipped with modern interfaces and increased accuracy. The C500 Series is the culmination of 25 years of innovative weighing controller design, bringing together the best of our R400 and 5000 Series.

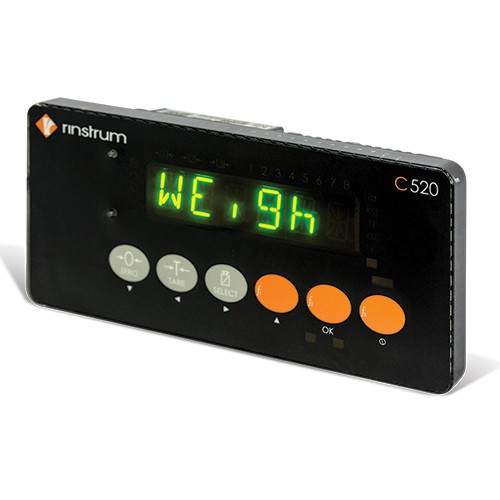

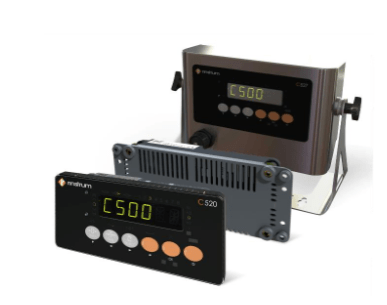

Three models are available in the C500 Series. The C520 has a high-contrast LED display and 6-button keypad. The C530 is the same weighing electronics, din rail mounted with no display. When panel mounted, the C520 uses a standard ½ DIN cut out and can generally be used as a direct drop-in replacement for the Rinstrum 5000 and other process controllers like the HBM WE2110 and WE2111.
The C527 is IP65 rated waterproof stainless-steel housing unit with all C500 series weighing capabilities. It comes with wall, desk and pole mounting options and is available as either a factory fit AC or DC version.
Ideal applications for the C500 Series include truck weighing, process control, OEM, and programmable solutions using the embedded Lua scripting engine.

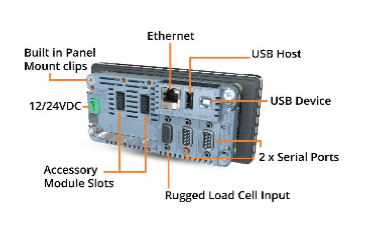

Connectivity
USB Host and Slave, Ethernet and Modbus are standard
- USB Keyboard, printer, mass storage and serial connections
- Multi-unit Ethernet network connection to a PC or HMI
- Connection to PLC using Modbus, optional Ethernet/IP package or Analog output module
- Ethernet or magnetically coupled rinLINK provide a temporary connection to a laptop for configuration and diagnostics
Ethernet/IP support with optional software
Modules
- 8 Input/Output (I/O)
- Analog output including two isolated I/O
- Isolated RS232 and RS485
Smart Weighing

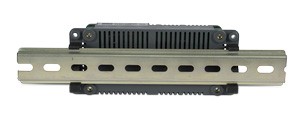

Smart Weighing - C530
- Ideal for DIN rail mounting
- Setup via the PC using Rinstrum C500 Viewer
- rinLINK connector on the rear for quick temporary connection to the PC
...now that's smart weighing.
Product Downloads
The following files are available for download for the C520, C530 and C527 Industrial Weight Controllers. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.
To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.
If a save dialogue box does not appear, right click on the link and select save target as.
Files
 C500 Colour Brochure
24/03/2022 - 3MB (PDF) file - C500-703-111-M04 |
|
| C500 Poster
09/09/2019 - 1MB (PDF) file - C500-707-110-M02 |
|
| C500 Reference Manual
02/06/2021 - 11MB (PDF) file - C500-600-2.0.4-M01 |
|
| C500-K501 C500 Main Application Software
20/01/2022 - 335KB (ZIP) file - C500-500-2.0.5-M02 |
|
| C520 Calibration Sheet
10/12/2019 - 630KB (PDF) file - C500-702-110 |
|
| C520 Deskmount assembly guide
20/09/2018 - 2MB (PDF) file - C500-601-100-M02 |
|
| C520 Panel Mount Installation Guide
08/12/2022 - 187KB (PDF) file - C500-602-100-M02 |
|
| C520/530 Data Sheet
27/09/2024 - 4MB (PDF) file - C500-700-170 |
|
| C527 Colour Brochure
19/01/2022 - 1MB (PDF) file - C500-712-101 |
|
| Indicator Function Comparison Matrix
27/09/2024 - 454KB (PDF) file - SALES-749-295-M01 |
|
| Rinstrum Ethernet/IP implementation for C500 & M4223
24/11/2023 - 155KB (ZIP) file - L900-501-110-M02 |
|
| Sealing Methods - C510, C520, C527
10/03/2023 - 564KB (PDF) file - M500-650-M01 |
|
| Sealing Methods - C530
10/03/2022 - 333KB (PDF) file - M500-650-M02 |
|
| Viewer Software
23/11/2020 - 1MB (ZIP) file - C500-510-2.0.2 |
