Key Highlights & Features

Product Description

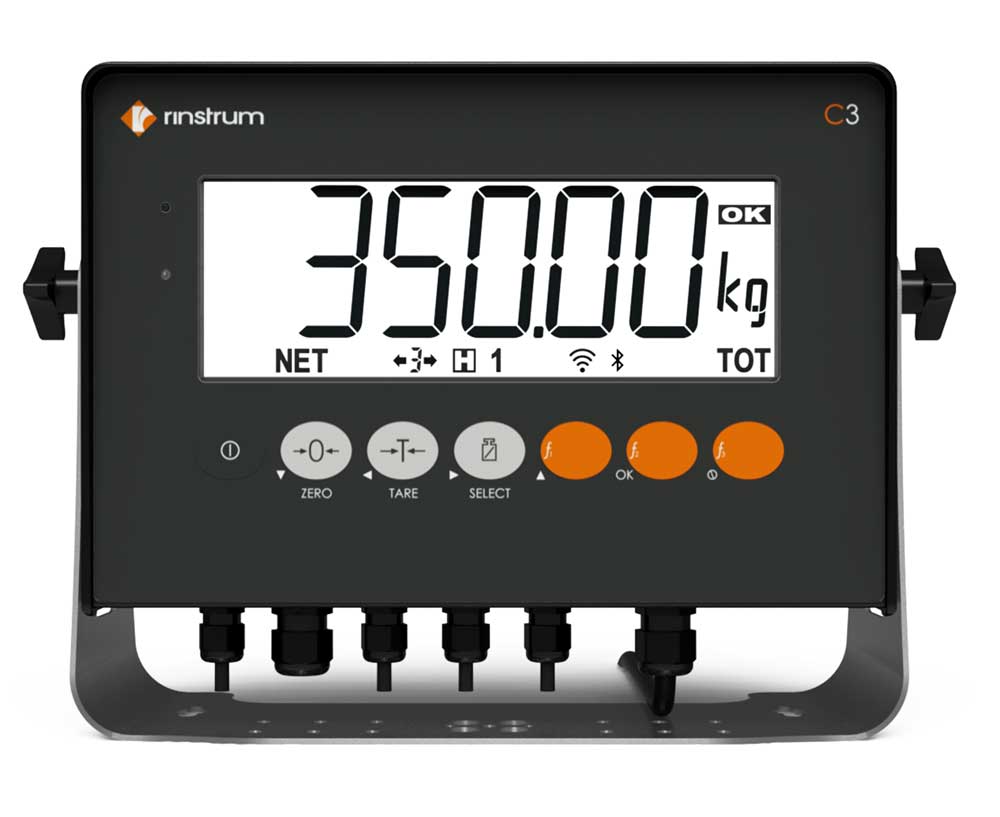

The C350 resin alloy full housing indicator and C357 stainless steel full housing indicators are the latest versions of Rinstrum’s C300 series. These features a 50.8mm/ 2in LCD display with RGB backlight together with flush polyester overlay with mechanical keys. These are fully sealed and have durable chemical resistance. Custom printing, accumulation and advanced set pointing including latching outputs are some Firmware applications.

C350 and C357 are built with two RS232 bidirectional serial ports independently configurable for network, printing, or remote display functions and two accessory card slots for increased functionality. The communication cards offer increased options and expansion cards cover additional functions.

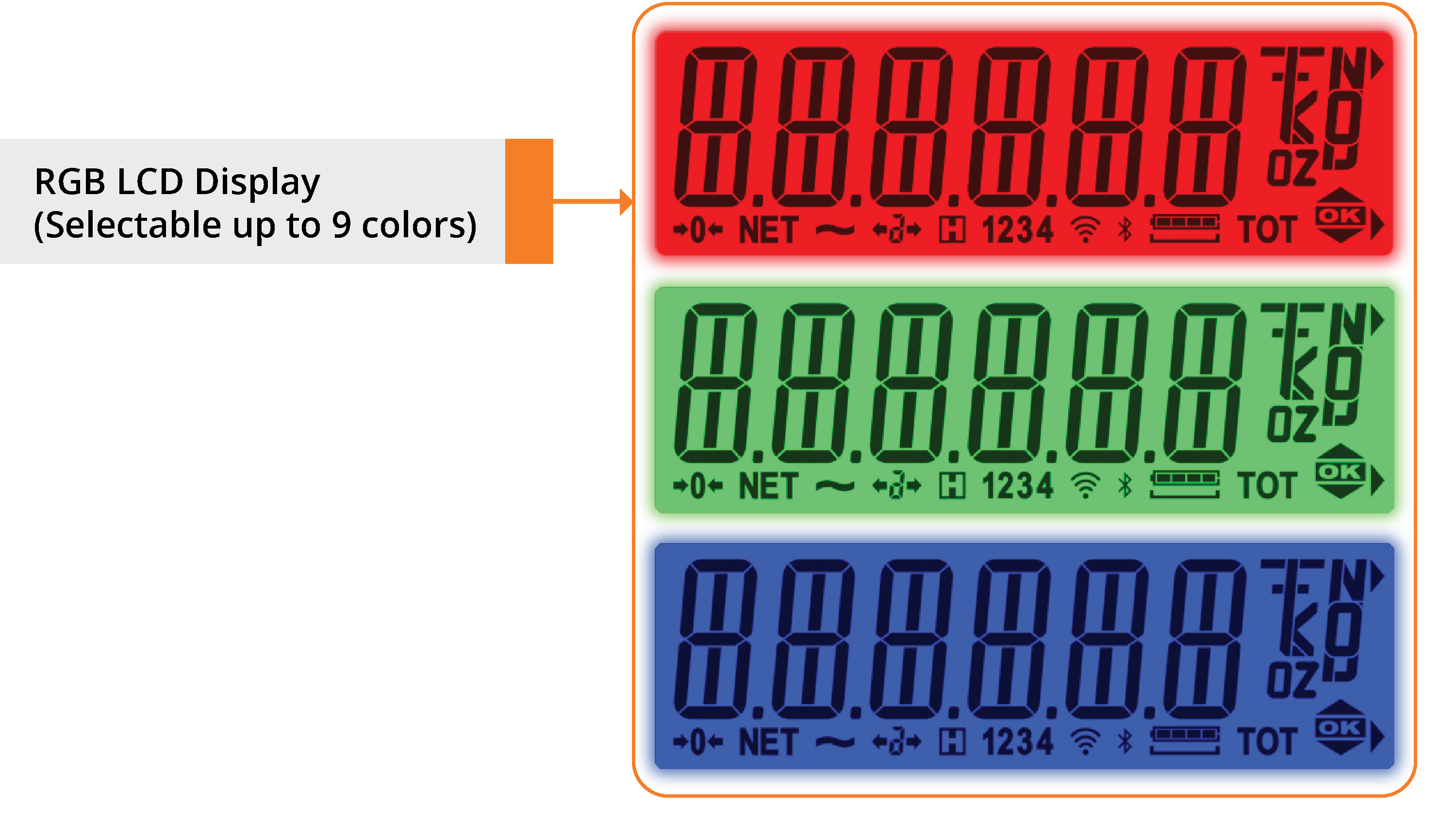

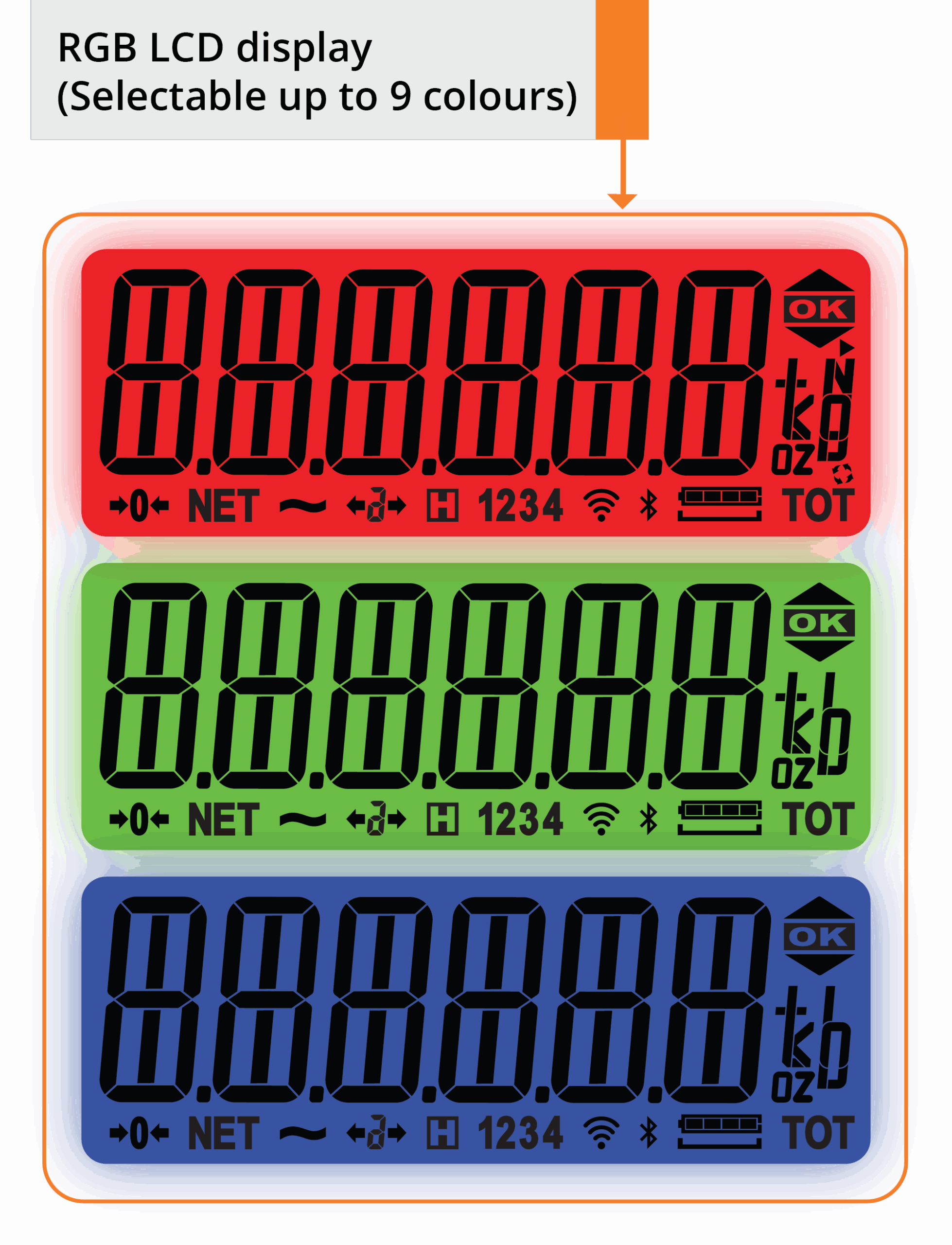

• 50.8mm (2in) LCD display with RGB backlight: to improve visibility and readability of the weight display and RGB backlight for easy check weighing applications.
• Wide DC operation (5-24V): to suit a variety of onboard vehicle and industrial applications.
• Two RS232 bidirectional serial ports: independently configurable for network, printing or remote display functions.
• Inputs and Outputs: Two digital inputs and two high-side digital outputs that are electrically isolated. Outputs are capable of driving low voltage DC actuators directly
• Onboard data storage: compliant to WELMEC 7.2 (alibi memory DSD)
• rinLINK: magnetically coupled link on front fascia for easy access in situ for updates/setup of the indicator, saving the installer time and effort.
• Flush polyester overlay with mechanical keys: no membrane key to wear out, easy to keep clean, fully sealed, durable chemical resistance, improves uv resistance.
• Printing: Multiple standard print dockets through to fully programmable print formats that can be easily created with the drag and drop configuration tool rinPRINT.
