Product Description

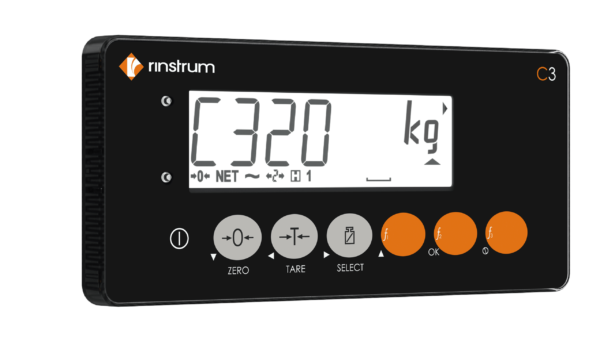

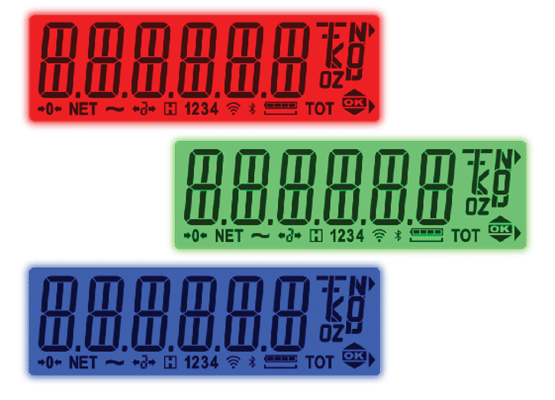

The C320 is Rinstrum’s latest compact panel mount indicator that is ideal for use in mobile applications such as forklifts, platforms, inside truck cabs, crane scales and OEM applications. Ideal for basic weight-control or level-control functions using the general or advanced setpoints and checking weighing. Both functions offer an improved operator interface with the multi-coloured backlight. Like the R3 Series the C320 can be combined with a desk mount or IP65 boot to make a full housing unit that can be used on a desk or pole mounted. The C320 supports a new range of accessory cards. The communication cards offer increased options and expansion cards cover additional functions.

• Wide DC operation (5-24V)/ USB lead: to suit a variety of onboard OEM applications. The USB lead eliminates the need for third party power supplies saving on system complexity and cost.
• Two RS232 bidirectional serial ports: independently configurable for network, printing or remote display functions.
• Inputs and Outputs: Two digital inputs and two high-side digital outputs that are electrically isolated. Outputs are capable of driving low voltage DC actuators directly
• Onboard data storage: compliant to WELMEC 7.2 (alibi memory DSD)
• rinLINK: magnetically coupled link on front fascia for easy access in situ for updates/setup of the indicator, saving the installer time and effort.
• Flush polyester overlay with mechanical keys: no membrane key to wear out, easy to keep clean, fully sealed, durable chemical resistance, improves uv resistance.
• Printing: Multiple standard print dockets through to fully programmable print formats that can be easily created with the drag and drop configuration tool rinPRINT.
