Process Control
The R400, 5000 and 1203 indicators are all suitable for process control applications with their analogue output support, isolated I/O and RS232/RS485 communications.
The R400 is expandable up to 32 I/O for larger installations. The 1203 is lead free.
Supported Products
The C500 series are compact panel mount indicators that support connection to PLC using Modbus, Ethernet IP or analogue output (optional module), making them ideal for process control applications. They come with multi-unit Ethernet network connection, and 8 I/O and analogue output including two isolated I/O.
- The C510 has a high-contrast LED display and 5-button keypad.
- The C520 has a high-contrast LED display and 6-button keypad.
- When panel mounted, both C510 and C520 uses a standard DIN cut out and can generally be used as a direct drop-in replacement for the Rinstrum 5000.
- The C530 is the same weighing electronics, din rail mounted with no display.

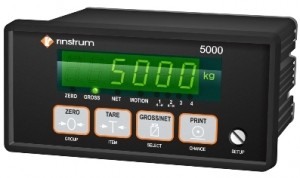

The 5000 with its analogue output module and support for common industry standards used in process control make it suitable for system integration:
- RS232 and RS485 serial outputs
- Modbus ASCII
- Analogue Output 4-20mA or 0-10V with 1/65,000 resolution (optional module)
- Isolated digital I/O (4 in/4 out) (optional module)
Both the R42x-K401 and K402 are suitable for integration into a PLC environment with their analogue output module and expandable I/O :
- Built-in RS232 serial communication
- Optional RS485 networking
- Precise Analogue Output Module
- Analogue Output 4-20mA or 0-10V with 1/65,000 resolution (optional module)
- Output isolated to resist system noise and interference therefore reducing unnecessary callouts
- Precise with a 400Hz (2.5msec) update rate
- Robust Input/Output Modules
- The indicator can be configured with up to 32 I/O. (optional modules)
- Direct connection between I/O points is supported.
- Outputs are isolated to resist system noise.
- These high side (400mA current source) drivers are capable of driving low voltage actuators directly or can be connected directly with PLC controllers.
The 1203 weight transmitter is an economical, robust instrument that provides fast and accurate weight readings with an onboard analogue output that makes it suitable for connecting to PLCs.
- RS232 and RS485 serial outputs
- 2 Isolated low side driver outputs and 1 isolated input
- Analogue Output Configurable (4-20mA, 0-24mA, 0-20mA, –10-10V, 0-10V, 2-10V, 0-5V, 1-5V) with 1/65,000 resolution
- 100Hz (10msec) update rate.
