S-Type Tension/Compression

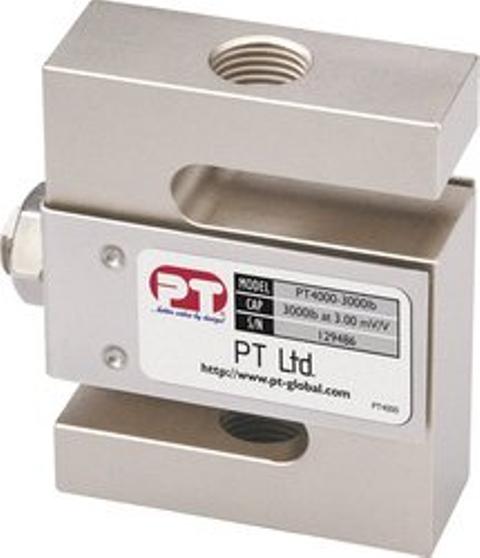

  • The PT4000 S-Type tension load cell is available in both metric and imperial capacities.
  • It has the largest capacity range of any of the PT load cells: 50lb to 20klb (UNF thread) in imperial and 20kg to 5t (Metric thread) in metric.
  • All capacities feature a 3mV/V output built into a rugged alloy tool steel design with low sensitivity to axial loads.

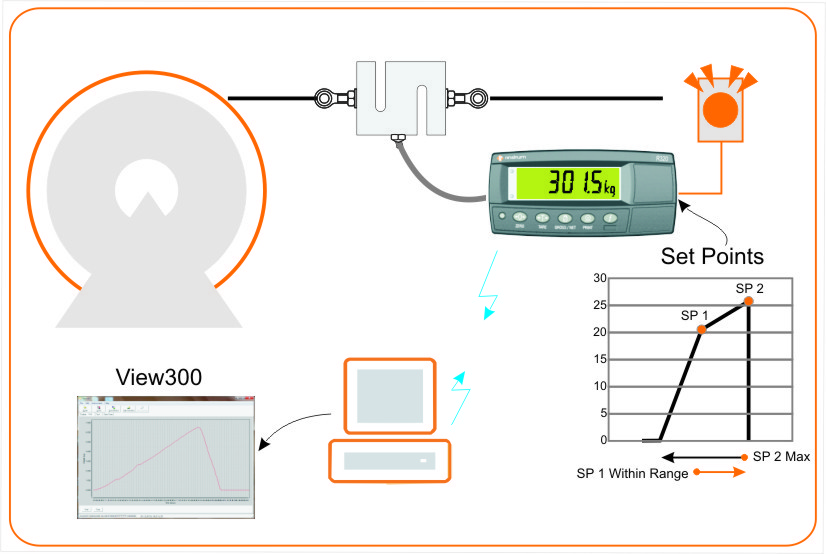

  • Ideal for mechanical scale conversions, material testing, bi-directional, level and inventory monitoring and a host of other applications.
  • Sealed to IP67 and accepting standard US/EEC fittings, the PT4000 comes with a full range of mounting accessories.
SKU: 1074 Category:

Description

Key Highlights & Features

  • 3mV/V output
  • IP67
  • Large Capcacity Range 20kg to 5t
  • Metric and Imperial

Product Description

  • The PT4000 S-Type tension load cell is available in both metric and imperial capacities.
  • It has the largest capacity range of any of the PT load cells: 50lb to 20klb (UNF thread) in imperial and 20kg to 5t (Metric thread) in metric.
  • All capacities feature a 3mV/V output built into a rugged alloy tool steel design with low sensitivity to axial loads.
  • Ideal for mechanical scale conversions, material testing, bi-directional, level and inventory monitoring and a host of other applications.
  • Sealed to IP67 and accepting standard US/EEC fittings, the PT4000 comes with a full range of mounting accessories.
