Remote Display – 7×5 Electromechanical Dot Matrix – D640

The D640 is an ALPHA-Numeric electromechanical remote display that is part of Rinstrum’s range of large remote that are built for industrial applications for both indoors and out. The range includes the D640, D740 and 6500, they feature:

  • Isolated RS232, RS485 and 20mA loop serial input;
  • 3 annunciators;
  • Shatterproof laminated glass window;
  • Compatibility with a wide range of indictors.

The meaningful display, with annunciators and numeric and alpha characters, and

the highly visible digits allow for precise reading across long distances in work sites.

The D640 features:

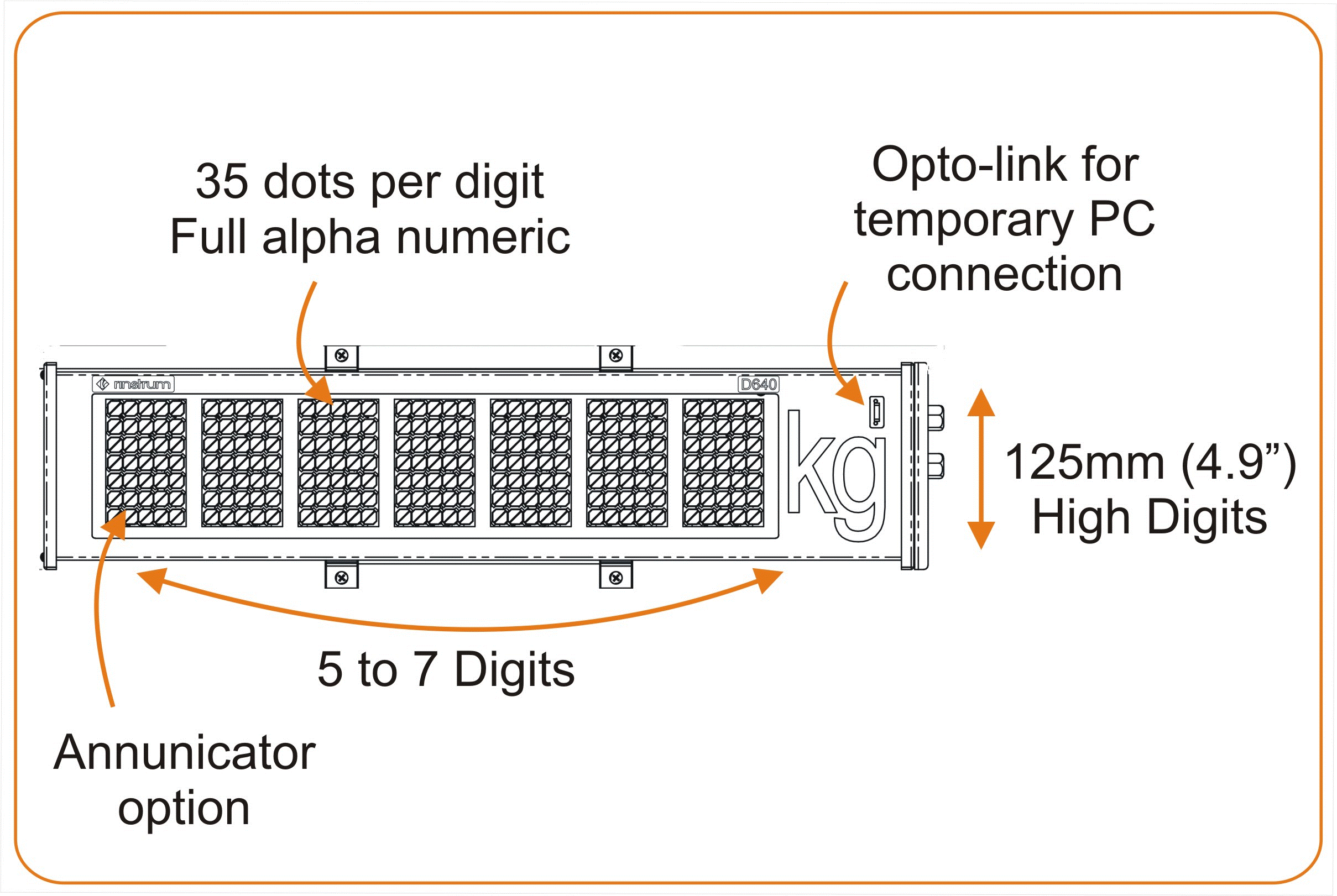

  • 125mm (4.9in) electromechanical flip-flop digits for easy reading under all lighting conditions at a range of angles.
  • 7×5 electromechanical dot matrix for each digit (35 dots per digit), allowing full alpha numeric characters to be displayed for even greater clarity.
  • Available in a variety of configurations from 5 to 7 digits
  • Easy firmware upgrades using the magnetically coupled infrared communications on the front pane
  • DC version, making it suitable for installation into DC environments directly
SKU: 1023 Category:

Description

Key Highlights & Features

  • 125mm Electromechanical dot matrix digits
  • Cross manufacturer compatability
  • Opto link on front panel for firmware upgrades

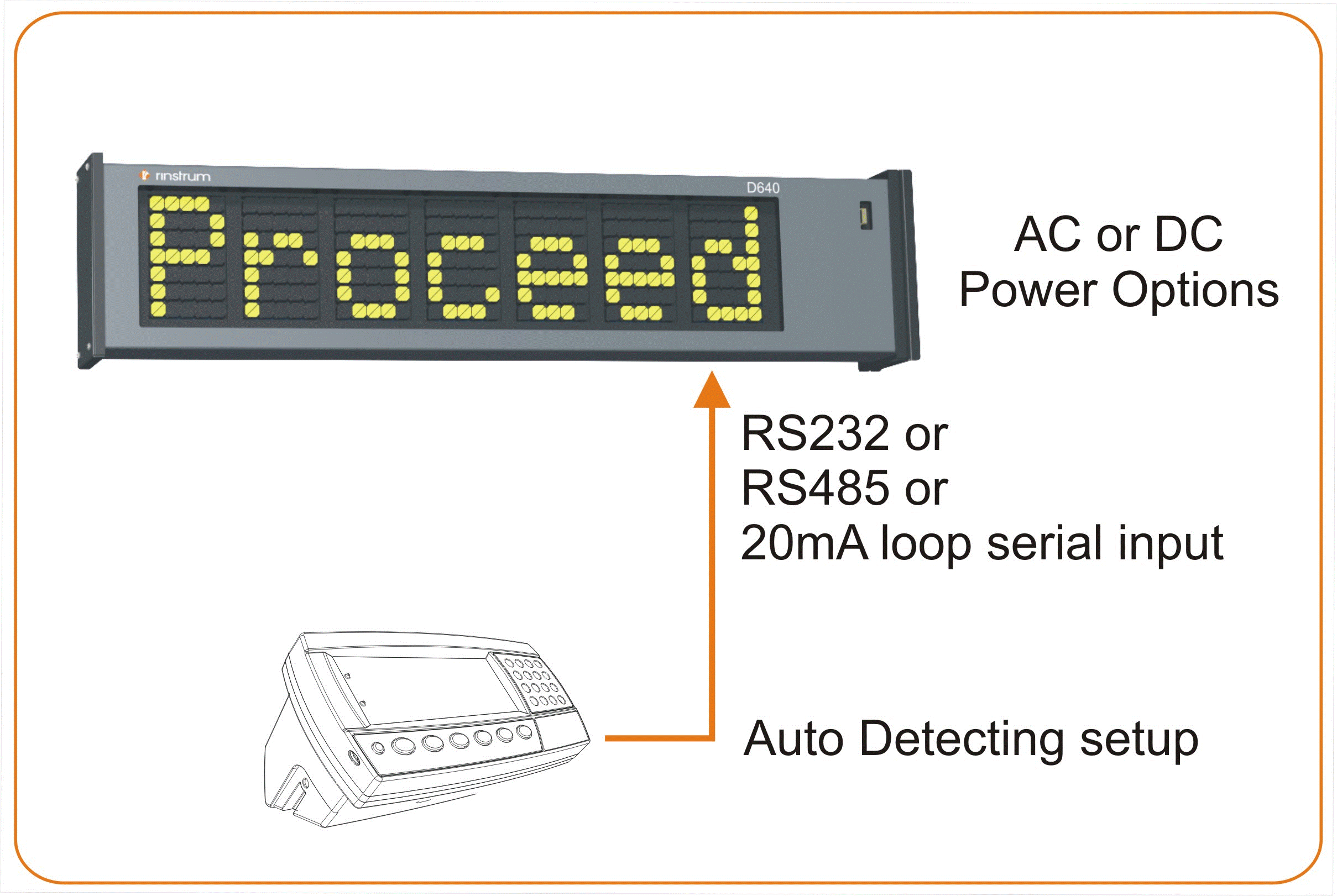

  • RS-232/485 & 20mA Serial Inputs
  • RS-232/485 & 20mA Serial Inputs
  • Shatterproof Glass Window
  • Status Annunciators

Product Description

The D640 is an ALPHA-Numeric electromechanical remote display that is part of Rinstrum's range of large remote that are built for industrial applications for both indoors and out. The range includes the D640, D740 and 6500, they feature:

  • Isolated RS232, RS485 and 20mA loop serial input;
  • 3 annunciators;
  • Shatterproof laminated glass window;
  • Compatibility with a wide range of indictors.

The meaningful display, with annunciators and numeric and alpha characters, and

the highly visible digits allow for precise reading across long distances in work sites.

The D640 features:

  • 125mm (4.9in) electromechanical flip-flop digits for easy reading under all lighting conditions at a range of angles.
  • 7x5 electromechanical dot matrix for each digit (35 dots per digit), allowing full alpha numeric characters to be displayed for even greater clarity.
  • Available in a variety of configurations from 5 to 7 digits
  • Easy firmware upgrades using the magnetically coupled infrared communications on the front pane
  • DC version, making it suitable for installation into DC environments directly

Smart Weighing

Tough Housings

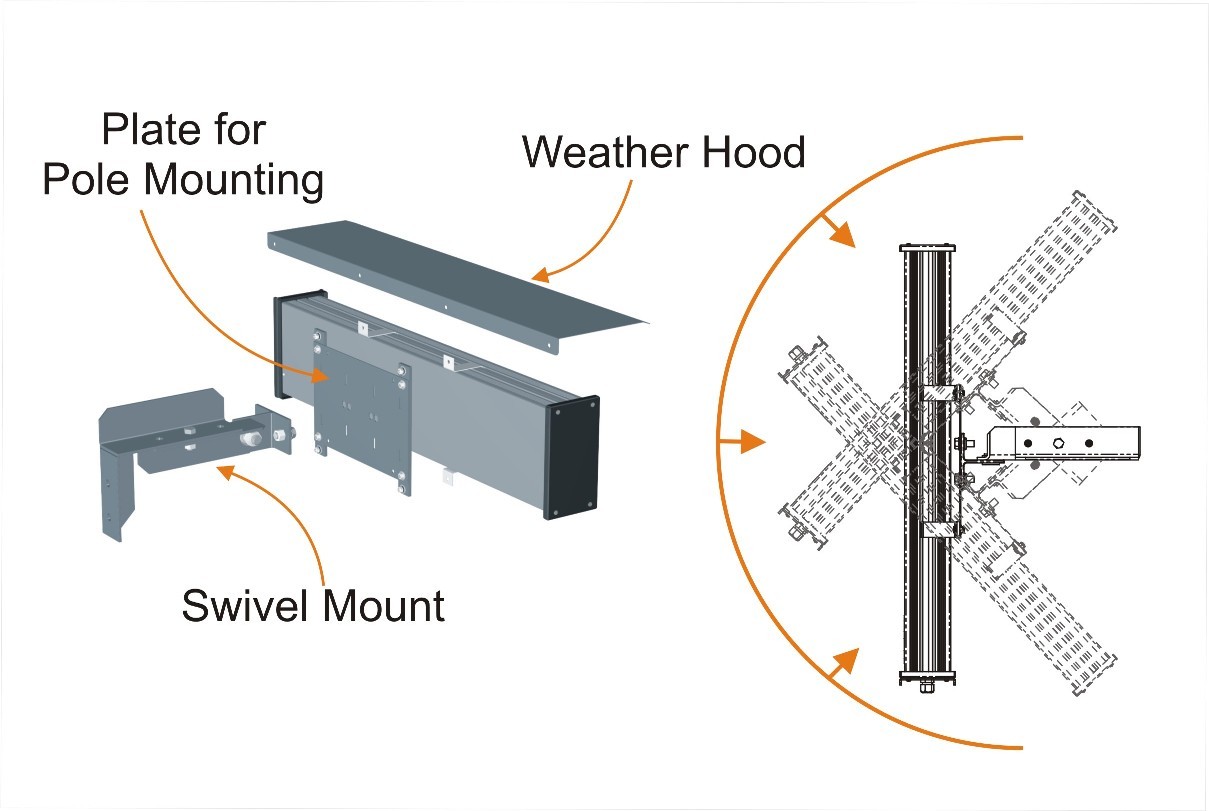

The housing are designed and built for industrial environments with accessories for versatile mounting.

  • Shatterproof laminated glass
  • Powder coated aluminum extrusion
  • Weatherhood
  • Swivel arm for directional wall or pole mounting

This combination of features ensures the displays will reliably work in rugged environments with reduced safety concerns and reduced risk of damage from weather or knocks.

..now that's smart weighing.



Product Downloads

The following files are available for download for the Remote Display - 7x5 Electromechanical Dot Matrix - D640. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.

To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.

If a save dialogue box does not appear, right click on the link and select save target as.

Files
