Product Description
A pressure transducer is a transducer that converts pressure into an analog electrical signal. Although there are various types of pressure transducers, one of the most common is the strain-gage base transducer. The conversion of pressure into an electrical signal is achieved by the physical deformation of strain gages which are bonded into the diaphragm of the pressure transducer and wired into a wheatstone bridge configuration. Pressure applied to the pressure transducer produces a deflection of the diaphragm which introduces strain to the gages. The strain will produce an electrical resistance change proportional to the pressure.
|
FYB25
Stainless Steel
5/60Mpa
G2
|
Suitable for precision measuring of all kinds of static states or the no-crystal liquid, gas and the high capacity pressure measurement that changes very slowly.
|
|
FYB26
Stainless Steel
5/60Mpa
G1
|
Suitable for precision measuring of all kinds of static states or the no-crystal liquid, gas and the high capacity pressure measurement that changes very slowly
|
|
YB1
Stainless Steel
1 / 20 Mpa
G1
|
Suitable for precision measuring of all kinds of static states or the no-crystal liquid, gas and the high capacity pressure measurement that changes very slowly.
|
|
YB14C
Stainless Steel
1 / 4 Mpa
G1
|
Suitable for precision measuring of all kinds of static states or the no-crystal liquid, gas and the high capacity pressure measurement that changes very slowly.
|
|
YB15
Stainless Steel
20 / 100 Mpa
G1
|
Suitable for precision measuring of all kinds of static states or the no-crystal liquid, gas and the high capacity pressure measurement that changes very slowly.
|
|
YB15A
Stainless Steel
20 / 50 Mpa
G1
|
Suitable for precision measuring of all kinds of static states or the no-crystal liquid, gas and the high capacity pressure measurement that changes very slowly.
|
|
YB6
Stainless Steel
20 / 60 Mpa
G1
|
Suitable for precision measuring of all kinds of static states or the no-crystal liquid, gas and the high capacity pressure measurement that changes very slowly.
|
|
YL15
Titanium
3 / 25 Mpa
G1
|
Suitable for precision measuring of all kinds of static states or the no-crystal liquid, gas and the high capacity pressure measurement that changes very slowly.
|
|
YT10
Titanium
0.6 / 20 Mpa
G1
|
Suitable for precision measuring of all kinds of static states or the no-crystal liquid, gas and the high capacity pressure measurement that changes very slowly.
|

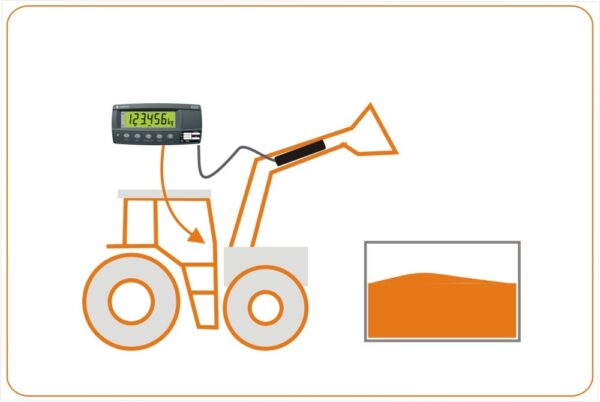

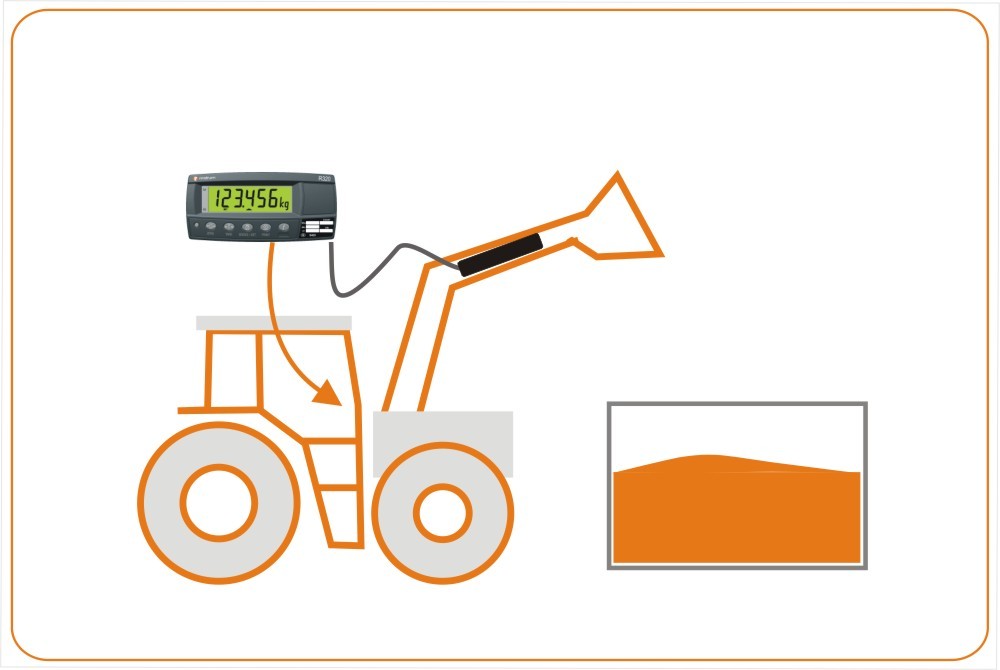

Smart Weighing
Fork Lift Scale
Fork Lift Kit
- R320 with IP65 waterproof boot and mounting bracket
- Two pre-wired cables and power fuse
- 5000 psi Pressure transducer stainless steel
Fork Lift Firmware
The fork lift application firmware is ideal for onboard weighing, retro fit and OEM forklift weighing applications. This special software is designed for small hydraulic forklifts or any vertical lifting hydraulic application. The weight is held when an accurate weight is found. This weight can be added to an overall weight total and printed.
...now that's smart weighing
Product Downloads
The following files are available for download for the Pressure Transducers. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.
To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.
If a save dialogue box does not appear, right click on the link and select save target as.
