Key Highlights & Features

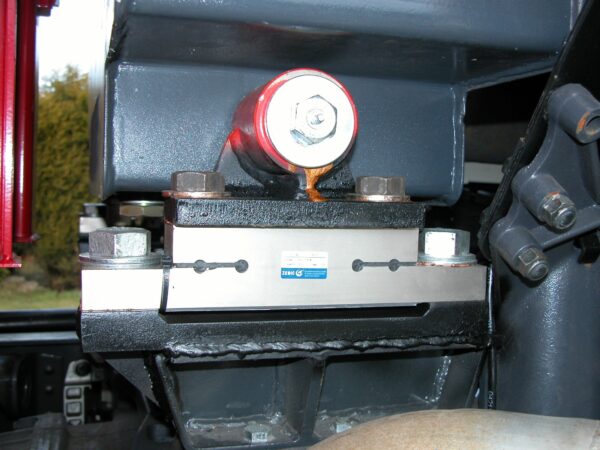

Zemic Onboard load cells
H10J 15t-30-31 Load Cell
Rinstrum Onboard Indicator (R400 Series K491)

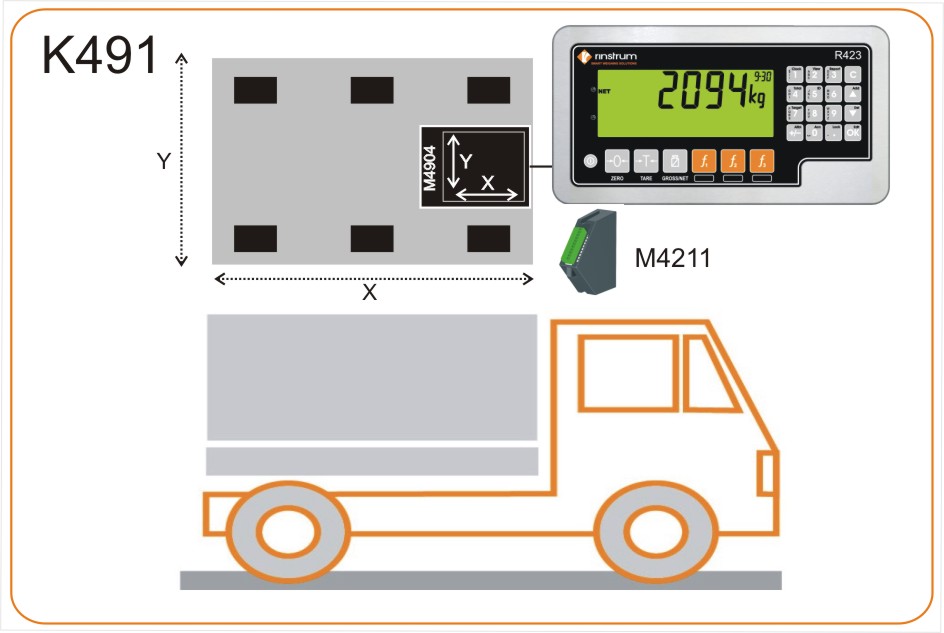

Rinstrum R400 Series indicator with K491 firmware incorporates tilt compensation that adjust the weight reading according to the angle using an input from a tile sensor.
- Tilt Module (M4211) on the R420-K491 indicator
- Rinstrum tilt sensor suitable for +/- 10 degree or +/-15 degrees (The tilt sensor must be correctly mounted given the axes that are providing data.)

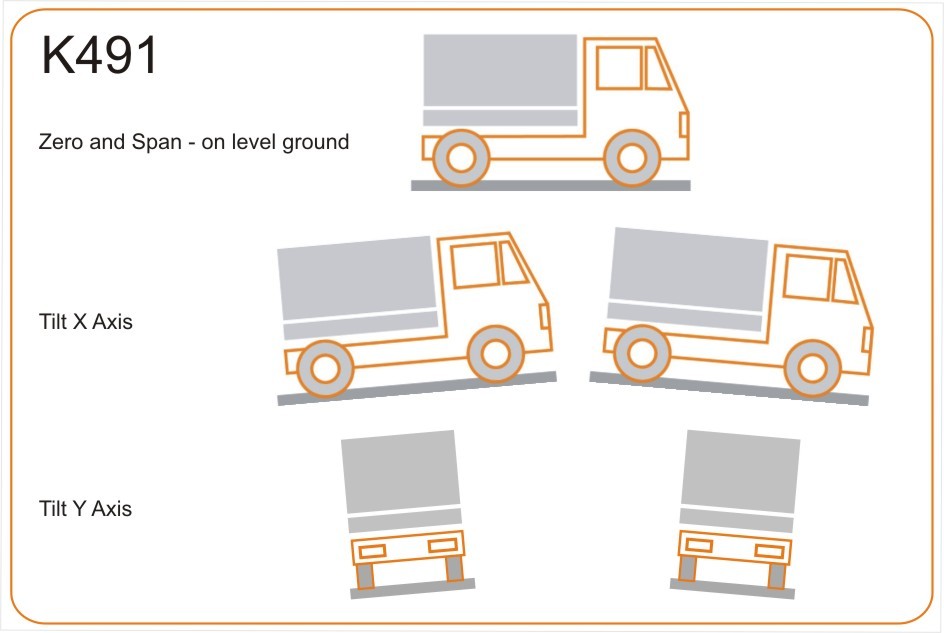

Simple three stage calibration
1. Zero Calibration (at 0 angle)
- Performed on level surface
- Tilt sensor is automatically set to 0
- Calibrates out any inaccuracies
2. Span Calibration (at 0 angle)
3. Tilt Calibration - this generates four tilt parameters that are used to correct the reading.
..now that's smart weighing.
