Double Ended Shear Beam Load Cells

Double Ended Shear Beam Load Cells

The double ended shear beam characteristics are similar to those of the single ended shear beam. It is most commonly used in truck scales and tank and hopper applications. Instead of being secured at one end and load applied to the other end as in the single ended shear beam, the double ended shear beam is secured at both ends and the load is applied to the center of the load cell.

Model Features Interchangeable with

(Direct compatibility is not guaranteed)

H9N nickel plated alloy steel dual shear beam load cell (25K-200K), NTEP approved* High accuracy.
Suitable for track and truck scales and other weighing devices.
Revere 5303, Tedea 4158, Celtron CLB, Sensortronics 65058, Coti CG 58, Rice Lake 75058
B9D stainless steel dual shear beam load cell (1K -75K)* High accuracy.
Suitable for truck scales.
Adhesive sealed construction.
*This is the range of loadcells provided. Please check your local authority approval.
SKU: 1094-1 Category:

Description

Key Highlights & Features

  • Stainless steel and alloy steel
  • Truck scales and tank and hopper applications.
  • Wide range of Mounts available

Product Description

The double ended shear beam characteristics are similar to those of the single ended shear beam. It is most commonly used in truck scales and tank and hopper applications. Instead of being secured at one end and load applied to the other end as in the single ended shear beam, the double ended shear beam is secured at both ends and the load is applied to the center of the load cell.

Model Features Interchangeable with

(Direct compatibility is not guaranteed)

H9N nickel plated alloy steel dual shear beam load cell (25K-200K), NTEP approved* High accuracy.
Suitable for track and truck scales and other weighing devices.
Revere 5303, Tedea 4158, Celtron CLB, Sensortronics 65058, Coti CG 58, Rice Lake 75058
B9D stainless steel dual shear beam load cell (1K -75K)* High accuracy.
Suitable for truck scales.
Adhesive sealed construction.
*This is the range of loadcells provided. Please check your local authority approval.

Smart Weighing

 R300 Series Indicator and Remote Display

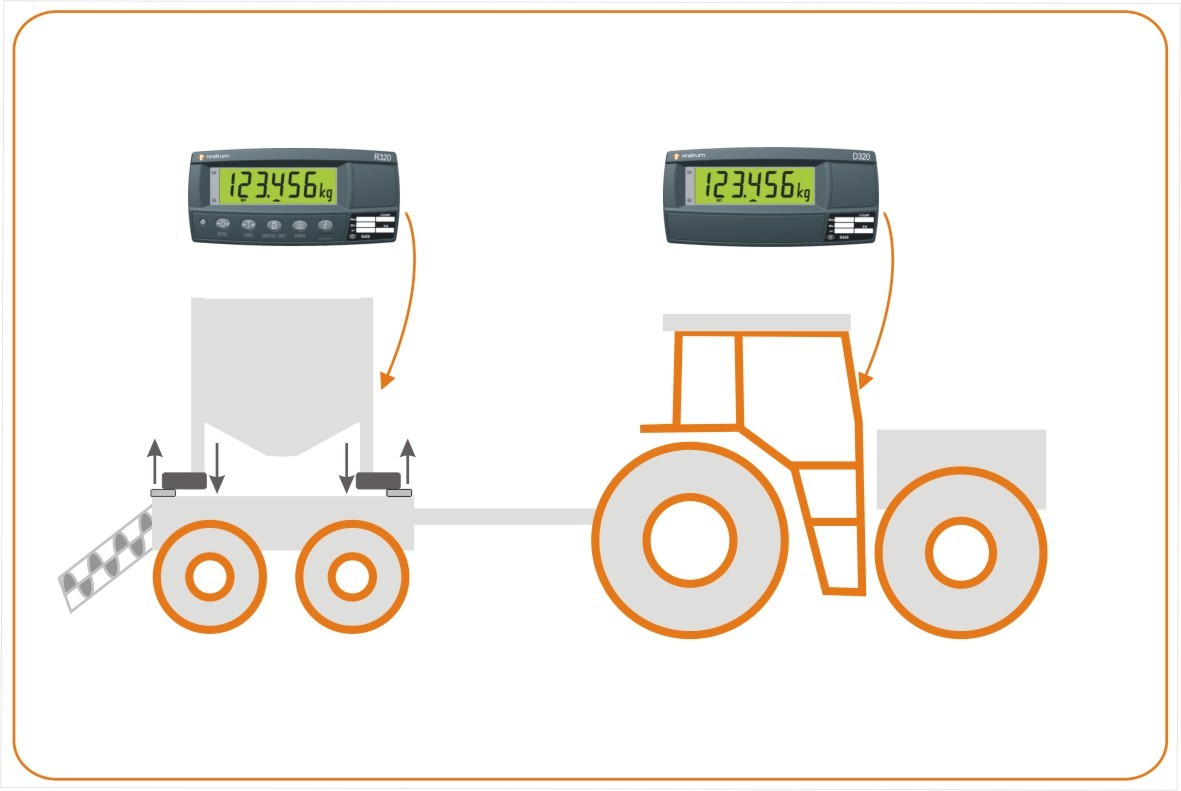

In this fertilizer spreader application the R320 indicator would be mounted on the trailer with the load cells weighing the product while a remote display in the cab of the tractor keeps the operator informed.

...now that's smart weighing
