Axle Weighing Scale

The Grate Weigh** is a robust self-contained platform scale for weighing individual axles to determine either by static weighing or in motion the gross vehicle mass. By measuring the combined axle loads it provides information on load distribution, axle loads, and total vehicle mass (independent of truck configuration).

This critical vehicle mass information is a vital link in the chain of responsibility requirements prior to entering public roads or weighbridges.

Grate Weigh** is designed in Australian to meet the latest standards and allow for fast installation. The unique design allows for the unit to be delivered to your site ready for installation. It doesn’t require complex footings, long curing times or long concrete approaches, saving on the hidden costs of installing traditional axle weighing systems or full length weighbridges.

The simple installation allows for portability, where the weighing sections can be moved to other sites as required. This is ideal for broad acre farmers to allow the unit to be moved between farms or for companies leasing sites. Flexibility in the design allows for combinations of steel and concrete sections depending on your needs for rural, resources sector or commercial trucking applications.

The basic kit allows for any number of axles on any truck configuration to be captured and printed, including axles and gross truck weight. A wide range of accessories are available including large digit remote displays, Ethernet or Bluetooth connectivity for transmission of weigh data or localised onboard data storage. External devices like solar panels, traffic lights, boom gates and remote cameras for security and load determination can interface to Grate Weigh.

** Patent Pending

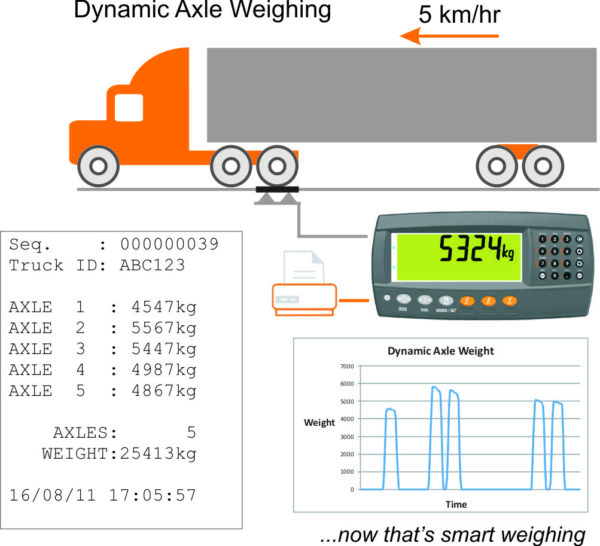

Dynamic or Static Weighing

SKU: 1086 Category:

Description

Key Highlights & Features

  • 15000kg x 20kg in standard configuration

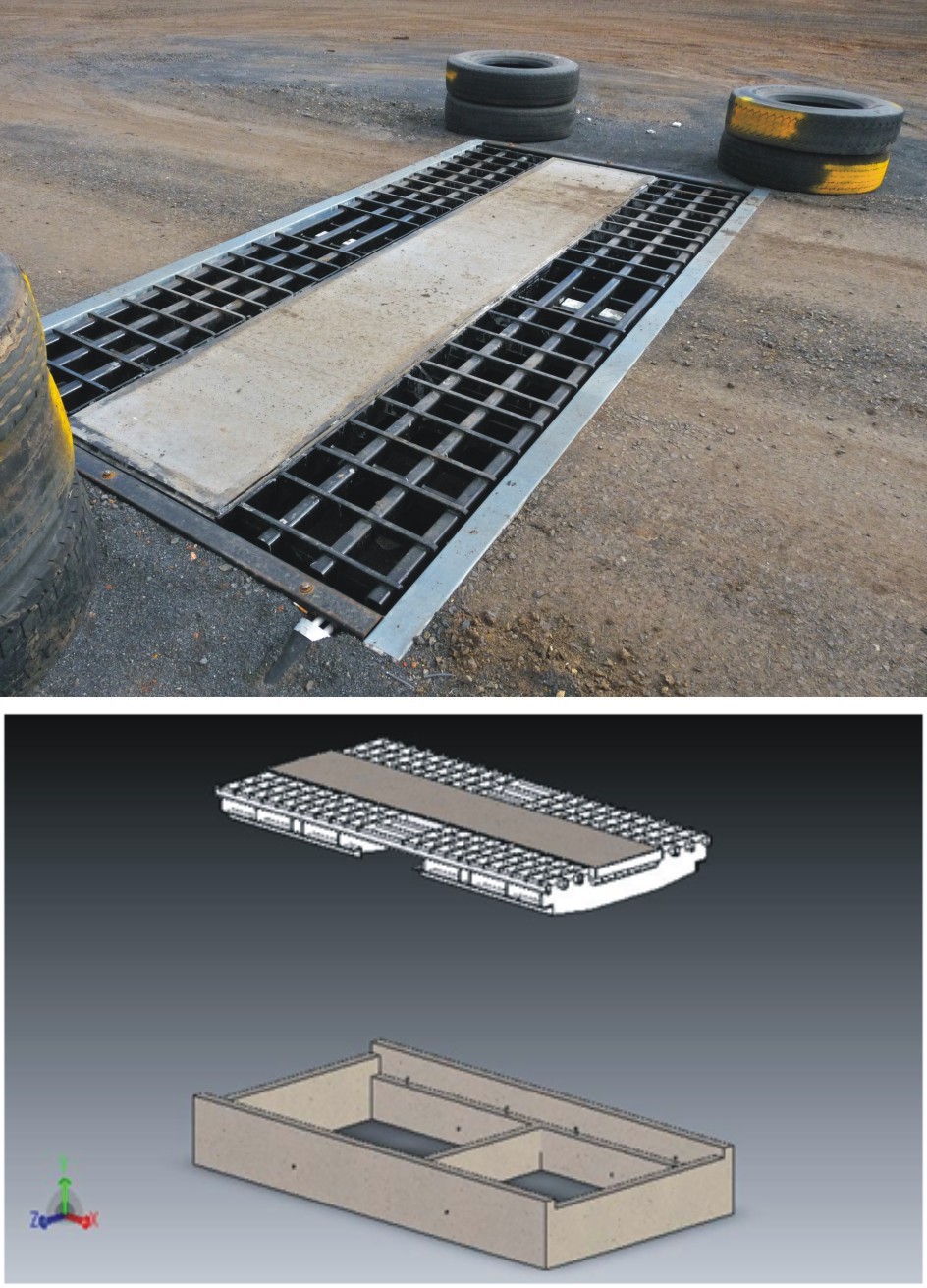

  • 3900 x 2070 self-contained concrete frame.
  • 4 x 10t + 150% overload protection IP68 S/S load cells with integral lift off protection.
  • Depending on site and approach conditions accuracy of 1% or better GVM at 5km/h
  • Load cells and indicator mounted out of the way of water and hazards.

Product Description

The Grate Weigh** is a robust self-contained platform scale for weighing individual axles to determine either by static weighing or in motion the gross vehicle mass. By measuring the combined axle loads it provides information on load distribution, axle loads, and total vehicle mass (independent of truck configuration).

This critical vehicle mass information is a vital link in the chain of responsibility requirements prior to entering public roads or weighbridges.

Grate Weigh** is designed in Australian to meet the latest standards and allow for fast installation. The unique design allows for the unit to be delivered to your site ready for installation. It doesn’t require complex footings, long curing times or long concrete approaches, saving on the hidden costs of installing traditional axle weighing systems or full length weighbridges.

The simple installation allows for portability, where the weighing sections can be moved to other sites as required. This is ideal for broad acre farmers to allow the unit to be moved between farms or for companies leasing sites. Flexibility in the design allows for combinations of steel and concrete sections depending on your needs for rural, resources sector or commercial trucking applications.

The basic kit allows for any number of axles on any truck configuration to be captured and printed, including axles and gross truck weight. A wide range of accessories are available including large digit remote displays, Ethernet or Bluetooth connectivity for transmission of weigh data or localised onboard data storage. External devices like solar panels, traffic lights, boom gates and remote cameras for security and load determination can interface to Grate Weigh.

** Patent Pending



Dynamic or Static Weighing

Smart Weighing

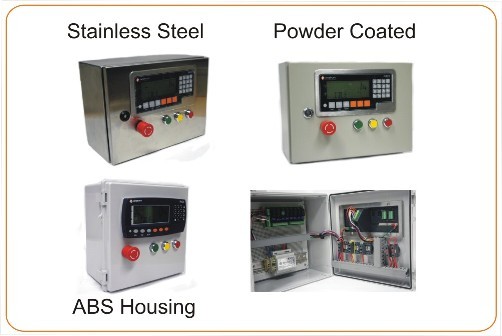

  • Choice of enclosure (ABS/powder coated/stainless steel) to house the weighing indicator (R420/R423).
  • Optional printer for driver manifests
  • Optional large digit remote display

...now that's smart weighing

Product Downloads

The following files are available for download for the Axle Weighing Scale. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.

To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.

If a save dialogue box does not appear, right click on the link and select save target as.

Files
